DUCTED REVERSE CYCLE REFRIGERATED AIR CONDITIONING
Page 12

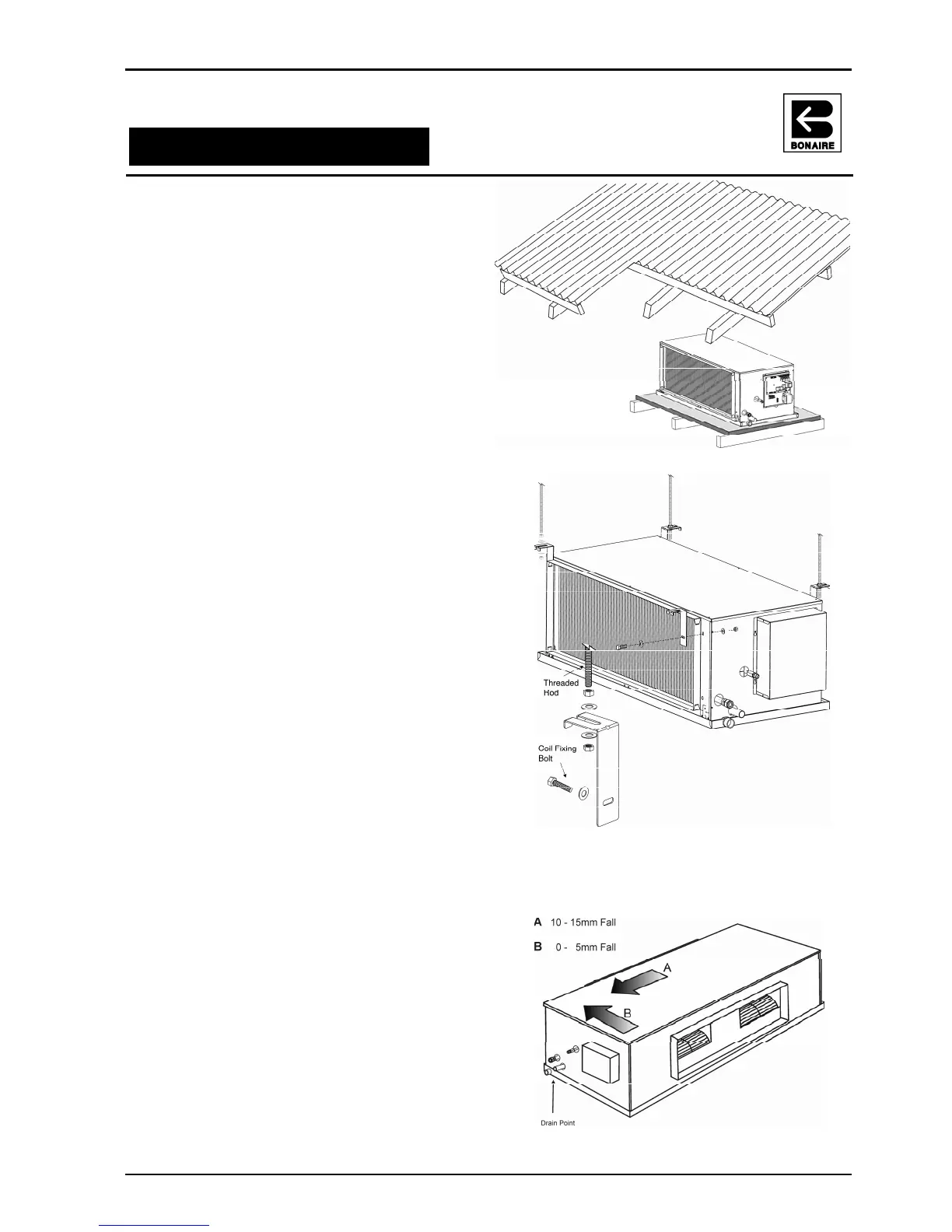

Unit Installation
Floor or Platform Mounting
1. Create a platform using bearers and
chipboard. Place the unit platform over load
bearing walls or on strategically located
trusses in the roof space.
2. Place serrated rubber pads or isolating
springs under each corner of the unit to
minimize / eliminate any noise transmission.
Suspension Mounting
Use the accessory kit – P/n 6601905 Hanging
Bracket Kit. For installation detailed see the
instructions supplied with this accessory kit.
1. Fasten the hanging brackets to the indoor coil.
2. Use field supplied threaded rod to suspend the
unit.
M10 or greater is recommended to brace the unit
mounting.
3. Fix the threaded rod to a structurally sound part of
the roof or concrete pad.
Check with local and national building codes and
or a structural engineer as to the fixing of the unit
or building support structure if applicable.
4. Secure the indoor fan unit to the threaded rods
ensuring all fasteners are secure and tight.
Failure to correctly secure the suspension
brackets and threaded rod to the indoor unit
could cause it to fall and inflict injury or damage.
Leveling the Unit
1. Adjust the level of the unit as required. The
drainpipe end of the unit must be lower by at
least 5mm for good drainage.
2. Take care not to damage the drain tubes or
coil when lifting to adjust unit level
3. For suspension mounting units, tighten the
locking nuts once the revised position is
determined.
