DUCTED REVERSE CYCLE REFRIGERATED AIR CONDITIONING
Page 25
Control Installation
Control Inst allation
BEFORE STARTING
Before attempting to use the setup instructions for the controls system, make sure the antenna (RF
units only) or the low voltage cable is connected, batteries have been correctly installed in the
remote control (RF units only) and the 240 or 415 volt power has been turned on to the product.
NOTE: Do not run the low voltage loom in long parallel runs with 240V mains cables.
Keep the low voltage loom 200mm away from any long runs of mains wiring.
Cross over mains wiring at right angles.
Do not use existing access holes in wall cavities where 240V mains wiring exists.
Drill a new access hole 200mm from the existing hole.
Installation

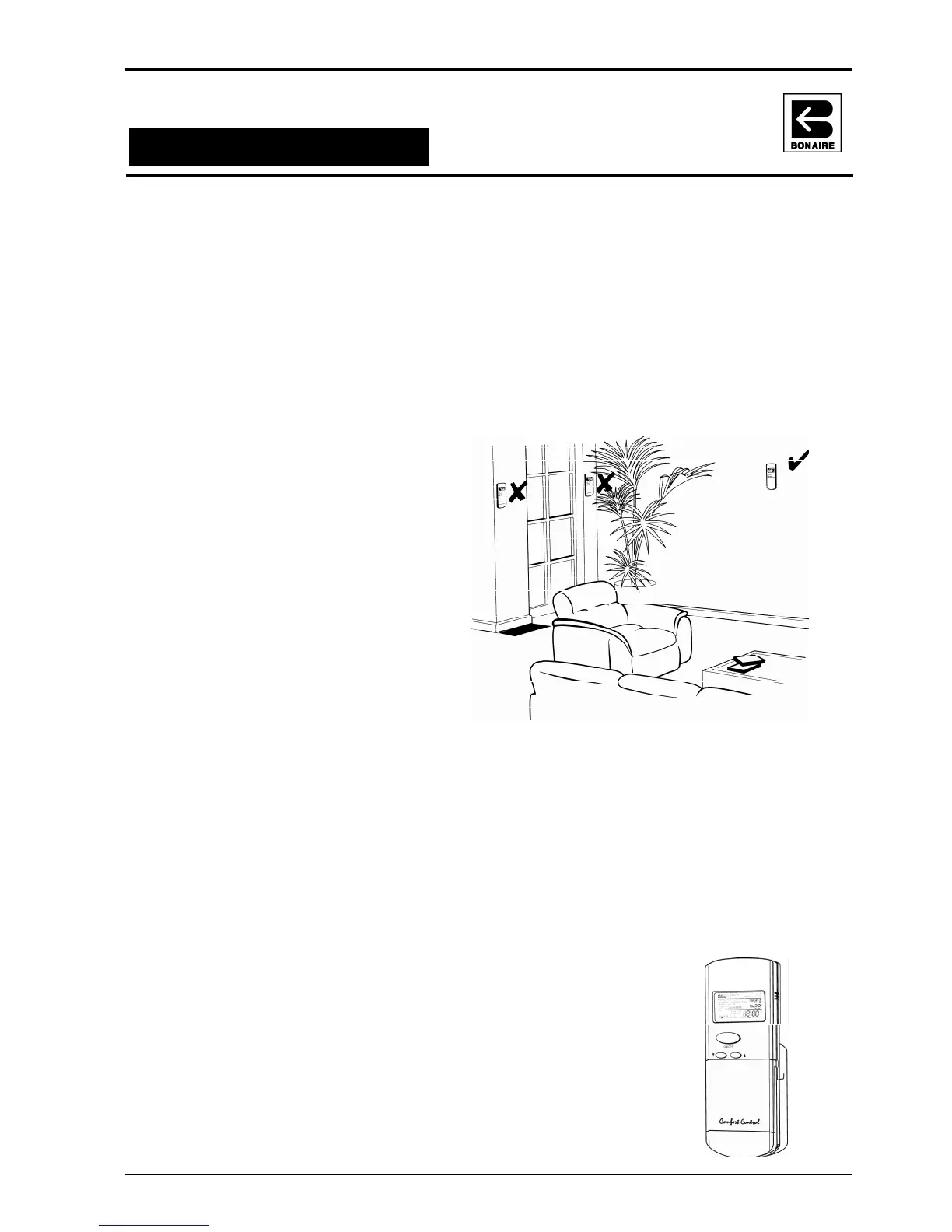

The thermostat must be installed
approximately 1.5 metres above the floor
level on a room wall which is most commonly
used for best average sensing. For best
operation do not locate it on an interior wall
that is influenced by the outside wall.
• Secure the Comfort Control cradle to the
wall using the screws and plugs
provided.
• For hard wired versions drill an access
hole in the wall to bring the cable
through the cradle into the thermostat.
Once connected place rear cover on the
thermostat and snap the control into the
cradle.
For radio frequency controls install batteries and slide the Comfort Control into the cradle. The
Comfort Control should remain in the cradle during normal operating conditions for optimum
temperature thermostat control.
Do not locate Comfort Control near concealed hot or cold water pipes, warm air ducts, radiators,
sunlight, televisions or draughts from hallways, stairways and fireplaces. These can all affect the
temperature.
RF Control Units ONLY, ensure the antenna has been installed at least 500 mm clear of all metal
masses. The transmissions between the RF thermostat Control and the unit control box are radio
signals which are subject to interference. The primary causes for signal interference are:
• Metal Construction buildings or metal masses near the antenna.
• Incorrect location of the antenna
• Cordless RF door bells
• Other Faulty appliances
• Remote Control too close to computers
• Powerful radio scanners
If transmission cannot be achieved successfully a Low voltage cable
control will need to be installed by the installer.
