BONFIGLIOLI ACTIVE Cube ACU 401-33 User Manual

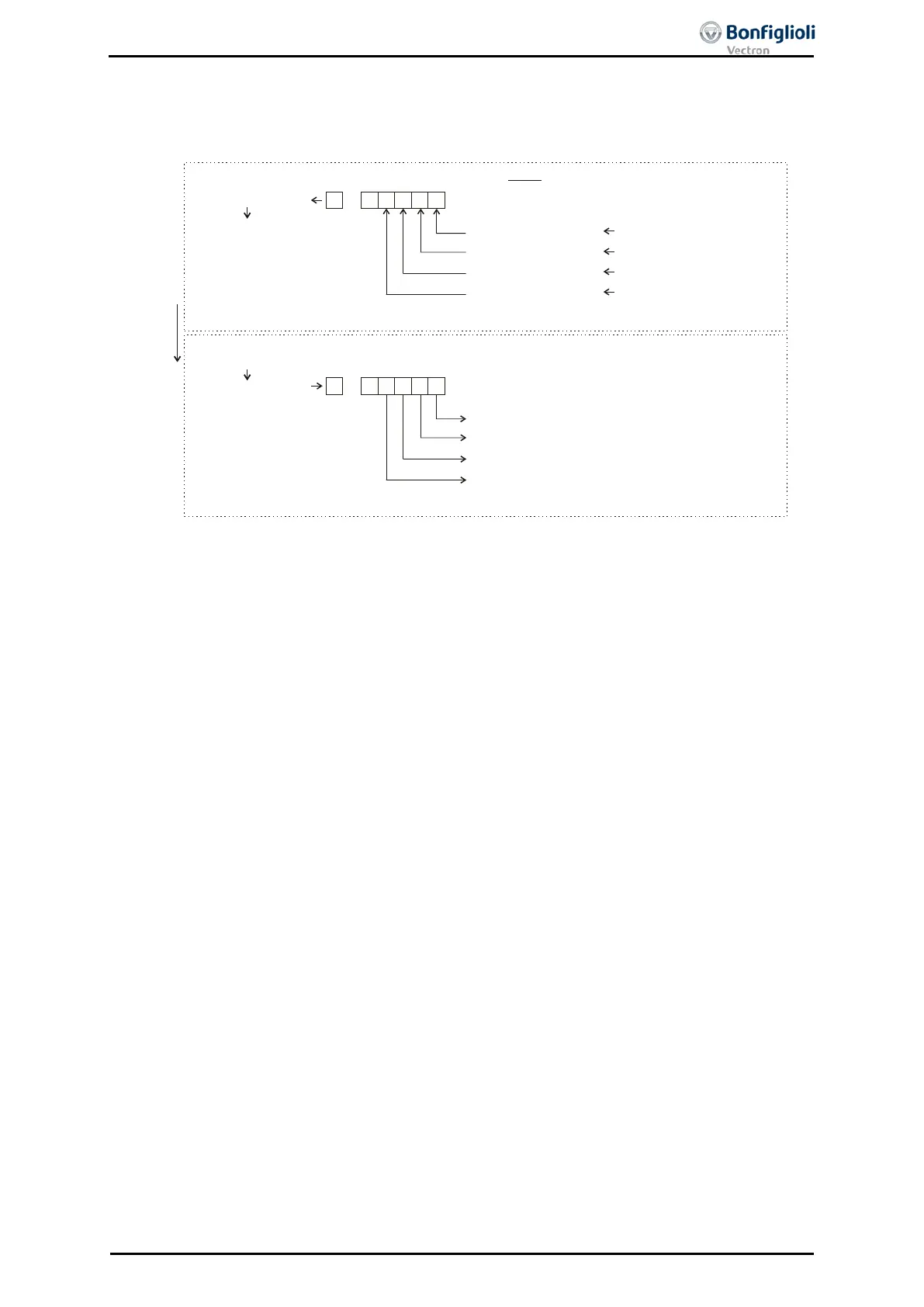

Example: Transfer of a user-defined status word from a slave to a master via sys-
tem bus or Profibus, parameterization of multiplexer and demultiplexer using PC ap-
plication VTable in VPlus
Settings on transmitter:
• In VPlus, start application VTable via the button bar.
• In VTable assign the required signal sources for sending to parameter Mux. in-
puts
1252
index 1 to index 16. (a setting for index 0 results in this setting being
taken over for all other indices.)
• Assign a TxPDO process data parameter of the system bus or a PZDx-
IN process
data parameter of Profibus to signal source “927 - Output MUX”.
Settings on receiver:
• Assign the corresponding RxPDO signal sources of the system bus or OUT-
PZD
signal sources of Profibus to parameter DeMux input 1253.
The transmitted signals are available at the receiver as signal sources 910 to 925.
User-defined Status word
160 - Standby message
(Standby message)
163 - Reference frequency reached
(Reference frequency reached)
169 - General warning
(General ) warning
162 - Error signal
(Error signal)
Parameter
/Index
Demultiplexer
Systembus:
TxPDO1 Word1 950
Mux input /1
1252
927 - MUX-Output
VTable
Profibus: PZD3_IN Word
1302
0
123415
0
123415
...
Systembus: 704 - RxPDO1 Word1
DeMux Input 1253
910 - Output DeMux Bit 0
911 - DeMux Bit 1
Output
912 - DeMux Bit 2Output
913 - DeMux Bit 3Output
925 - Output DeMux Bit 15
...
Further
Mux
1252 /2
input
Mux
1252 /3
input
Mux 1252 /4 input
...
Further
Profibus: 754 - OUT-PZD3 Word
Receiver
Systembus,
Profibus
Systembus,
Profibus
Transmitter
...
...
Multiplexer
Signal sources
Assign signal sources:
06/13 Operating Instructions ACU 207
