3.2 ACU 201 (4.0 to 9.2 kW) and 401 (5.5 to 15.0 kW)

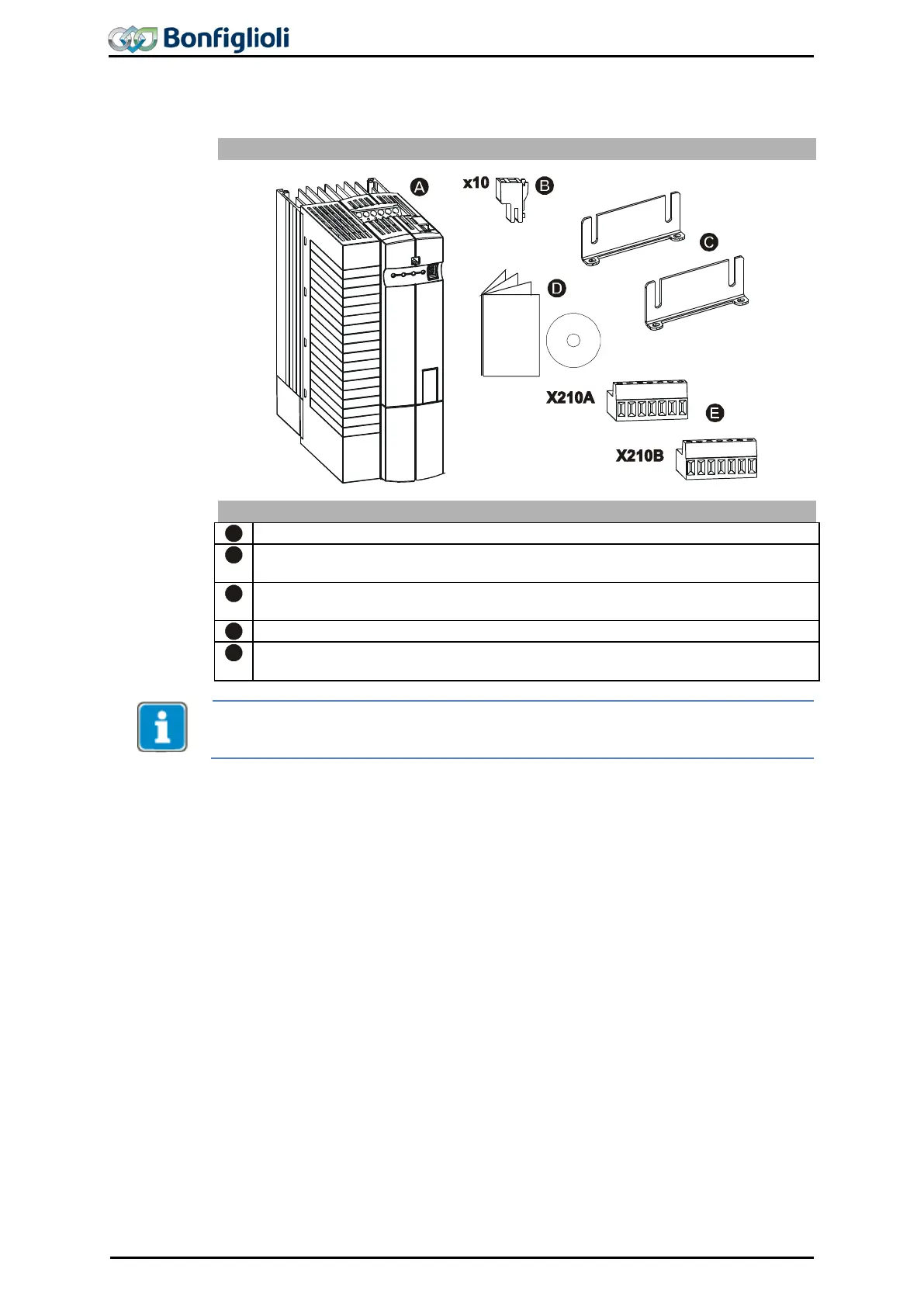

Scope of Supply
Scope of Supply
A
Frequency inverter
B
Terminal strip X10 (Phoenix ZEC 1.5/3ST5.0)
Plug-in terminals for the relay output
C
Standard fittings with fitting screws (M4x20, M4x60)
for vertical assembly
D
Brief Instructions and Operating Instructions on CD ROM
E
Control terminals X210A / X210B (Wieland DST85 / RM3.5)
Plug-in terminal for connection of the control signals
Please check incoming goods for quality, quantity and nature without delay. Obvious
defects such as exterior damage of the packing and/or the unit must be notified to the
sender within seven days for insurance reasons.
26 Operating Instructions ACU 06/13
