USER MENU
Keys
Sub-menu
Keys
Lines
Keys
Factory
settings
Field
1. HEATING
C
1. DHW setpoint
C
1. CH temperature/OTC set
C
75°C
20 - max.
absolute T. (*)
D B
D
2. Outside temperature for
CH off
C
OFF
OFF /
7 - 30°C
D
2. ECO setpoint reduction
C
---> --->
50°C 0 - 50°C
D
3. Scheduler set
C
1. Enable/disable scheduler
C
Enabled
Enabled/
disabled
D
2. Scheduler settings
C
Monday week days
2. DOMESTIC HOT
WATER
C
1. DHW setpoint
C
---> --->
80°C (**) 35 - 85°C
D B
D
2. ECO setpoint reduction
C
---> --->
20°C 0 - 50°C
D
3. Scheduler set
C
1. Enable/disable scheduler
C
Enabled
Enabled/
disabled
D
2. Scheduler settings
C
Monday week days
3. HOLIDAY
C
1. CH holiday setpoint
C
---> --->
20°C
20 - max.
absolute T. (*)
D B D
2. DHW holiday setpoint
C
---> --->
80°C (**) 30 - 85°C
4. MAINTENANCE
C
1. Contact info
C
---> --->
read only
D B D
2. Service due date
C
---> --->
read only

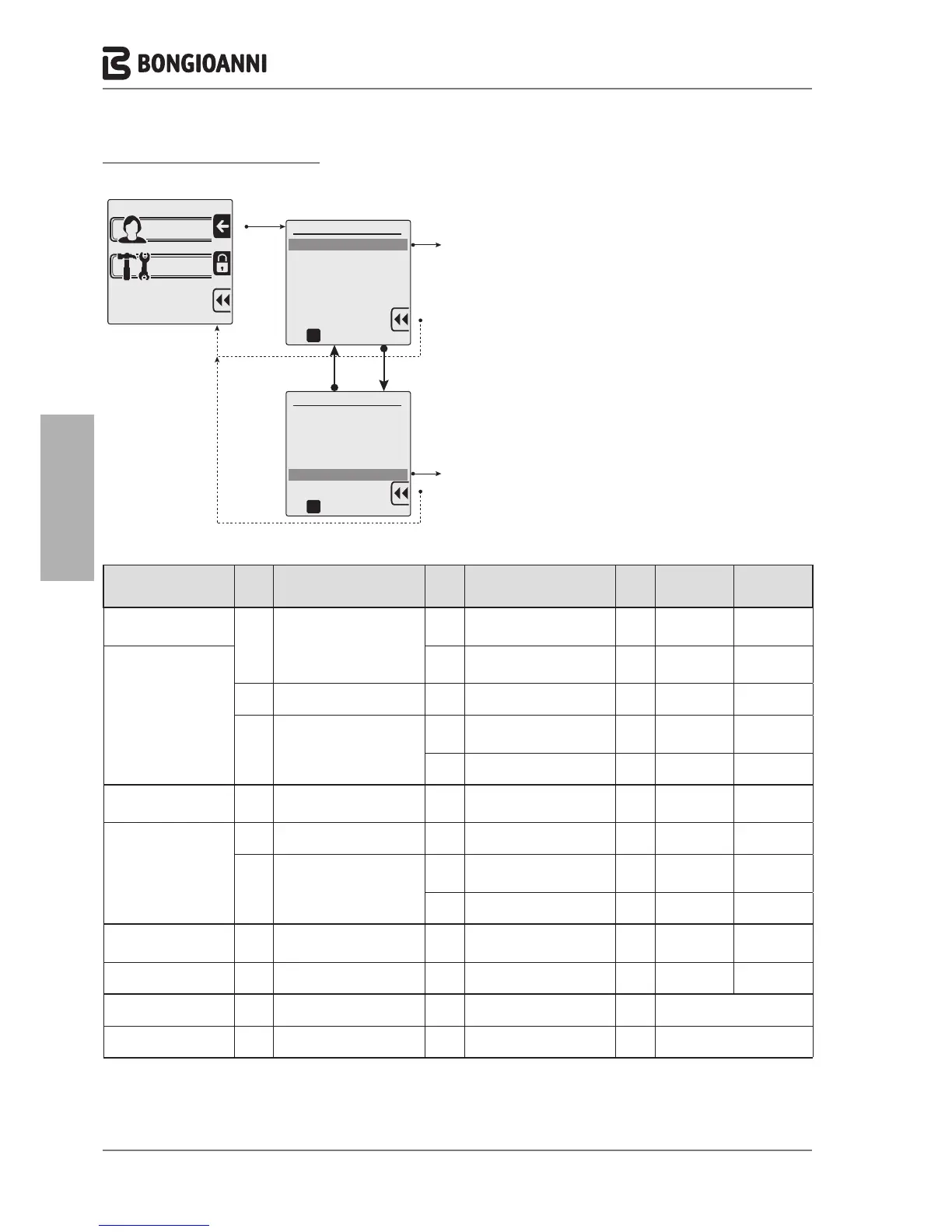

User menu navigation TREE
MENU
A
A
A
oK
A
oK
A
DB
C
C
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to confirm
User menu
1. HEATING
2. DOMESTIC HOT WATER
3. HOLIDAY
4. MAINTENANCE
5. SETTINGS
6. DIAGNOSTICS
to confirm
USER
TECHNICIAN
See
NAVIGATION
TREE
See
NAVIGATION
TREE
(*) Maximum absolute temperature set at point “1.2.1“ of the technician menu.
(**) - If “2.5 TYPE OF REQUEST“ of the Technician menu = “Contact” then “Factory setting” = 80°C with “Field” = 30 ÷ 85°C.
- If “2.5 TYPE OF REQUEST“ of the Technician menu = “Sensor” then “Factory setting” = 60°C with “Field” = 10 ÷ 65°C.
- 30 -
