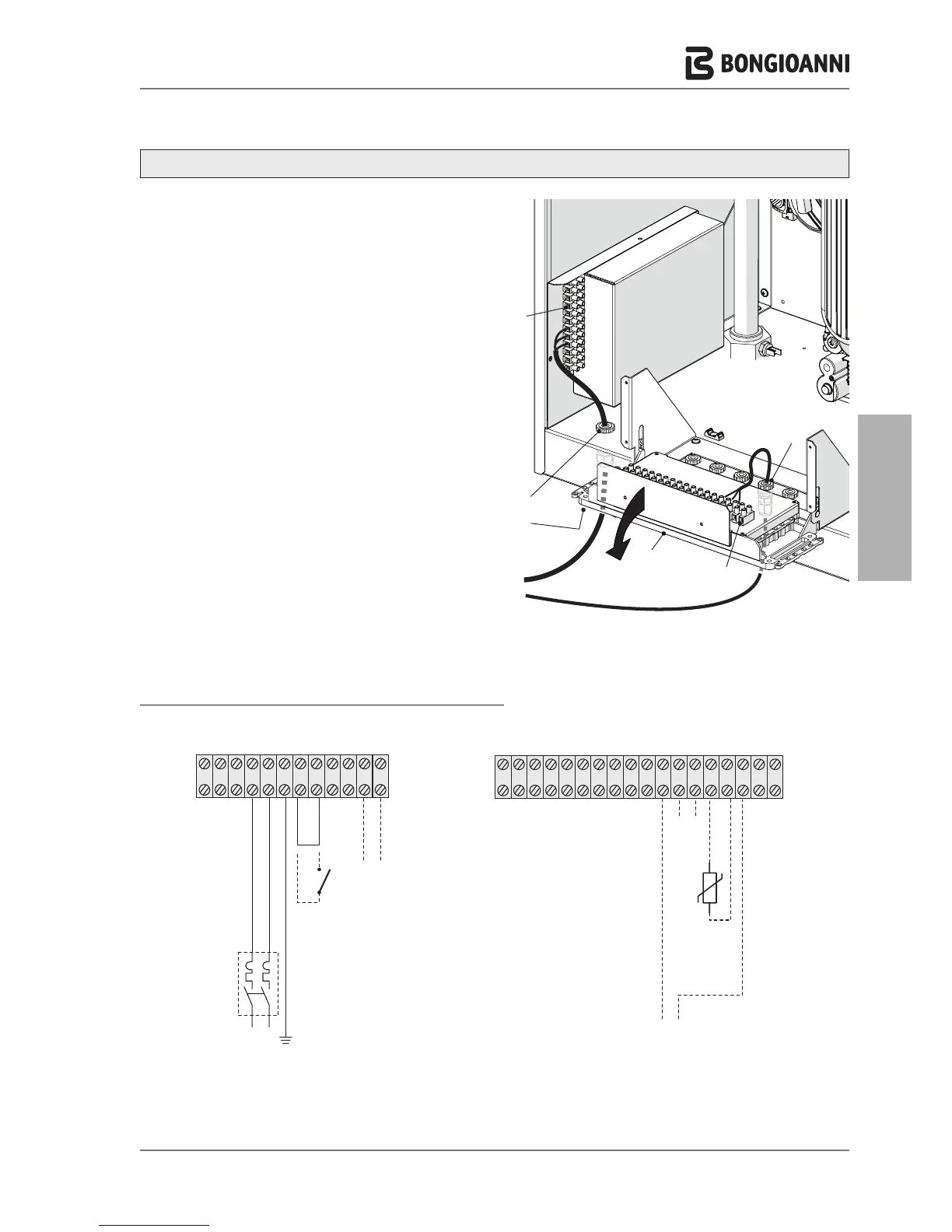

ELECTRICAL CONNECTIONS
Multidea Evo appliances require the connections shown
below, which must be made by the installer or other
professionally qualified personnel.
To access the boiler terminal boards:
- Remove the front panel of the casing
- Remove the four screws (1) and turn the control panel
(2) to enable access to the boiler terminal board (MC2).
Make connections to (MC2) inserting the cables in the
relative strain relief cable glands (3) at the base of the
boiler.
- Identify the boiler terminal board (MC1) and make the
connections inserting the cables in the relative strain
relief cable glands (4) at the base of the boiler.
After making all connections, refit the front cover.
