Outside sensor and climatic curve
When operation envisages the use of the outside sensor ("sliding temperature") the MAXIMUM and MINIMUM SUPPLY
TEMPERATURES MUST BE SET, AS WELL AS the outside temperature RANGE so that the appliance can calculate the
climatic curve on the basis of these settings.
The procedure is as follows:
- Enter the Technician Menu (see page 32)
- Enter “1. ADVANCED CH SETTINGS” and proceed to line “2. CH temperatures” (see page 33)
- Press
C
and check the existing values
- If these need to be modified, select and enter the relevant line to be modified
- Modify the value and press
C
to confirm.
- Press
A
Menù installatore
Inserire codice
2 3 1
conferma
Per selezionare
oK
- Select “3. OTC parameters"
- Press
C
and check the existing values
- If these need to be modified, select and enter the relevant line to be modified
- Modify the value and press
C
to confirm.
IMPORTANT
After setting/entering the optimal values, enter lines 4. OTC setpoint table and 5. OTC curve, to display the appliance
operating mode and make further corrections if necessary (it may be necessary to wait for around one minute to enable
the system to update all data).
- Press
A
Menù installatore
Inserire codice
2 3 1
conferma
Per selezionare
oK
to return to the initial line
- Select “6. DHW request type"
- Press
C
- Select “outside sensor” and press
C
to confirm.
The outside temperature can always be read on the initial display screen.

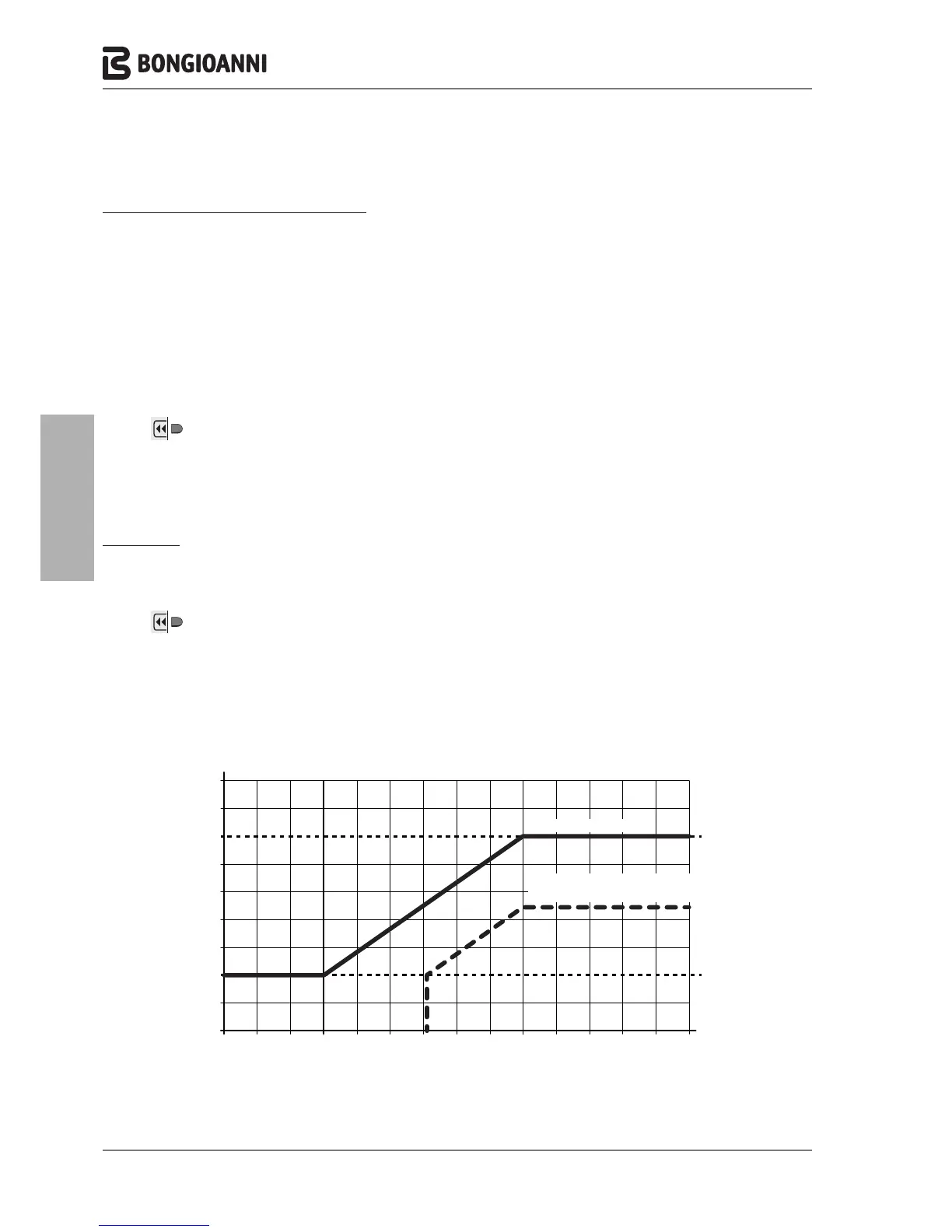

Supply temperature
Min
supply T
Max
supply T
Outdoor temperature
Max
outdoor T
Min
outdoor T
2030
20
30
40
50
60
70
80
90
°C
10 0 -10-20 -30°C
COMFORT curve
NIGHT-TIME REDUCTION
curve in ECO mode
