Bonnet Equator 6 Series User Manual

Page 12 3BE390691NM – 10/10
BONNET GRANDE CUISINE
Registered Office:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

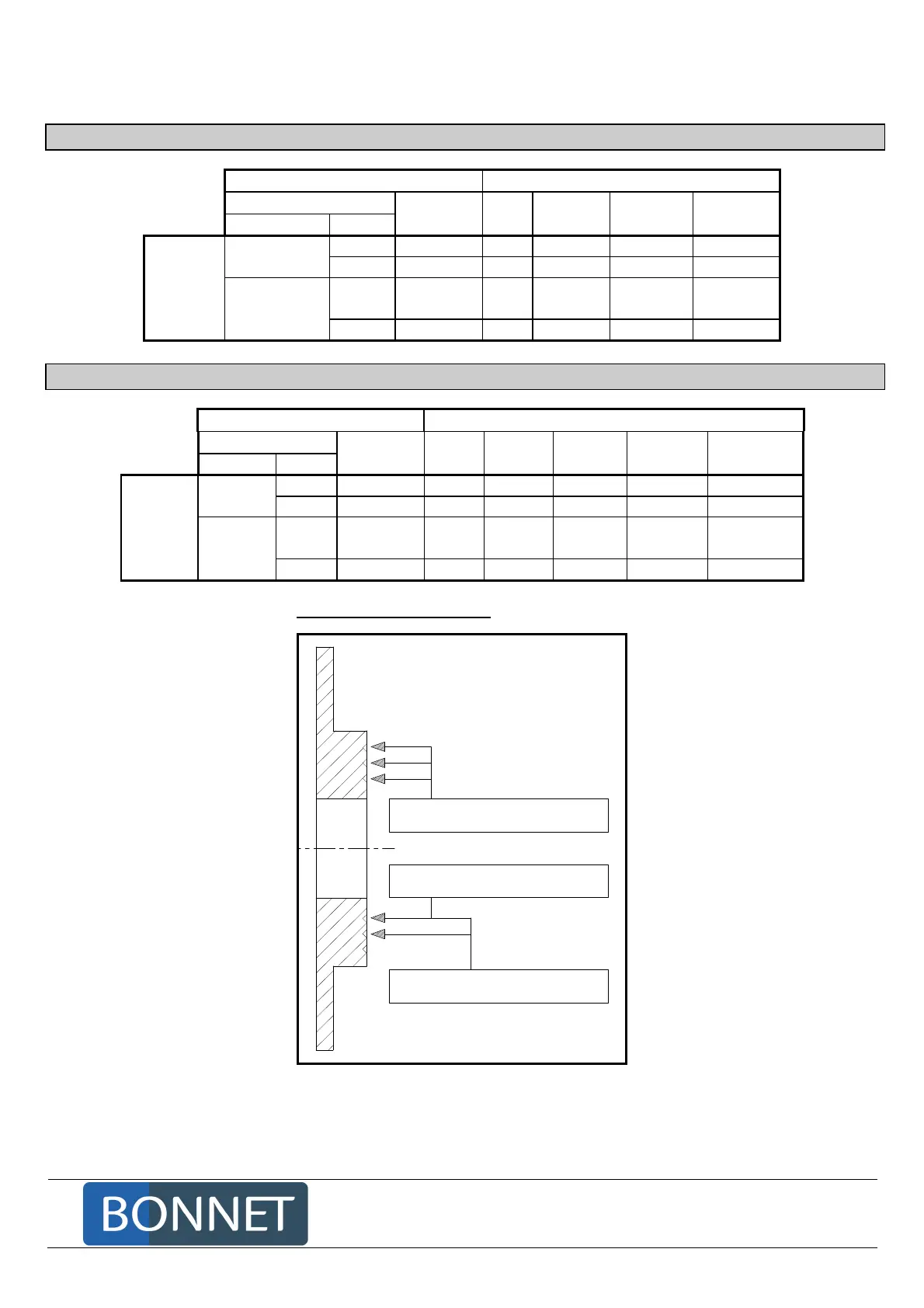

4.4.2 AFTER OCTOBER 6TH, 2010 : FROM N° P27516281C
6 and 10 level ovens
GASES NOZZLES
Designation Pressure Qty
∅
∅∅
∅
Code Marking
Family Type
(mbar)
(1/100
e
)
(stamped)
G20 20 1 6.1 368 890 0 groove Natural gas
G25 20 or 25 1 8.5 368 891 1 groove
G31 30 or 37
or 50
1 4.1 368 893 3 grooves
Burner
L.P.G
G30 30 or 50 1 3.75 368 892 2 grooves
20 level ovens
GASES INJECTEURS
Designation Pressure Qty Qty
∅
∅∅
∅
Code Marking
Family Type
(mbar)
dry steam (1/100
e
)
(stamped)
G20 20 2 1 6.1 368 890 0 groove Natural
gas
G25 20 ou 25 2 1 8.5 368 891 1 groove
G31 30 ou 37
ou 50
2 1 4.1 368 893 3 grooves
Burner
L.P.G
G30 30 ou 50 2 1 3.75 368 892 2 grooves
Identification of nozzles
1 groove on the nozzle Ø 8.5
2 grooves on the nozzle Ø 3.75
3 grooves on the nozzle Ø 4.1
