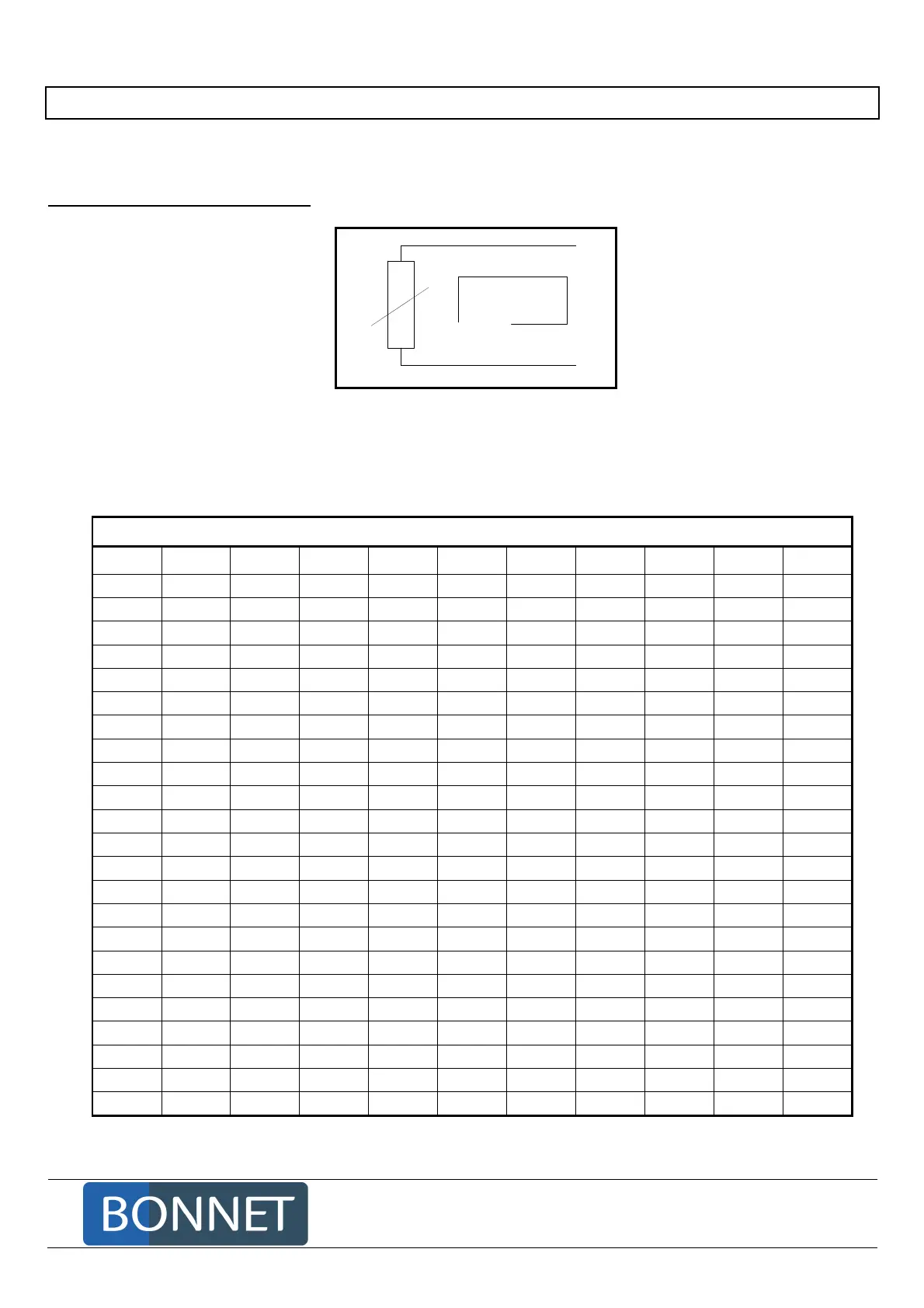

6. VERIFICATION OF TEMPERATURE SENSORS
PROBE PT100 (1 point for the capacity probe, 1 point for the core probe).
Component of the sensor PT100
PT100
Temperature sensor composed of a resistance sensor with the value of 100 ohms for a temperature of
0°, 138.5 ohms for a temperature of 100°. The varia tion of the resistance depending on the temperature is
linear. The reading of the resistance gives directly the measured temperature. The sensor is not polarised.
The sensor is lengthened by a copper wire.
Correspondence of Temperature in °C and Resistance in Ω
ΩΩ
Ω for PT100 sensor
°C 0 1 2 3 4 5 6 7 8 9
0
100.00
100.39
100.78
101.17
101.56
101.95
102.34
102.73
103.12
103.51
10
103.90
104.29
104.68
105.07
105.46
105.85
106.24
106.63
107.02
107.4
20
107.79
108.18
108.57
108.96
109.35
109.73
110.12
110.51
110.90
111.28
30
111.67
112.06
112.45
112.83
113.22
113.61
113.99
114.38
114.77
115.15
40
115.54
115.93
116.31
116.70
117.08
117.47
117.85
118.24
118.62
119.01
50
119.40
119.78
120.16
120.55
120.93
121.32
121.70
122.09
122.47
122.86
60
123.24
123.62
124.01
124.39
124.77
125.16
125.54
125.92
126.31
126.69
70
127.07
127.45
127.84
128.22
128.60
128.98
129.37
129.75
130.13
130.51
80
130.89
131.27
131.66
132.04
132.42
132.80
133.18
133.56
133.94
134.32
90
134.70
135.08
135.46
135.84
136.22
136.60
136.98
137.36
137.74
138.12
100
138.50
138.88
139.26
139.64
140.02
140.39
140.77
141.15
141.53
141.91
110
142.29
142.66
143.04
143.42
143.80
144.17
144.55
144.93
145.31
145.68
120
146.06
146.44
146.81
147.19
147.57
147.94
148.32
148.70
149.07
149.45
130
149.82
150.20
150.57
150.95
151.33
151.70
152.08
152.45
152.83
153.20
140
153.58
153.95
154.32
154.70
155.07
155.45
155.82
156.19
156.57
156.94
150
157.31
157.69
158.06
158.43
158.81
159.18
159.55
159.93
160.30
160.67
160
161.04
161.42
161.79
162.16
162.53
162.90
163.27
163.65
164.02
164.39
170
164.76
165.13
165.50
165.87
166.24
166.61
166.98
167.35
167.72
168.09
180
168.46
168.83
169.20
169.57
169.94
170.31
170.68
171.05
171.42
171.79
190
172.16
172.53
172.90
173.26
173.63
174.00
174.37
174.74
175.10
175.47
200
175.84
176.21
176.57
176.94
177.31
177.68
178.04
178.41
178.78
179.14
210
179.51
179.88
180.24
180.61
180.97
181.34
181.71
182.07
182.44
182.80
220
183.17
183.53
183.90
184.26
184.63
184.99
185.36
185.72
186.09
186.45
