Installation instructions
The installation comes under the exclusive res-
ponsibility of specialists.
The installer is held to respect the legislation
and the standards enforce in his home country.
How to stick the gasket:
The gasket supplied with the hob avoids all infil-
trationofliquidsinthecabinet.

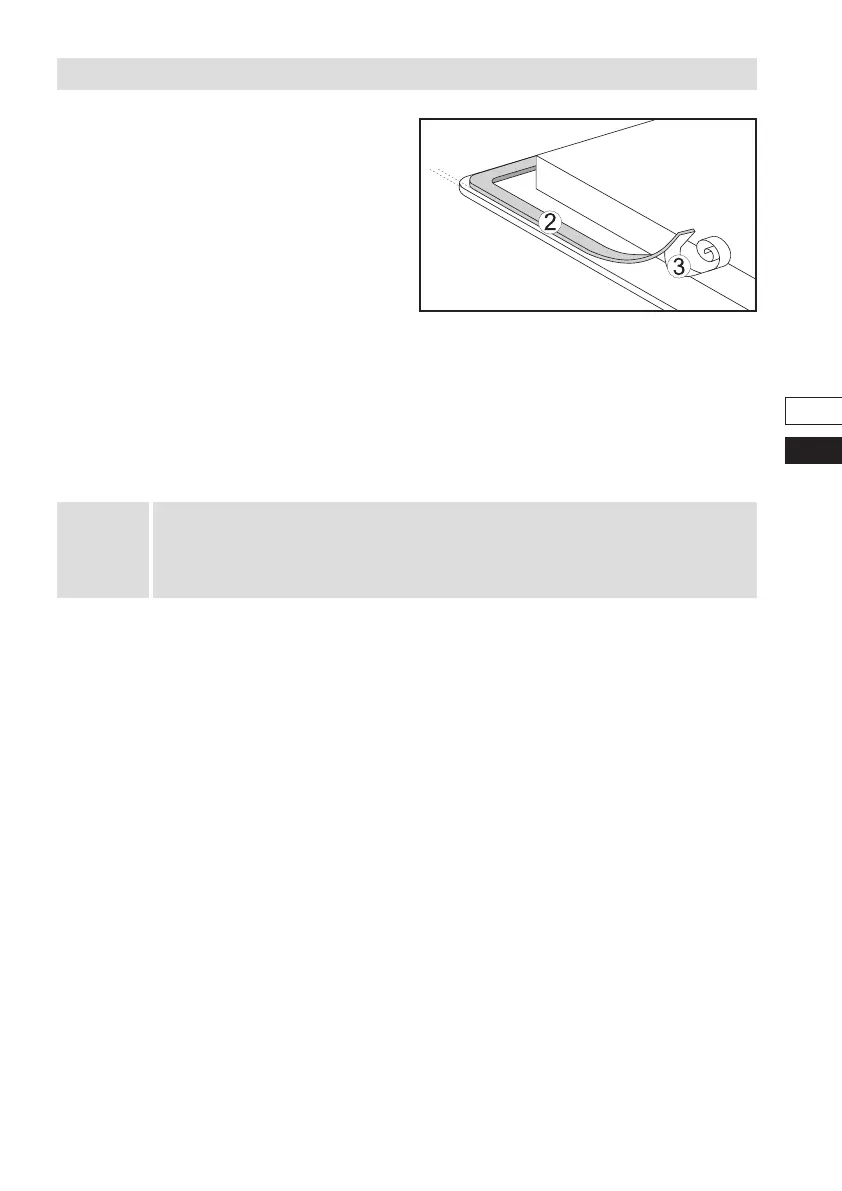

His installation has to be done carefully, in con-
formity of the following drawing. Stick the gasket (2) two millimeters from the
external edge of the glass, after removing the
protection sheet (3).
2 mm
Fitting - installing:
•Thecutoutsizesare:
• Ensurethatthere is a distance of 50 mm
between the hob and the wall or sides.
• Thehobsareclassiedas“Y”classforheat
protection. Ideally the hob should be instal-
led with plenty of space on either side. There
may be a wall at the rear and tall units or a
wall at one side. On the other side, however,
no unit or divider must stand higher than the
hob.
• Thepieceoffurnitureorthesupportinwhich
the hob is to be fitted, as well as the edges
of furniture, the laminate coatings and the
glue used to fix them, must be able to resist
temperaturesofupto100°C.
• Themuralrodsofedgemustbeheat-resi-
sting.
• Nottoinstallthehobtothetopofanotven-
tilated oven or a dishwasher.
• To guaranteeunder the bottom of thehob
casing a space of 20 mm to ensure a good
air circulation of the electronic device.
• Ifadrawerisplacedunderthework,avoidto
putintothisdrawerammableobjects
(for example: sprays) or not heat-resistant
objects.
• Materials which are often used to make
worktops expand on contact with water. To
protect the cut out edge, apply a coat of
varnish or special sealant. Particular care
mustbegiventoapplyingtheadhesivejoint
supplied with the hob to prevent any leakage
into the supporting furniture. This gasket
guaranties a correct seal when used in con-
junctionwithsmoothworktopsurfaces.
• Thesafetygapbetweenthehobandthecoo-
ker hood placed above must respect the indi-
cations of the hood manufacturer. In case of
absence of instructions respect a distance
minimumof760mm.
• Theconnectioncordshouldbesubjected,af-
ter building, with no mechanical constraint,
such for example of the fact of the drawer.
Reference Cut-size
BIKP-78 750x490mm 
