Installation 41/68
RE 92003-01-B/12.2015, A4VG Series 32, Bosch Rexroth AG
1
1
2
2
2
3

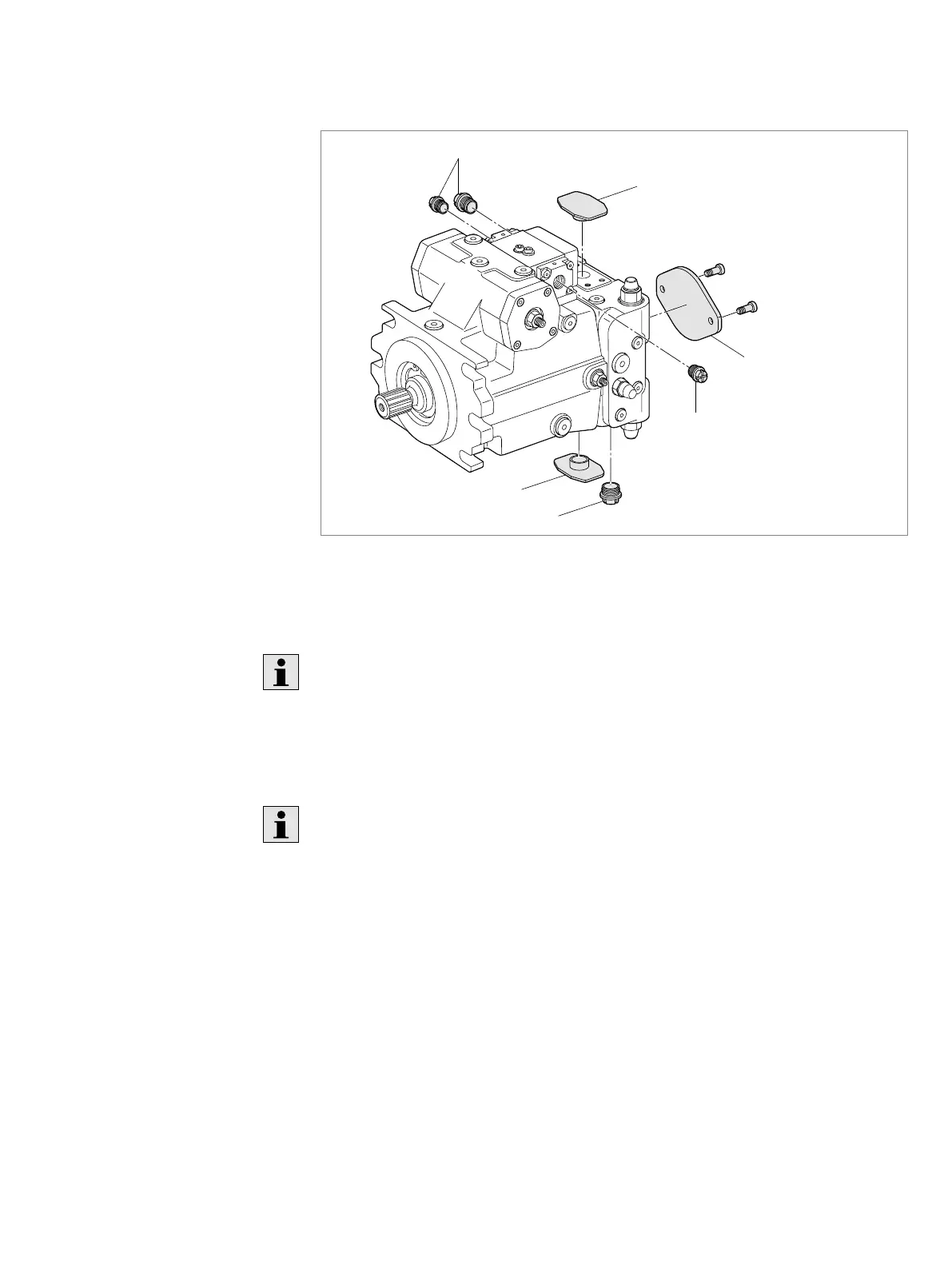

Fig. 13: Removing transport protection
1 Protective covers
2 Protective plugs/threaded plugs
3 For version with through drive, metallic
protection cover and mounting bolts
Ports intended for connecting lines are provided with protective plugs or
threaded plugs, which serve as transport protection. All ports required for
functional operation must be connected (see Table 10 “Ports A4VG Series 32” on
page45). Failure to do so could lead to malfunctions or damage. If a port is not
connected, it must be plugged with a threaded plug because protection plugs are
not pressure-resistant.
Setting screws are protected against unauthorized resetting by means of tamper-
proof caps. Removal of the tamper-proof caps will void the warranty. If you need
to change the settings, contact your responsible BoschRexrothService partner
(for address, see Chapter10.5 “Spare parts” on page56).
3. For versions with through drive, assemble the auxiliary pump according to the
pump manufacturer's instructions.
