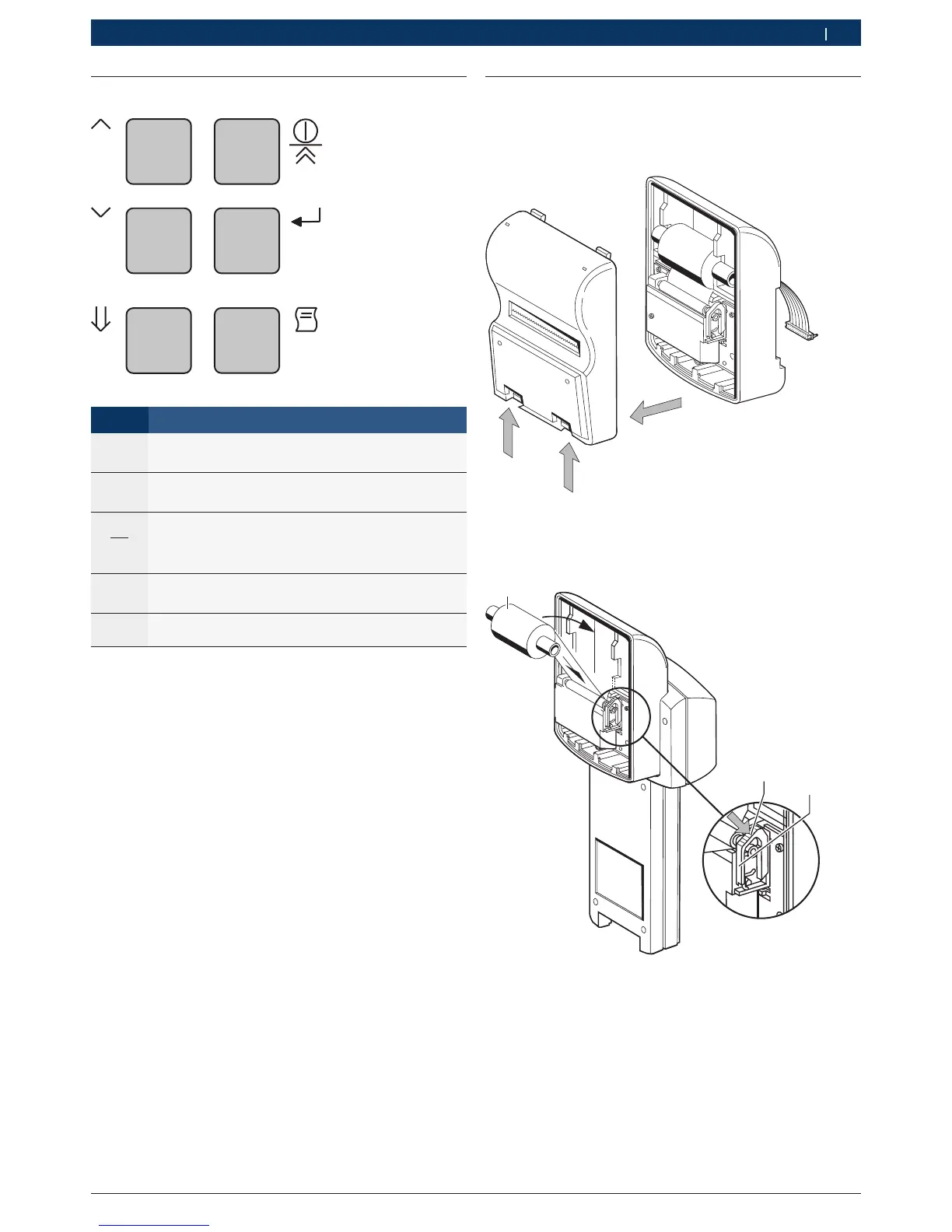

3.4 Functions of the keys
45100024
Keys Functions


Change a parameter in a row,
or a selection of a row.

Row selection, one Character to right (in the dealer
address menu).

O
Tester ON / OFF, or a higher menu level in the pro-
gramme (the key has to be depressed for 3 seconds
before switching the tester off).
E
Enter key for transferring selected
parameters, and for test start.
D
Print (print rate depends on the battery voltagest ).
3.5 Inserting paper in the printer module
1. Open the printer module at the points indicated in
the figure.
4510003/2P
1
2
2. Connect the BAT 121 to a battery using the battery
connecting cable.
3. Guide the paper into the printing mechanism.
3
4510004P_2CV
2
1
? The printing mechanism automatically pulls the
paper in.
i You can align the paper if necessary, after pressing
the switch (Pos. 2).
i After aligning the paper feed, the switch has to be
pressed back into the original position ( Pos. 3).
