SLIDING FENCES
T
o provide sufficient
(minimum 6") spacing from
hand to saw blade, extend the sliding fences and
base extensions when making extreme bevel,
miter or compound cuts.
OPERATING SLIDING FENCES
1. Loosen the fence lock knob counter clockwise ½
turn to loosen fence (see figure 32).
2. Slide fence to the desired position.
3. Tighten the lock knob clockwise to lock fence
position.
REMOVING SLIDING FENCES
The sliding fence may need to be removed when
preforming extreme bevel cuts and most
compound cuts.
1. Loosen the fence lock knob counter clockwise 4
rotations, see figure 32.
2. Lift and remove fence.

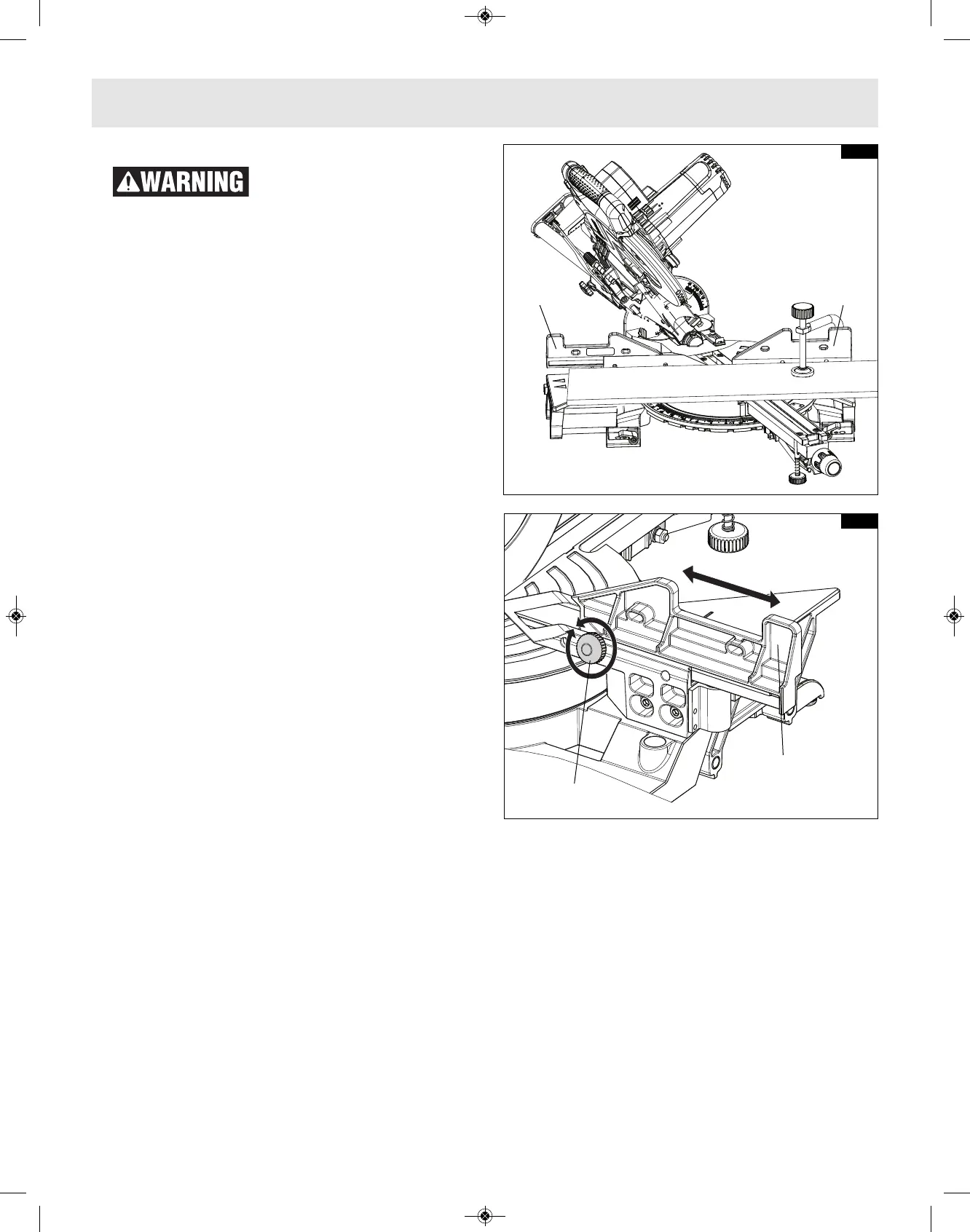

Fence Lock
Knob
FIG. 32
Sliding
Fence
Left
Sliding
Fence
Right
Sliding
Fence
FIG. 31
Preparing for Saw Operations
To Next Page
