3.5 Description of unit
The DCU 130 is a portable, mobile tablet PC for workshop
use. It is operated by means of a pen (for the LCD touch
screen) and a virtual keypad. Data and measured values
can be printed out by way of the USBinterface on an ex-
ternal printer (special accessory). The DCU 130 and the
accessories are supplied in a protective case.

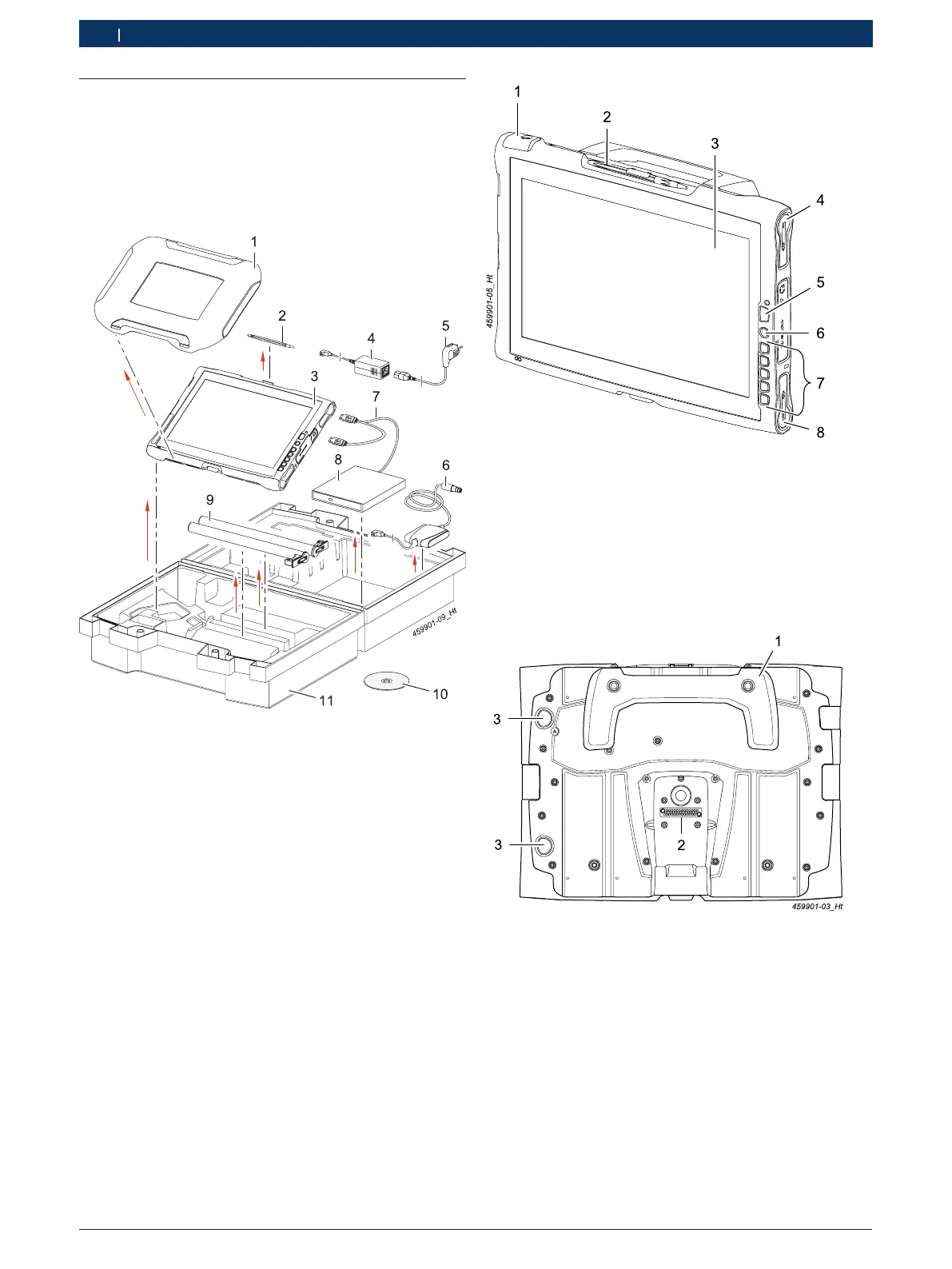

Fig. 1: Key to DCU 130 and accessories
1 Guard
2 Pen
3 DCU 130
4 Power supply unit (19 V +/- 20 %)
5 German power cord
6 Motor vehicle charging cable 12 Volt
7 USB connecting cable
8 External DVD-ROM drive
9 Battery (2 pieces)
10 Recovery DVD
11 Case
Fig. 2: DCU 130
1 Kamera
2 Pen holder
3 LCD with touch screen
4 Akku (Battery 2)
5 LEDs
6 On/Off key
7 Front keys
8 Akku (Battery 1)
Fig. 3: Back view of DCU 130
1 Handle
2 Docking connection
3 Battery release mechanism
! If DCU 130 is operated without a docking station,
the protective flap of the docking connection must
always be closed, otherwise components that are
sensitive to electrostatic energy can be destroyed if
contacts are touched!
