Bosch DDU 9 - 15 Lap Trigger; Lap Trigger (Timing Beacon)

15 | Lap Trigger
120/148 DDU 9 Bosch Motorsport
15 Lap Trigger
15.1 Lap trigger (timing beacon)
Why do we need a lap trigger (timing beacon)?
– Vehicle lap time measurement
– Calculation of lap-dependent functions (lap fuel consumption, min/max values)
– Calculation of lap distance dependent functions
– Control of data logging system
Types of Systems
– GPS based (low cost, low precision)
– IR based (low cost, high precision, limited reliability)
– RF (microwave) based (high precision, high reliability)

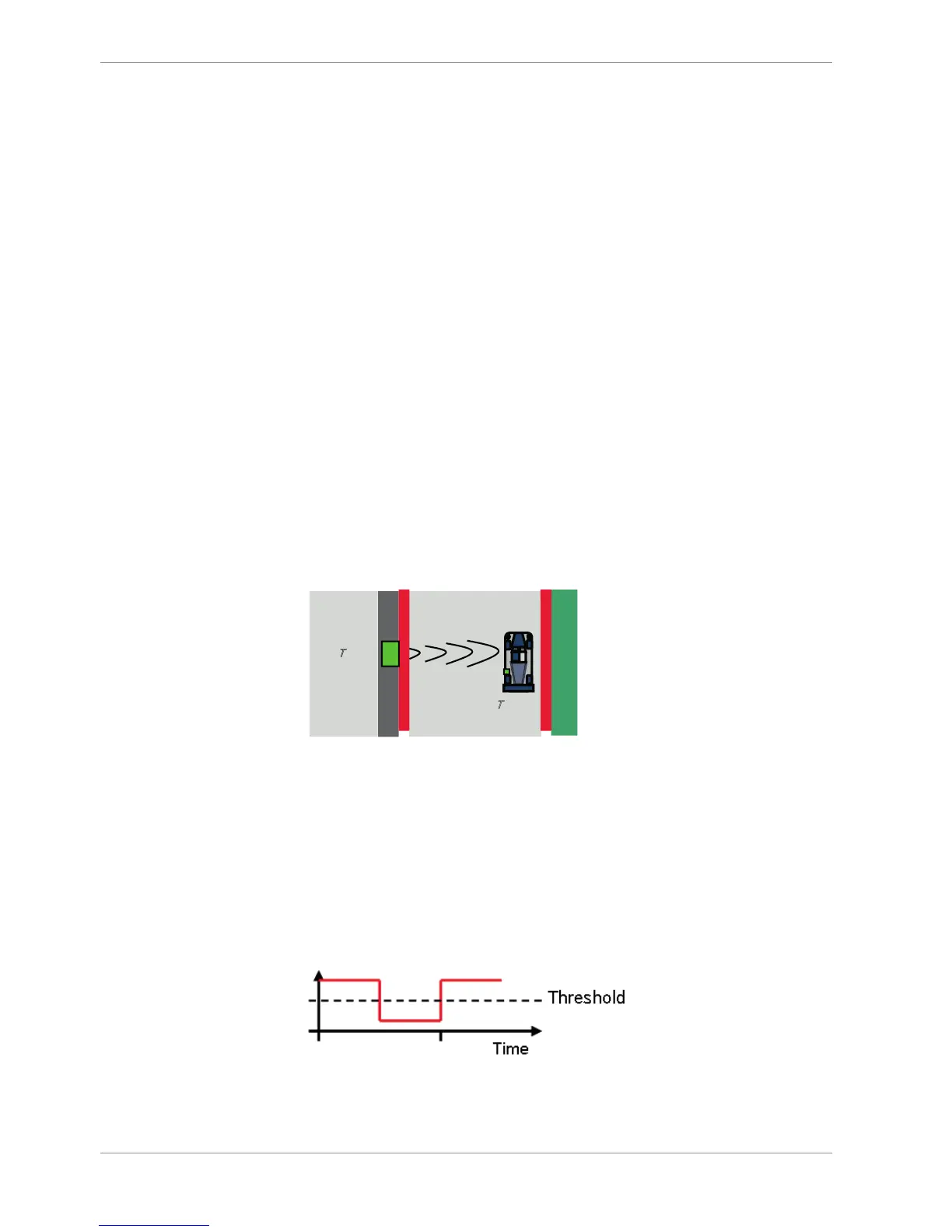

IR and RF based Systems consists of
– Transmitter (trackside unit)
– Receiver (in-vehicle unit)
Lap Trigger
R
eceiver
Lap Trigger
T
ransmitter
15.1.1 Electrical trigger signal
In DDU 9 all sources of measurement channels can be used as trigger signal.
– Analog input
– Digital input
– CAN input
Signal (measurement channel) properties
Low active signal (Bosch triggers): Trigger releases if signal is below the threshold.
High active signal (other manufacturer’s triggers): Trigger releases if signal is above the
threshold.
