10 Display Configuration
– DDU 9 features: 800 x 480 full color TFT display + 10 color LEDs
– Display and LEDs are fully configurable
– ECU channels, analog channels, and CAN channels can be displayed
– Display elements: large numeric, medium numeric, bar graph style, alarm messages,
static elements, image element
– DDU 9 supports up to 12 display pages, 6 brightness settings for display and LEDs

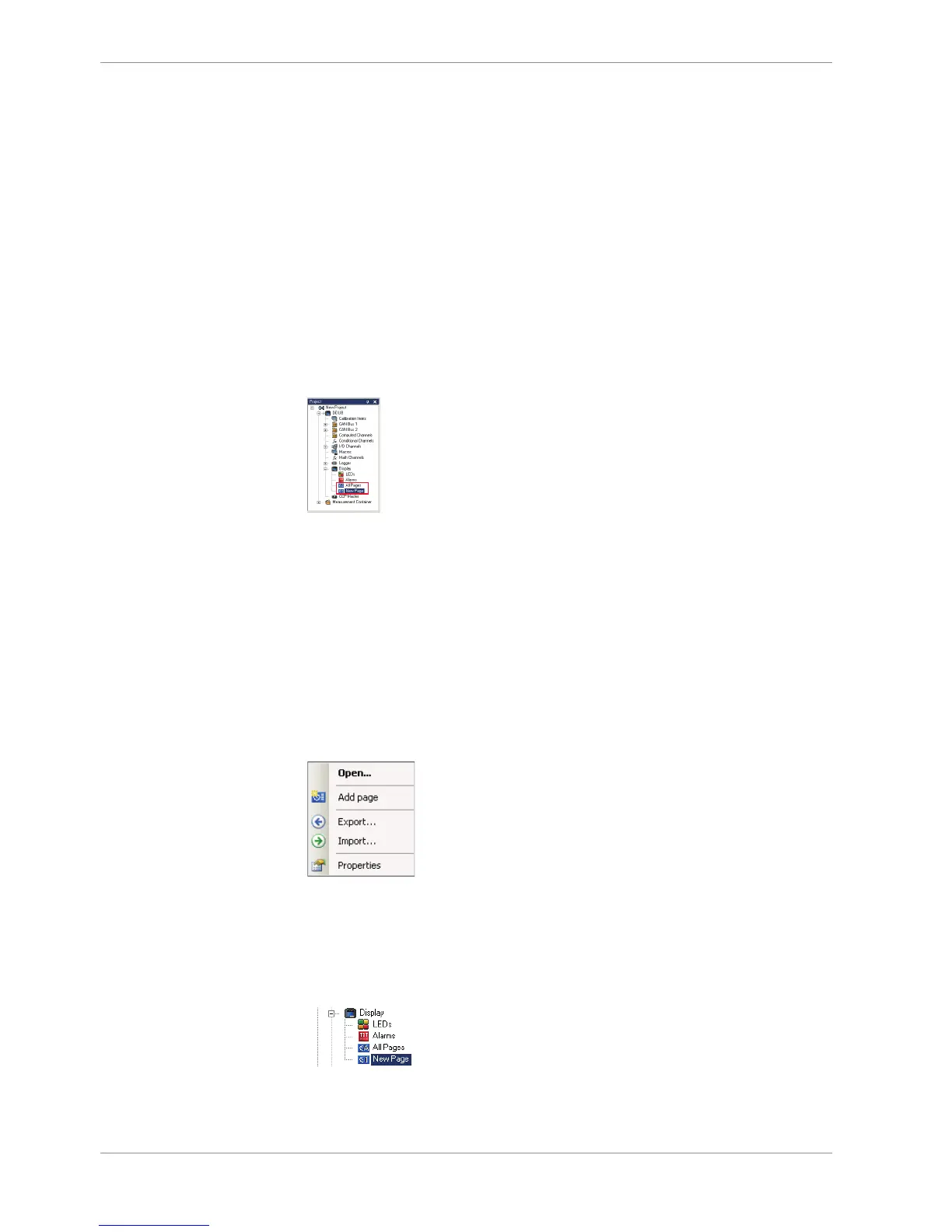

10.1 Display page setup
10.1.1 Organizing display pages
– All Pages: Display elements placed on this page are displayed on all pages. Recom-
mended for ‘Alarm’ display elements.
– Single Page: Display elements placed on this page are displayed only on this page.
The priority of display elements placed on ‘All Pages’ is higher than the priority of display
elements placed on single pages.
Example: An Alarm placed on ‘All Pages’ is displayed on all display pages and is always in
front of other display elements.
10.1.2 Adding a new display page
Right-click on ‘Display’ and click ‘Add Page’ in the menu.
A new empty page opens.
10.1.3 Selecting display pages
Click on ‘DDU 9’ in the DDU 9 Project Tree, then on ‘Display’ and double-click on the page
you want to select (example: ‘New Page’).
In the Main Area, a representation of the DDU 9 opens.
