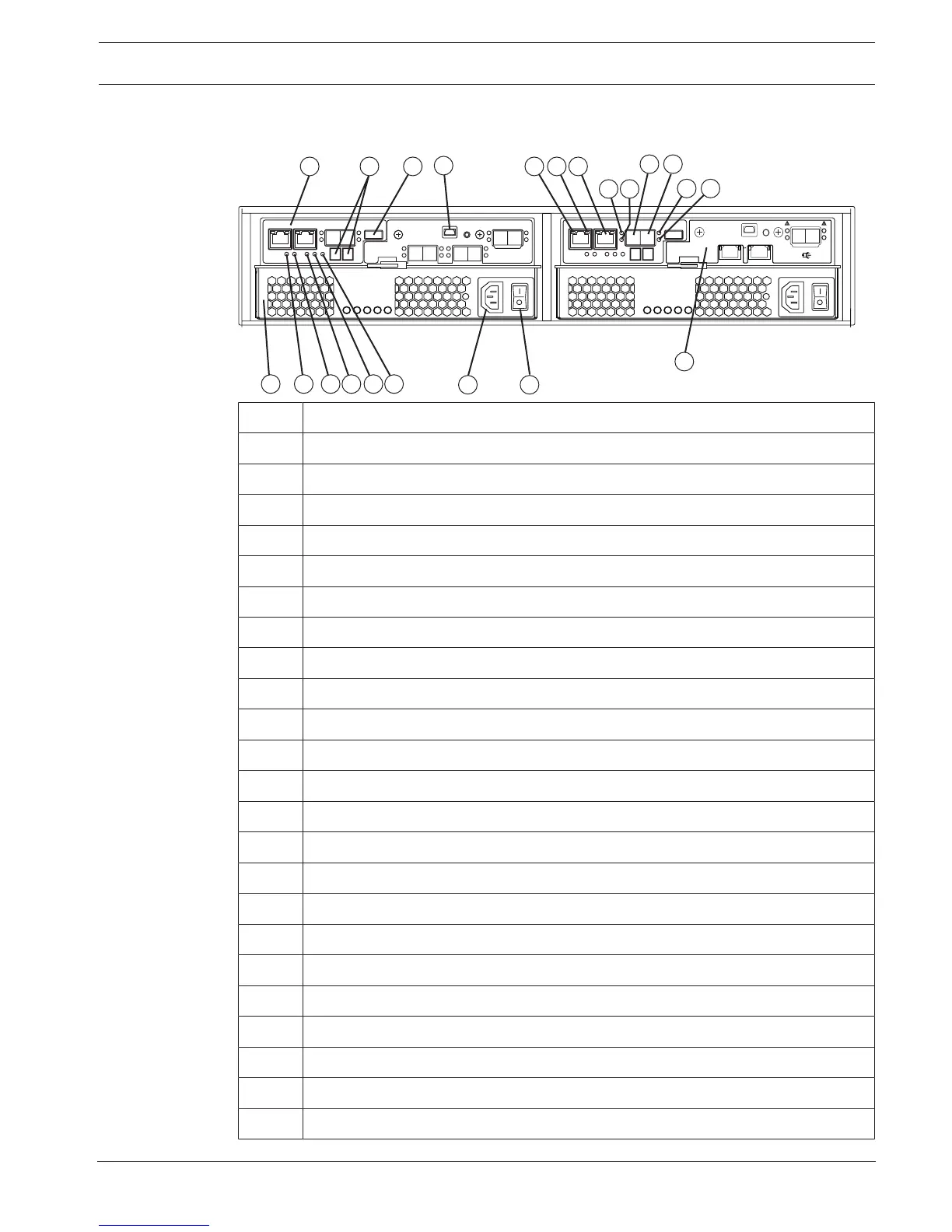

E2700 controller-drive tray – rear view
(right-rear sub plate with a two-port 1-Gb/s or 10-Gb/s iSCSI host interface card)
17
11 12
13
8
1 2 5 7
9 10
6
23 24
25
4
3
18 19
20 21 22
iSCSI
Host
S
S
SL
S
A
Lnk Lnk
LnkLnk
Port 2Port 1
Ch 4 Ch 3
Drive Expansion
L
1 E2700 controller canister
2 Seven-segment display
3 USB port
4 Serial port
5 Ethernet port 1 link rate LED
6 Ethernet port 2 link active LED
7 1 GbE Ethernet management port 2
8 SFF-8644 SAS host connector 1
9 SAS host 1 link up LED
10 SAS host 1 link fault LED
11 SAS host 2 link up LED
12 SAS host 2 link fault LED
13 SFF-8466 SAS host connector 2
14 SAS expansion link 1 fault LED
15 SAS expansion link 1 up LED
16 SFF-8644 SAS connector 1 (expansion)
17 Power-fan canister
18 Battery service action required LED
19 Battery charging LED
20 Controller service action allowed LED
21 Controller service action required LED
22 Cache active LED
23 AC power connector
24 On/off switch
