25 Right rear sub plate (see below)

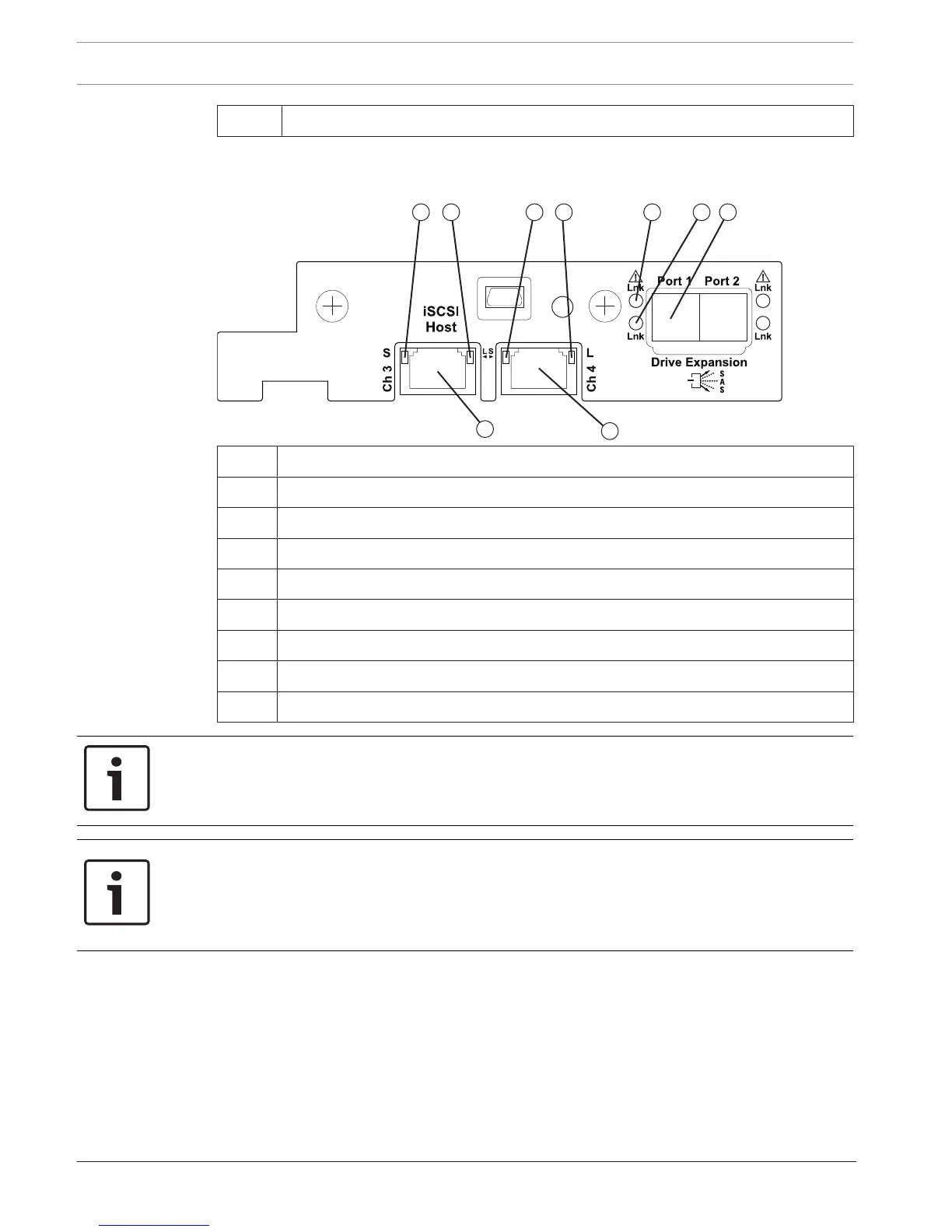

E2700 right-rear sub plate with a two-port 1-Gb/s or 10-Gb/s iSCSI host interface card
49006-08
7
8 91 2
3
4 5
6
1 Host interface card channel 3 fault LED
2 Host interface card channel 3 link up LED
3 iSCSI host interface card channel 3
4 iSCSI host interface card channel 4 fault LED
5 Host interface card channel 4 link up LED
6 iSCSI host interface card channel 4
7 SAS expansion port 1 fault LED
8 SAS expansion port 1 link up LED
9 SFF-8644 SAS port 1 (expansion)
Notice!
Possible equipment damage
You must use the supported drives in the drive tray to ensure proper operation. For
information about supported drives, contact a Technical Support Representative.
Notice!
Risk of equipment malfunction
To avoid exceeding the functional and environmental limits, install only drives that have been
provided or approved by the original manufacturer. System integrators, resellers, system
administrators, or users of the controller-drive tray can install the drives.
