DSA E-Series (E2700) Preparing for an E2700 controller-drive tray installation | en 19
Bosch Sicherheitssysteme GmbH Installation manual 2015.10 | V2 | DOC

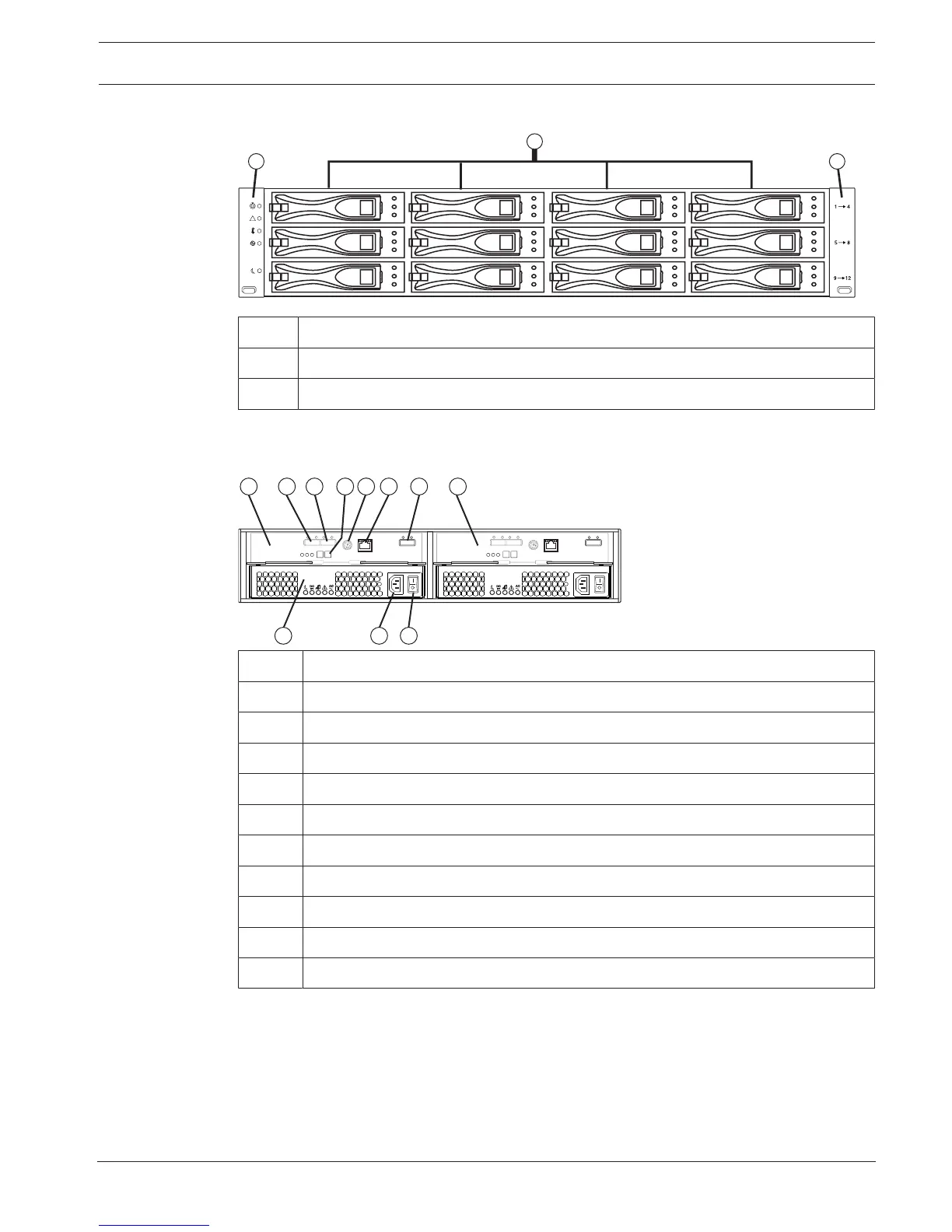

DE1600 drive tray – front view
!
970 0 1 - 01
31
2
1 Left end cap (has the drive tray LEDs)
2 Drives
3 Right end cap
DE1600 drive tray with AC power option - rear view
97002-01
AC
DC
!
AC
DC
!
2 3 4 5 761
98 10
11
1 ESM A canister
2 Expansion port SFF-8088 connector 1 (IN)
3 Expansion port SFF-8088 connector 2 (IN)
4 Seven-segment display indicators
5 Serial connector
6 Ethernet connector
7 Expansion port SFF-8088 connector (OUT)
8 Power-fan canister
9 Power connector
10 Power switch
11 ESM B canister
