34 en | Installing the drive trays for the E2700 controller-drive tray configurations DSA E-Series (E2700)
2015.10 | V2 | DOC Installation manual Bosch Sicherheitssysteme GmbH
Notice!
Possible hardware damage
To prevent electrostatic discharge damage to the tray, use proper antistatic protection when
handling tray components.
To install the DE1600 drive tray:
1. Make sure that the cabinet is in the final location. Make sure that the cabinet installation
site meets the clearance requirements.

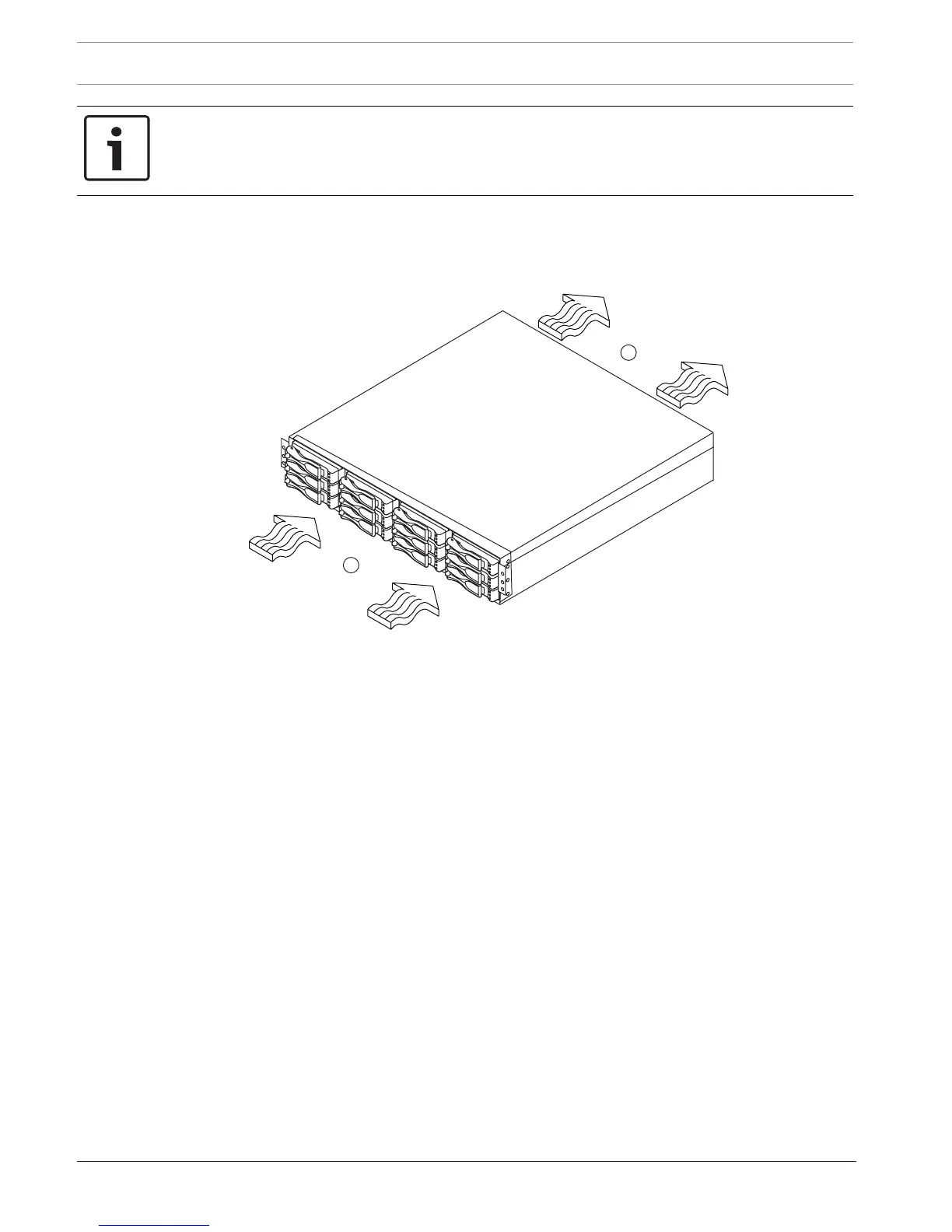

Note: Fans pull air through the tray from front to back across the drives.
1 - 76 cm (30 in.) clearance in front of the cabinet
2 - 61 cm (24 in.) clearance behind the cabinet
2. Lower the feet on the cabinet, if required, to keep it from moving.
3. Remove the drive tray and all contents from the shipping carton.
4. Install the mounting rails in the cabinet. For more information, refer to the installation
instructions that are included with your mounting rails.
– If you are installing the mounting rails above an existing tray, position the mounting
rails directly above the existing tray.
– If you are installing the mounting rails below an existing tray, allow 8.7-cm (3.4-in.)
vertical clearance.
