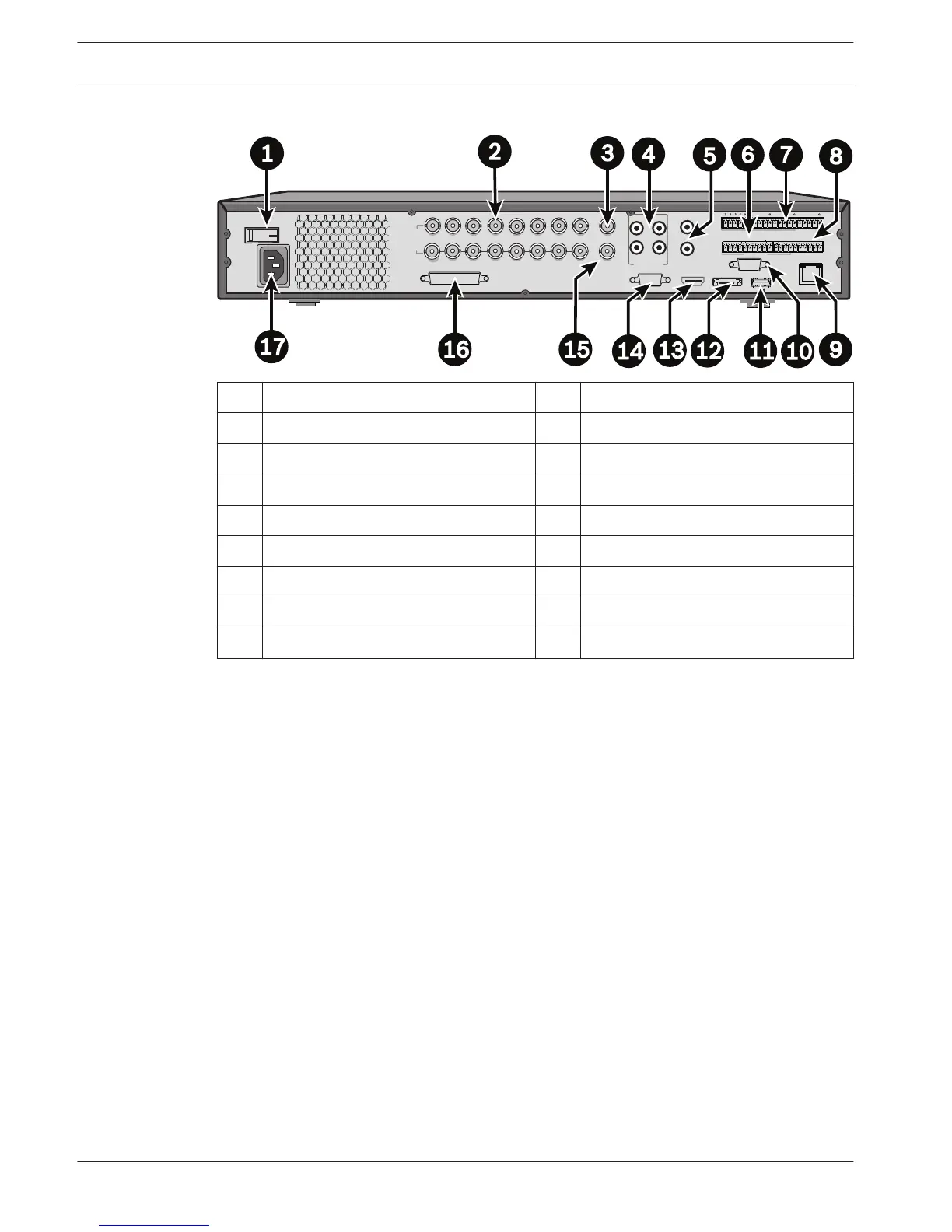

Connections on back of DIVAR 5000 (16-channel)
5 6 7 8 9 10 11 12 13 14 15 16
1
2
3
4
ALARM OUT
RS-485
A
UDIO OUT
ETHERNET
C3
ALARM IN
G
+
_
G
NO3
NO1 NO2 C2
C1
AUDIO IN
HDMI MON.A
RS-232
VGA MON.A
MIC IN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CVBS MON. B
CVBS MON. A
VIDEO IN
e-SATA
G
+
_
G
+12V CTRL
C5 NO5
NO4 C4
KEYBOARD
+12V
0
ON
OFF
VIDEO OUT
1 Power ON/OFF switch 10 RS232 connector for Dome control
2 Camera inputs 11 USB connector
3 CVBS output - Monitor A 12 e-SATA connector
4 Audio inputs 13 HDMI output - Monitor A
5 Audio output and MIC IN connector 14 VGA output - Monitor A
6 Alarm outputs 15 CVBS output - Monitor B
7 Alarm inputs 16 Video out (loop through)
8 RS485 and keyboard connectors 17 Power connector
9 RJ45 ethernet connector
18 en | Quick install
