Installation
This section includes hardware details and the instructions you need to install the motion
detector base.
Self-locking cam lock
The motion detector includes a self-locking cam lock for easy installation. The following figures
and instructions show how to use the lock to open and secure the motion detector.
Open the motion detector and remove the base
Insert a flathead screwdriver into the locking tab hole at the bottom of the motion detector,
and turn the cam lock at the bottom of the motion detector to the open position.
Hold the base and slide the unit body down, then lift the cover to remove it from the base.

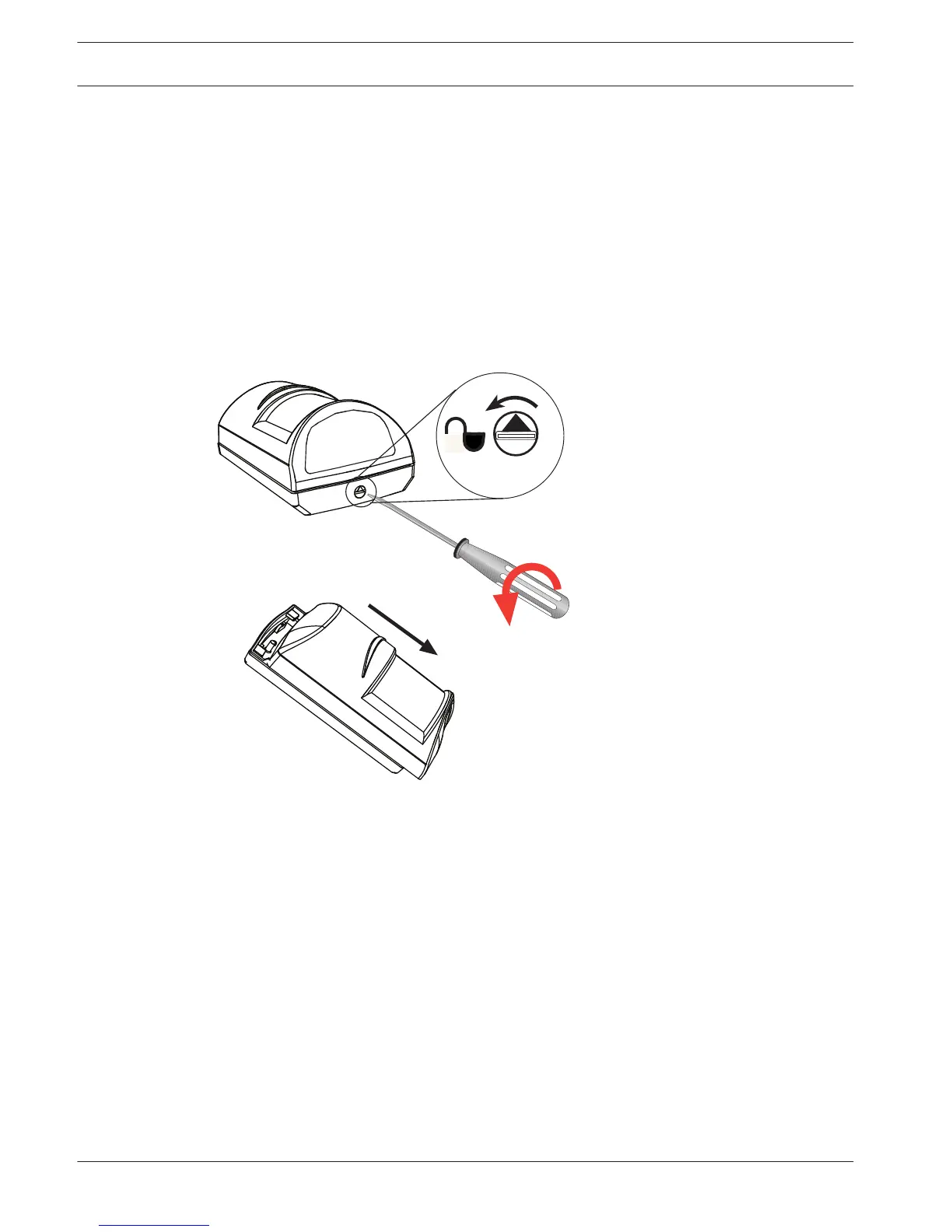

Figure 5.1: Unlocking the base and removing the body
Place the motion detector onto the base
When you remove the motion detector body from the base, the cam automatically returns to
the locked position.
When you place the motion detector body onto the base, the cam must remain in locked
position.
Do not manually change the cam once the motion detector body is separated from the base;
doing so unlocks the motion detector and prevents you from placing the motion detector body
correctly onto to base.
5
5.1
10 en | Installation
Commercial Series TriTech Motion
Detector
2015.06 | 02 | F.01U.314.294 Reference Guide Bosch Security Systems, Inc
