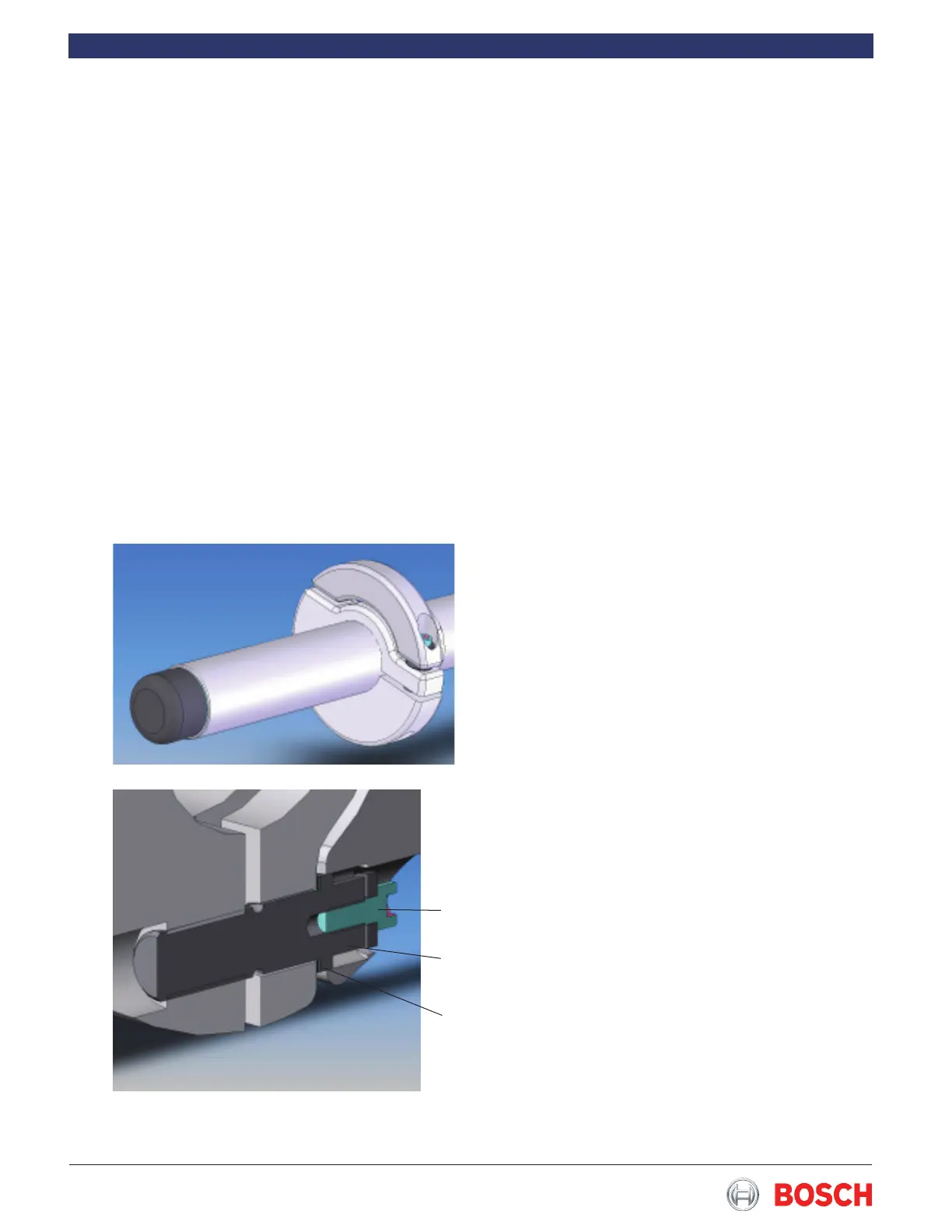

6.4.14 Backstand - Adjust Film Chuck
Tension
If the cone is gripping properly but the
handgrip does not rest against the stop,
or if the cone is gripping too lightly, adjust
the film chuck tension.
1. Remove the recessed-head bolt (1)
2. Remove the handgrip.
3. Remove the bolt (2).
4. If the cone is gripping too hard, remove
one washer (3); if it is gripping too
lightly, add one washer.
5. Replace the bolt.
6. Fit the handgrip.
7. Tighten the recessed-head bolt.
8. Check the operation and repeat the set-
up procedure if necessary.
1
2
3
