4.6.16 I/O
Touch the I/O diagnostic in the list to display the
screen below�

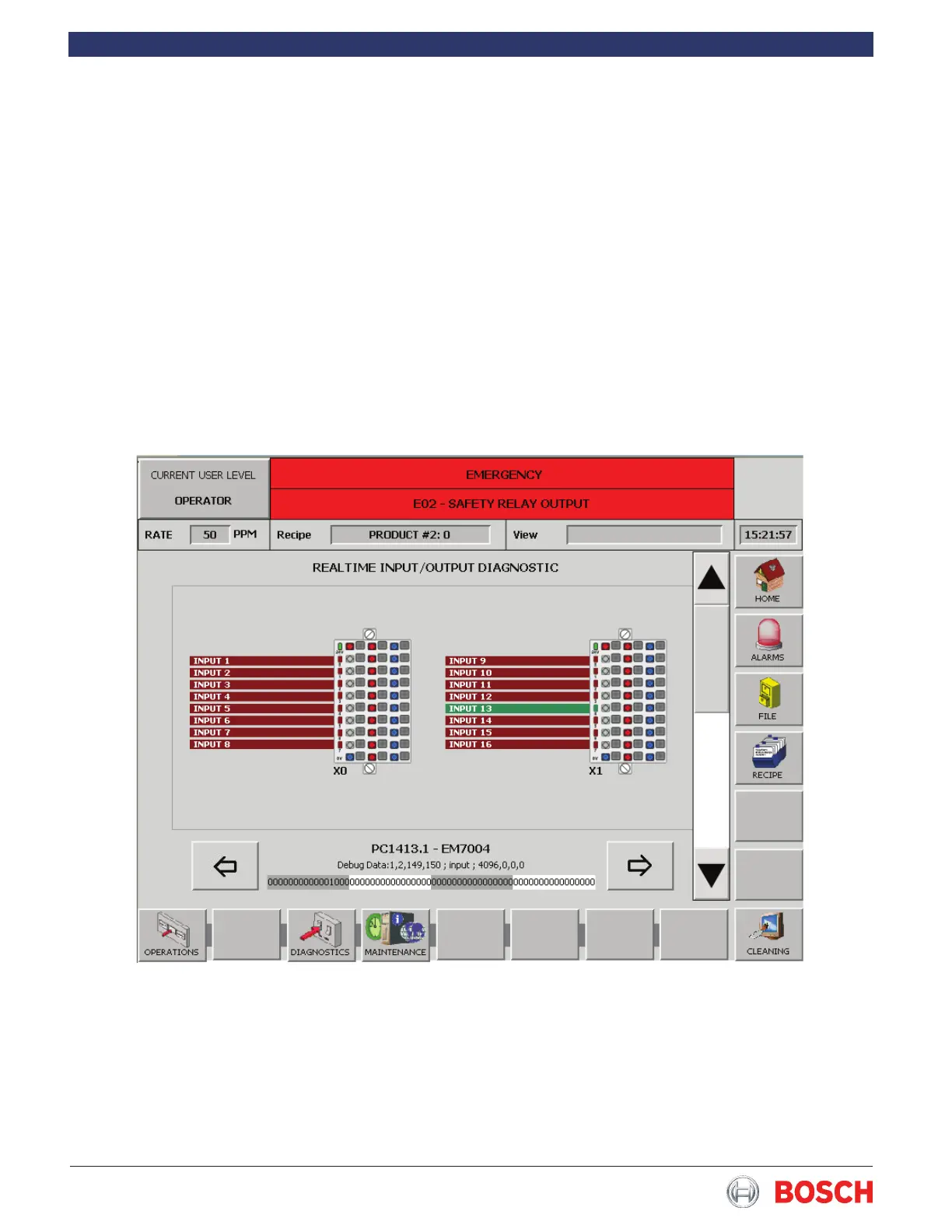

The Diagnostic Inputs/Outputs screen displays the
current status of various inputs and outputs to the
I/O boards in the wrapper� This is a view only screen
used to check the operation of electric eyes, sensors,
switches etc� Additional screens (eight total) are avail-
able by using the bottom Left/Right arrows to scroll
through them�
