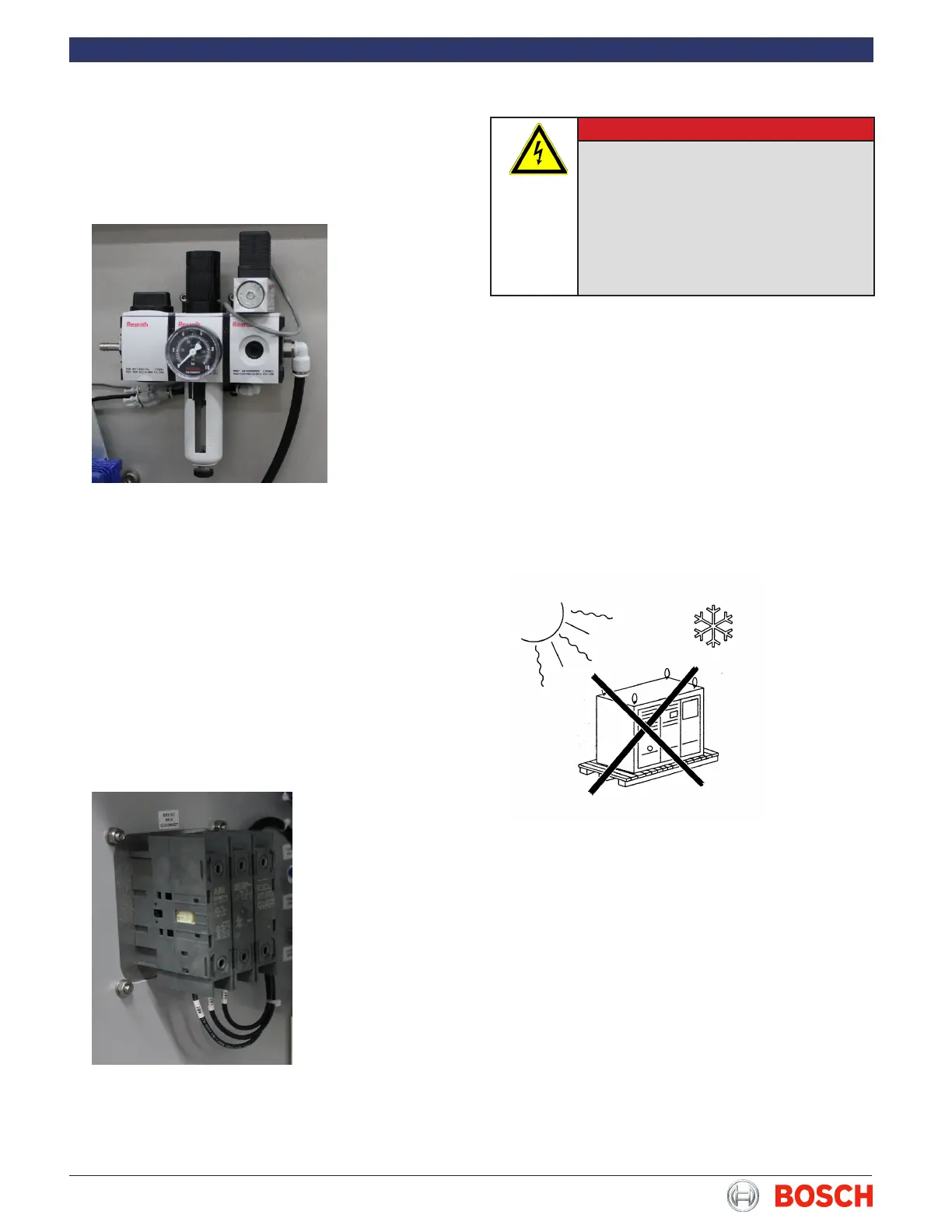

1.4.2 Connect the Air
Connect the air supply to the pneumatic assembly�
The main regulator is located behind the backstand�
The regulator is factory-set to 60 PSI and should not
have to be adjusted�
1.4.3 Connect the Electricity
Refer to the electrical schematics in the Parts Manual�
All work must be performed only by a qualied
electrician�
1� Make sure all the switches are OFF�
2� Locate the electrical connections inside the
enclosure to terminals L1, L2, L3 and GND�
3� Determine the best location for the plant’s
electricity supply to enter the wrapper’s electrical
enclosure� Drill an access hole�
4� Connect the green lead to GND�
5� Connect the black lead to L1�
6� Connect the white lead to L2�
7� Connect the red lead to L3�
8�
DANGER
To avoid a very serious or fatal shock
hazard, the line cord and the wrapper
must be attached to the building elec-
trical safety ground before making the
electrical connections� Connections must
be made by a qualied electrician and
in compliance with all national and local
codes�
1.5 Disassembly, Storage & Conservation
The machine should only be disassembled by trained
personnel� To disassemble the machine, follow the
instructions below�
1� Disconnect machine from all external power
supplies�
2� Switch off compressed air and remove the main
air hose�
3� Release all sprung parts and remove all torsion
springs�
4� Dispose of the material in accordance with local
regulations�
To keep the machine in working order if it is not in use
for an extended period, ensure the following:
• The storage area must be dry and clean�
• The machine should not be exposed to extreme
heat or cold�
• Place the machine on a at surface to prevent
torsion stress�
• Cover the machine to protect it from dust or dirt�
