Bosch Rexroth A6VM series 71 - Dimensions Size 215

Bosch Rexroth Corp., RE-A 91610/12.2015
56 A6VM series 71 | Axial piston variable motor

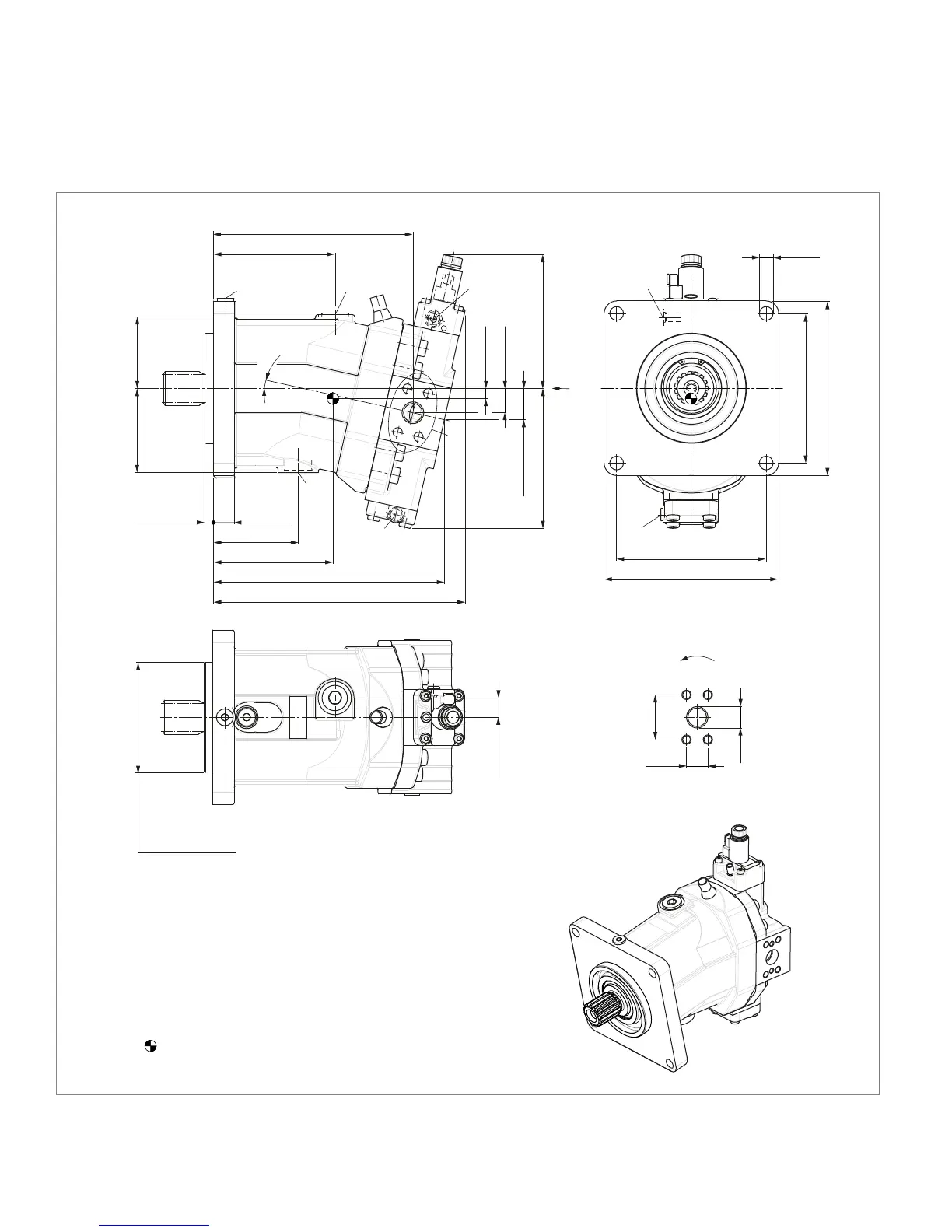

Dimensions size 215
Dimensions [inch (mm)]
Dimensions size 215
EP5, EP6 – Proportional electric control, negative control
Port plate 2 — SAE working ports A and B at side, opposite
T
2
M
1
T
1
U
Y
Z
G
G
M
1
6.50 (165)
13.62 (346)
1)
14.84 (377)
2.63
(66.7)
1.26
(32)
1.25
(31.8)
8.84 (224.5)
0.81
(20.6)
8.84 (224.5)
1.14 (29)
5.04 (128)
0.50 (12.7) 1.26 (32)
8.23 (209)
0.59 (15)
1.42 (36)
1.83 (46.5)
1)
7.87 (200)
7.20 (183)
11.77 (299)
4.21 (107)4.92 (125)
DIA6.500 DIA6.498
10.31 (262)
10.31 (262)
(DIA165.1
-0.05
)
12.5°
Flange SAEJ744
View Y
1) Port plate 1 — SAE working ports A and B at rear
Center of gravity
