Speed sensor
Version A6VM...U ("prepared for speed sensor", i.e. without
sensor) is equipped with a spline on the rotary group.
A signal proportional to motor speed can be generated with
the fitted DSA/DSM speed sensor. The DSA/DSM sensor
registers the speed and direction of rotation.
Ordering code, technical data, dimensions and details on
the connector, plus safety instructions about the sensor
can be found in the relevant data sheet (95132for DSM,
95133 for DSA).
The sensor is mounted on the port provided for this pur-
pose with a mounting bolt. On deliveries without sensor,
the port is plugged with a pressure-resistant cover.
We recommend ordering the A6VM variable motor complete
with mounted sensor.

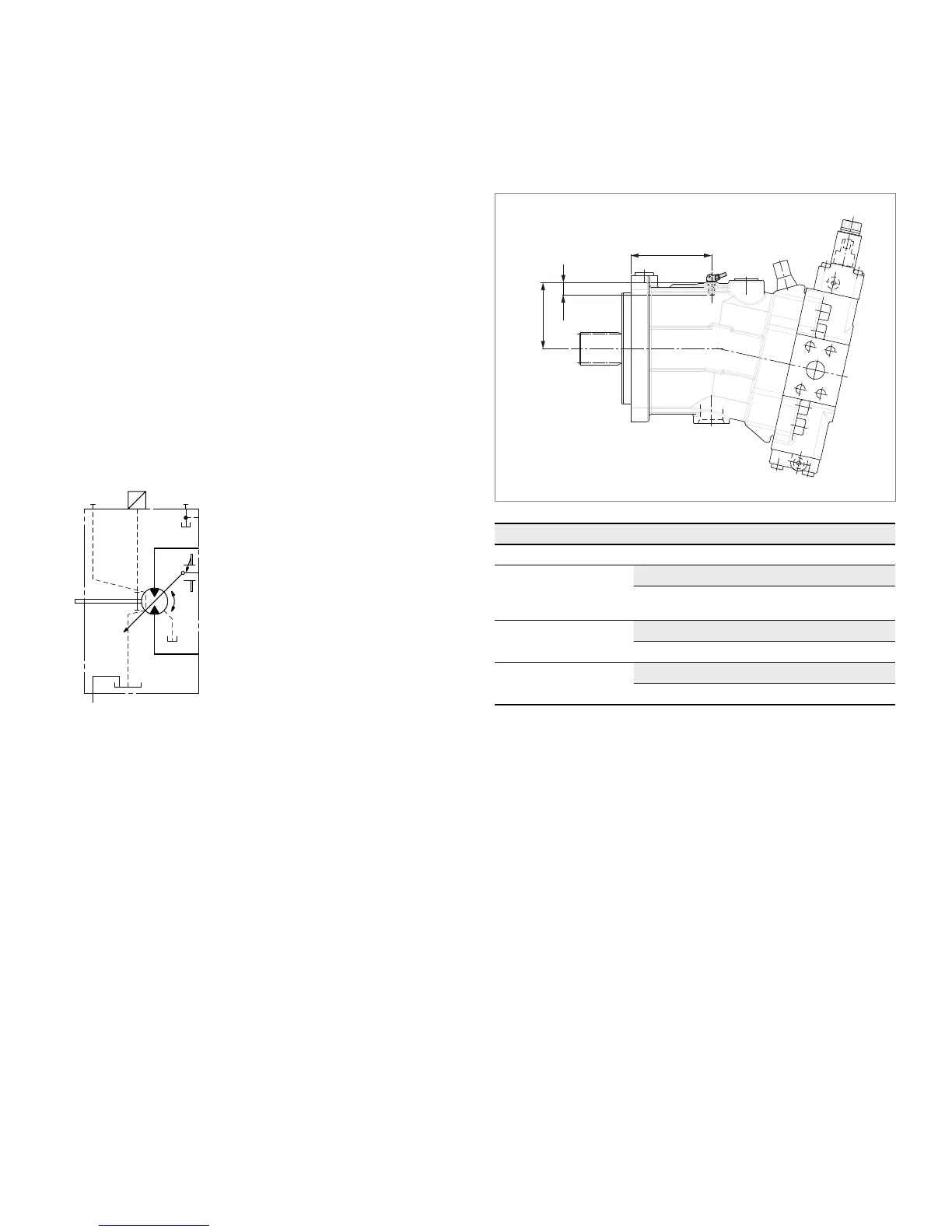

▼ Circuit diagram EP
T
2
T
1
U
n
U
▼ Dimensions
"V" design with mounted speed sensor
A
C
B
Size 60 85 115 150 170 215
Number of teeth 54 58 67 72 75 80
A Insertion depth
(tolerance
-0.0098 (-0.25))
0.72 0.72 0.72 0.72 0.72 0.72
(18.4) (18.4) (18.4) (18.4) (18.4) (18.4)
B Contact surface 2.95 3.11 3.46 3.66 3.78 3.98
(75) (79) (88) (93) (96) (101)
C 3.55 3.91 4.30 4.85 4.87 5.01
(90.2) (99.2) (109.2)(123.7) (123.7) (127.2)
