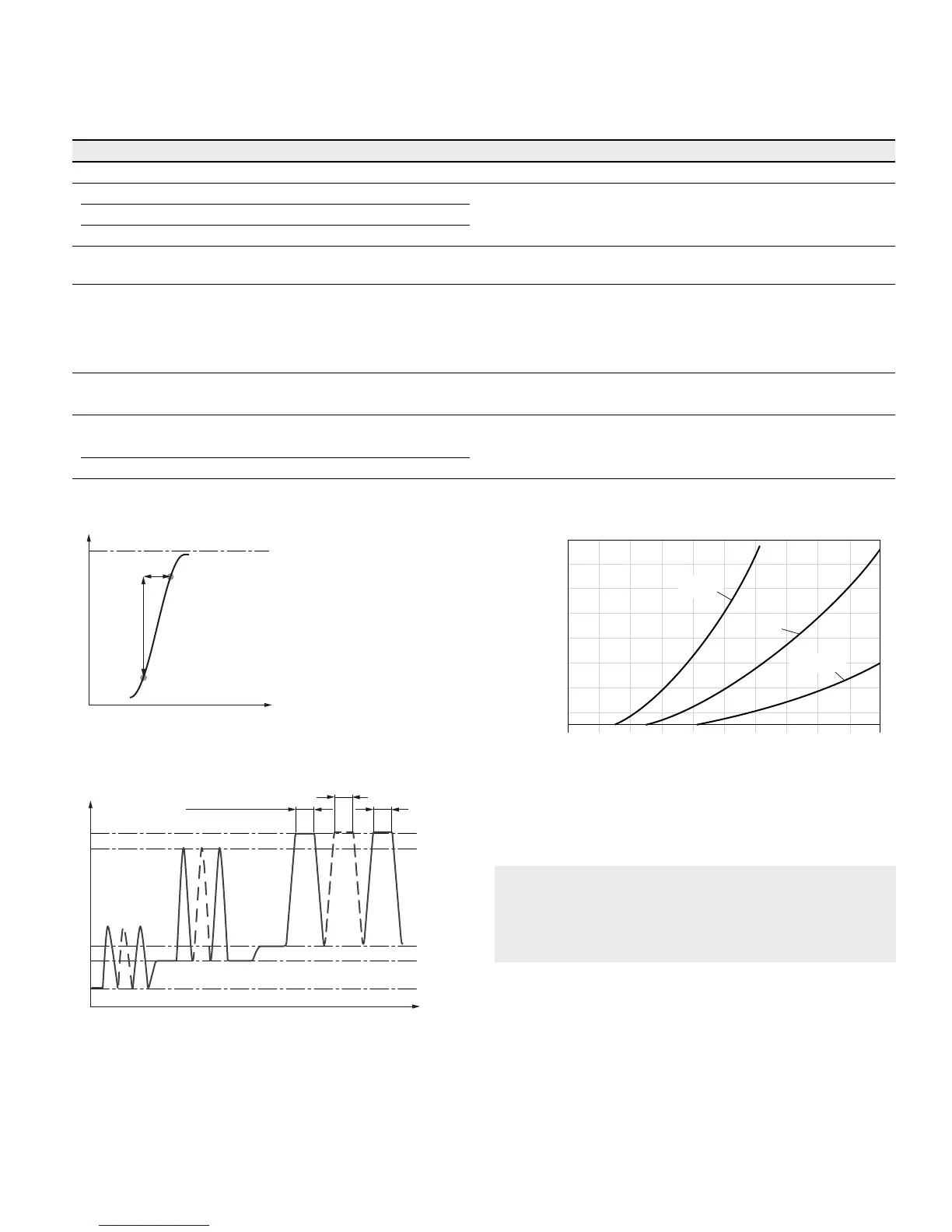

Axial piston variable motor | A6VM series 71
Operating pressure range
7
Operating pressure range
Pressure at working port A or B Definition
Nominal pressure p
nom
6500 psi (450bar) The nominal pressure corresponds to the maximum design pressure.
Maximum pressure p
max
7250psi (500bar) The maximum pressure corresponds to the maximum operating pres-
sure within the single operating period. The sum of the single operating
periods must not exceed the total operating period.
Single operating period 10s
Total operating period 300h
Minimum pressure
(high-pressure side)
365psi (25bar) Minimum pressure at the high-pressure side (A or B) which is required
in order to prevent damage to the axial piston unit.
Minimum pressure – pump operating
mode (inlet)
See the diagram below To prevent damage to the axial piston motor in pump operating mode
(change of high-pressure side with unchanged direction of rotation, e. g.
when braking), a minimum pressure must be guaranteed at workingport
(inlet). This minimum pressure is dependent on the speed and displace-
ment of the axial piston unit (see characteristic curve)
Summation pressure p
Su
(pressure A + pressure B)
10150psi (700bar) The summation pressure is the sum of the pressures at both working
ports (A and B)
Rate of pressure change R
Amax
Maximum permissible rate of pressure build-up and reduction during a
pressure change over the entire pressure range.
With integrated pressure-relief valve 130530psi/s (9000bar/s)
Without pressure-relief valve 232060psi/s (16000bar/s)
▼ Rate of pressure change R
Amax
p
nom
∆t
∆p
Time t
Pressure p
▼ Pressure definition
Single operating period
Pressure p
t
1
t
2
t
n
Minimum pressure (high-pressure side)
Maximum pressure p
max
Nominal pressure p
nom
Time t
Total operating period = t
1
+ t
2
+ ... + t
n
▼ Minimum pressure – pump operating mode (inlet)
V
g max
V
g x
0.3 V
g max
15 (1)
30 (2)
60 (4)
90 (6)
115 (8)
145 (10)
175 (12)
200 (14)
230 (16)
0 0.4 0.7 1.0 1.3 1.6
Inlet pressure p
abs
[psi (bar)]
Rotational speed n / n
nom
This diagram is valid only for the optimum viscosity range
from
ν
opt
=170to73SUS (36 to 16mm
2
/s).
Please contact us if these conditions cannot be satisfied.
Note
Operating pressure range valid when using hydraulic
fluids based on mineral oils. Values for other hydraulic
fluids, please contact us.
