62 A6VM series 71 | Axial piston variable motor
Connector for solenoids
Connector for solenoids
DEUTSCH DT04-2P-EP04
Molded connector, 2-pin, without bidirectional suppressor
diode
There is the following type of protection with mounted
mating connector:
▶ IP67 (DIN/EN 60529) and
▶ IP69K (DIN 40050-9)

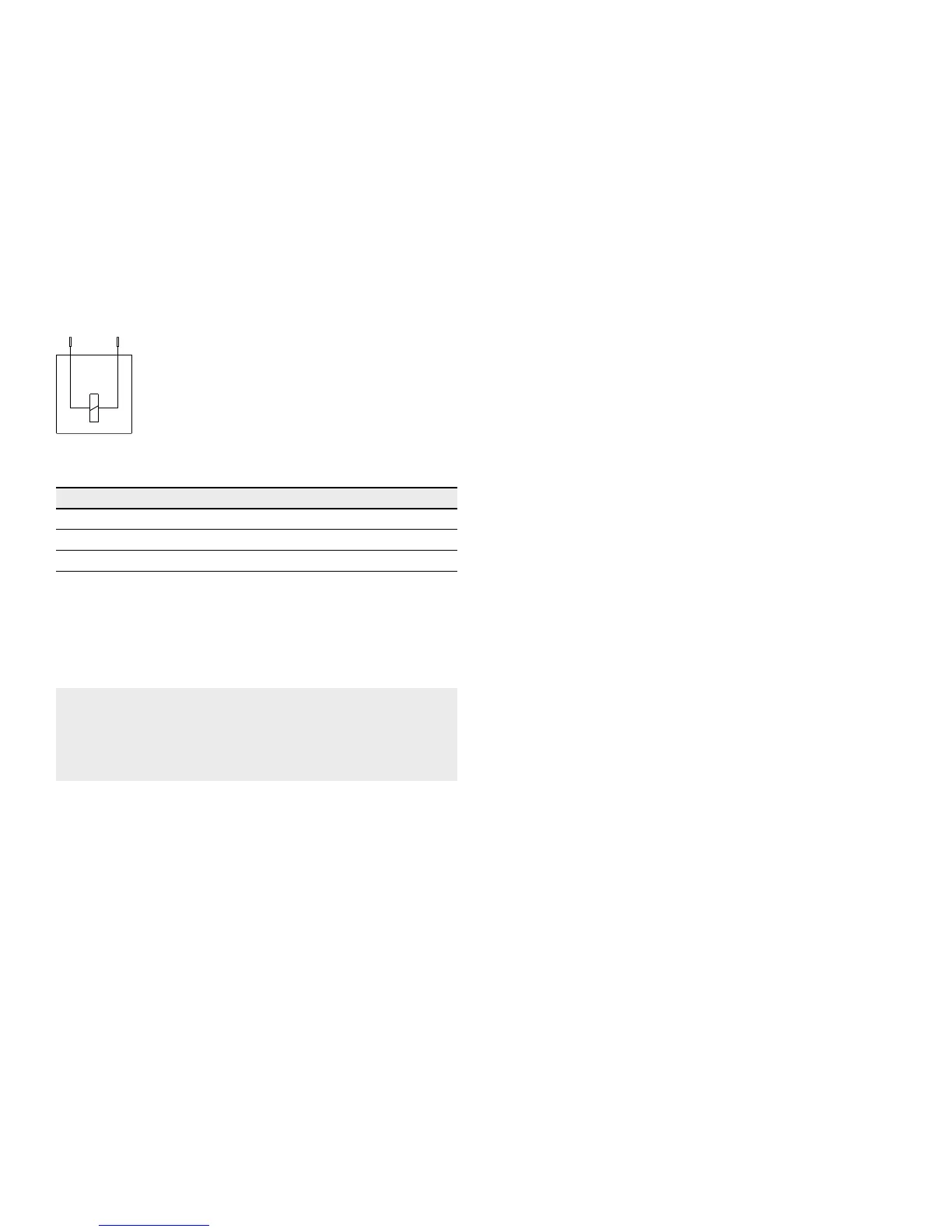

▼ Circuit symbol
▼ Mating connector DEUTSCH DT06-2S-EP04
Consisting of DT designation
1 housing DT06-2S-EP04
1 wedge W2S
2 sockets 0462-201-16141
The mating connector is not included in the scope of deliv-
ery.
This can be supplied by Bosch Rexroth on request (material
number R902601804).
Note
▶ If necessary, you can change the position of the con-
nector by turning the solenoid.
▶ The procedure is defined in the operating instructions.
