64 A6VM series 71 | Axial piston variable motor
Flushing and boost pressure valve

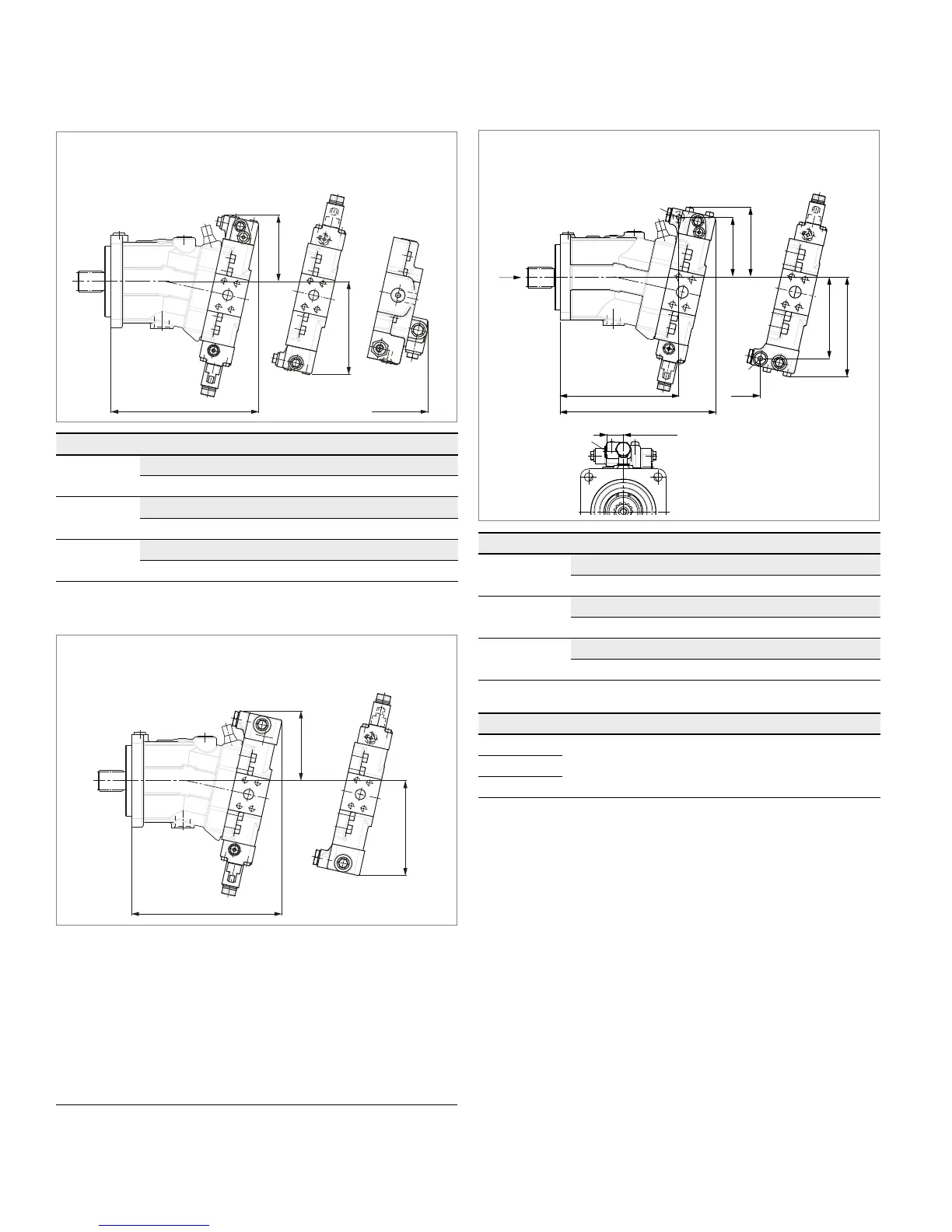

Dimensions [inch (mm)]
▼ Dimensions of sizes 60 to 115 (small flushing valve)
A1
A3
A2
A4
HA1, HA2
HP1, HP2
EP1, EP2
HP5, HP6
EP5, EP6
DA
HZ7
EZ7, EZ8
NG A1 A2 A3 A4
60 10.51 5.39 6.93 10.24
(267) (137) (176) (260)
85 11.69 5.59 7.64 10.94
(297) (142) (194) (278)
115 12.56 5.63 7.95 11.85
(319) (143) (202) (301)
▼ Dimensions of size 115 (medium flushing valve)
8.07
(205)
5.94
(151)
12.76 (324)
HA1, HA2
HP1, HP2
EP1, EP2
HP5, HP6
EP5, EP6
DA
▼ Dimensions for sizes 150 to 215 (large flushing valve)
Z
S
a
S
a
S
a
1.50 (38)
A3
A1
B1 B4
A2
B2
HA1, HA2
HP1, HP2
EP1, EP2
HP5, HP6, DA
EP5, EP6
HZ5, EZ5, EZ6
B3
NG A1 B1 A2 B2 A3 B3 B4
150 14.06 10.67 6.50 5.59 9.06 7.36 7.80
(357) (271) (165) (142) (230) (187) (198)
170 14.33 10.94 6.50 5.59 9.17 7.48 8.03
(364) (278) (165) (142) (233) (190) (204)
215 15.00 11.61 6.77 5.83 9.61 7.91 8.54
(381) (295) (172) (148) (244) (201) (217)
NG S
a
1)
150
7/8-14UNF-2B; 0.67 (17) deep
170
215
1) ISO11926, ports plugged (in normal operation)
The spot face can be deeper than as specified in the standard.
