Bosch VG4 Series Firmware Update Manual

18 en | VG4 Firmware Updates via the CTFID AutoDome Modular Camera System
F.01U.097.269 | 1.06 | 2011.09 Firmware Update Manual Bosch Security Systems, Inc.

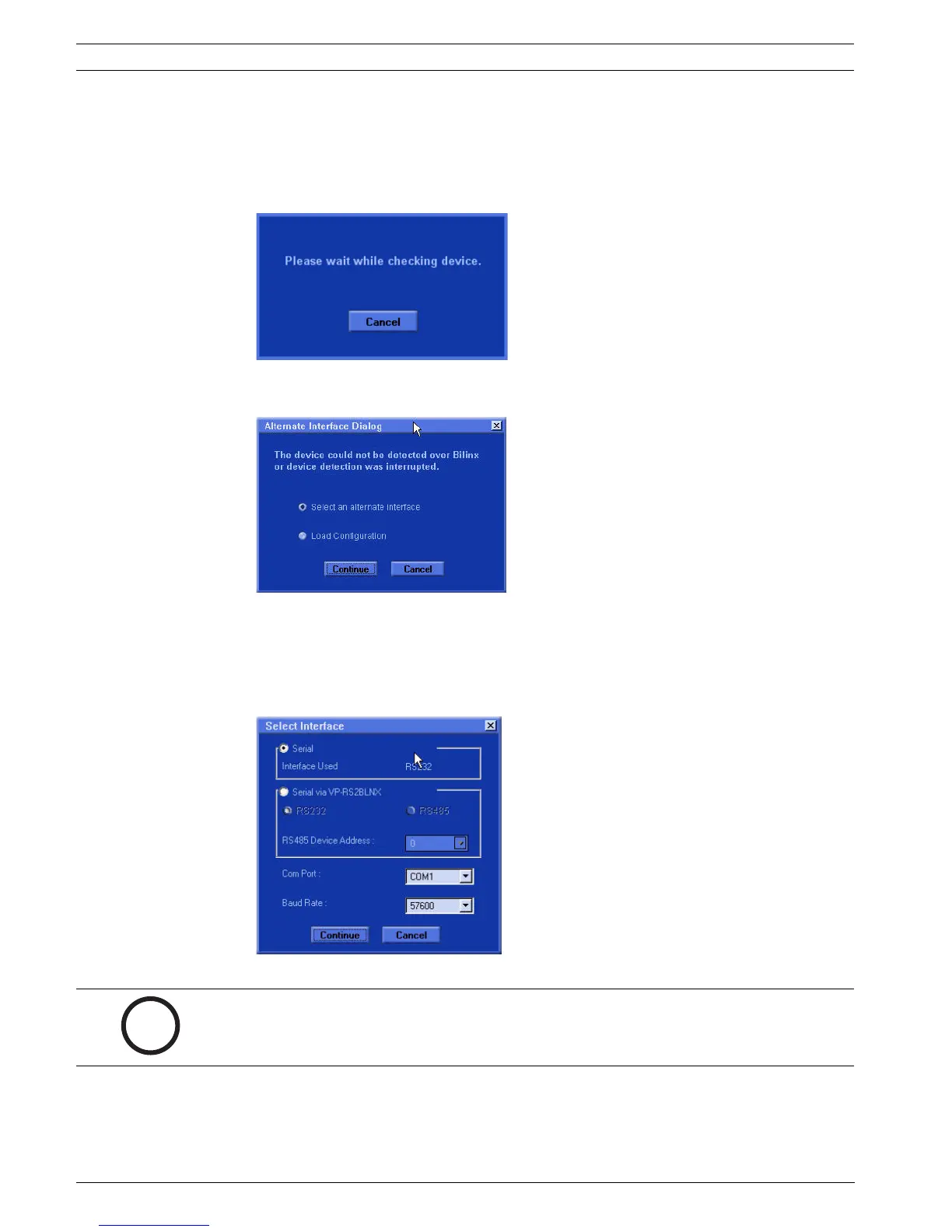

2.4.2 Launching with a RS232/RS485 Serial Connection
If using a RS232/RS485 serial connection, use the following instructions to launch the CTFID
software.
1. Double-click the CTFID icon on the Windows Desktop.
2. Click Cancel to select an alternate interface.
Figure 2.5 CTFID Detect Device Screen
3. Click the Select an alternate interface radio button and click Continue.
\
Figure 2.6 Alternate Interface dialog box
4. Ensure that the Serial radio button is selected.
5. Select the COM Port that is connected to the DB9 connector.
6. Accept the default baud rate.
Note: If unable to connect, make sure the VG4 AutoBaud setting is turned on.
Figure 2.7 Select Interface dialog box
i
NOTICE! The VP-RS2BLNX device is not available in the United States.

Bosch VG4 Series Specifications

General

Weatherproof Rating	IP66
Pan Range	360° continuous
Communication	RS-485
Lens Type	Varifocal
Day/Night	Yes
Power	12V DC
