VIP XD Product Description | en 13
Bosch Security Systems Installation and Operating Manual DOC | V4.0 | 2009.06

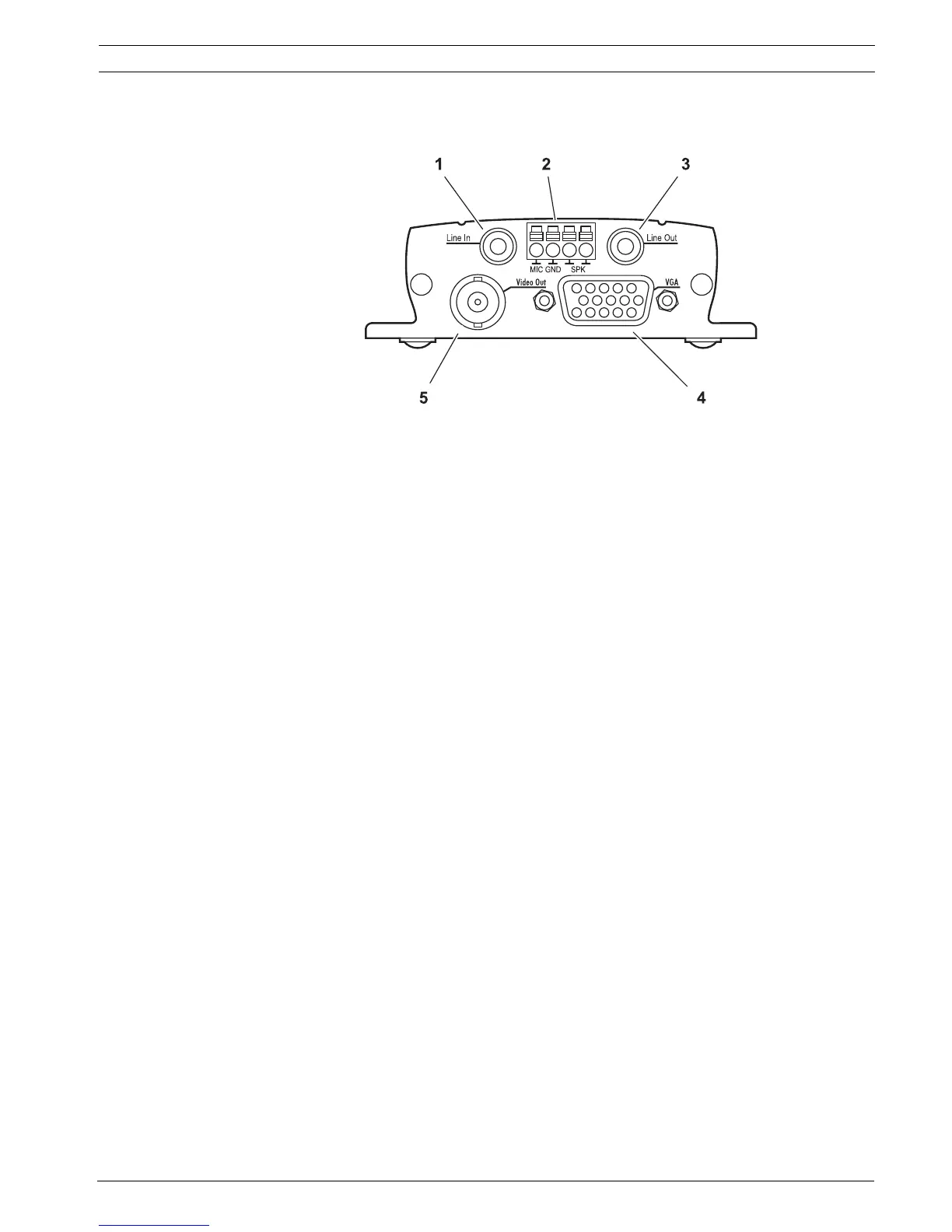

3.4 Connections on the Front Panel
1LineIn audio line input (audio version only)
3.5 mm / 1/8 in. stereo socket for connecting an audio line input signal
2 Terminal connector (audio version only)
for microphone and loudspeaker connections
3LineOut audio line output (audio versions only)
3.5 mm / 1/8 in. stereo socket for connecting an audio line output signal
4VGA video output
Sub-D socket for connecting a computer monitor
5VideoOut video output
BNC socket for connecting a video monitor
