14 en | Product Description VIP XD
DOC | V4.0 | 2009.06 Installation and Operating Manual Bosch Security Systems

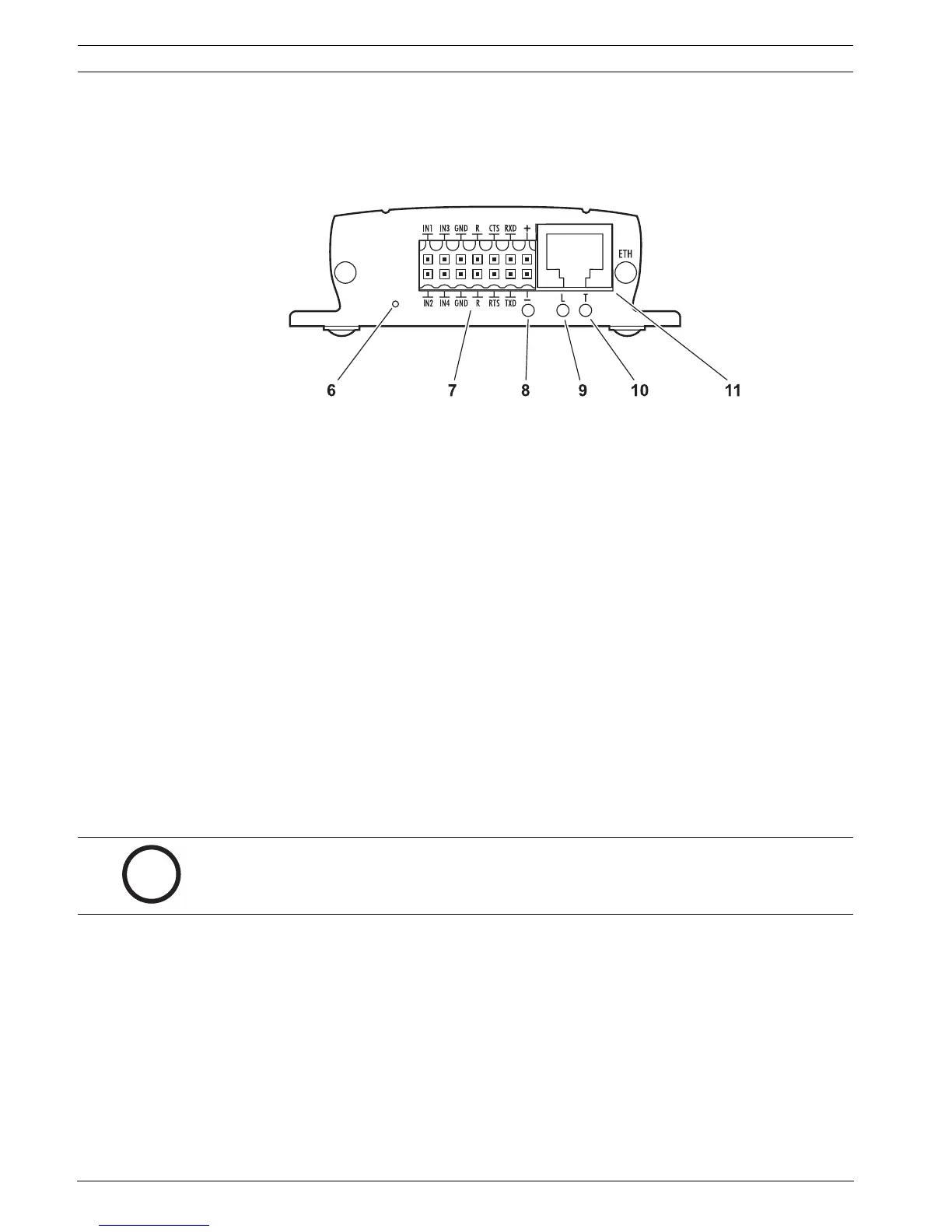

3.5 Connections on the Rear Panel
6 Factory reset button
to restore factory default settings
7 Terminal block
for alarm inputs, relay output, serial interface and power supply
8 Operating status LED
lights up green when ready for operation
9L LED
lights up green when the unit is connected to the network
10 T LED
flashes orange when data is being transmitted over the network
11 ETH RJ45 socket
for connecting to an Ethernet LAN (local network), 10/100 MBit Base-T
i
NOTICE!
For more information about the LEDs, see Section 8.2 LEDs, page 65.
For terminal block assignment, see Section 8.6 Terminal Block, page 66.
