Bass Array Preset Bank: Presets designed for Bass Array operation

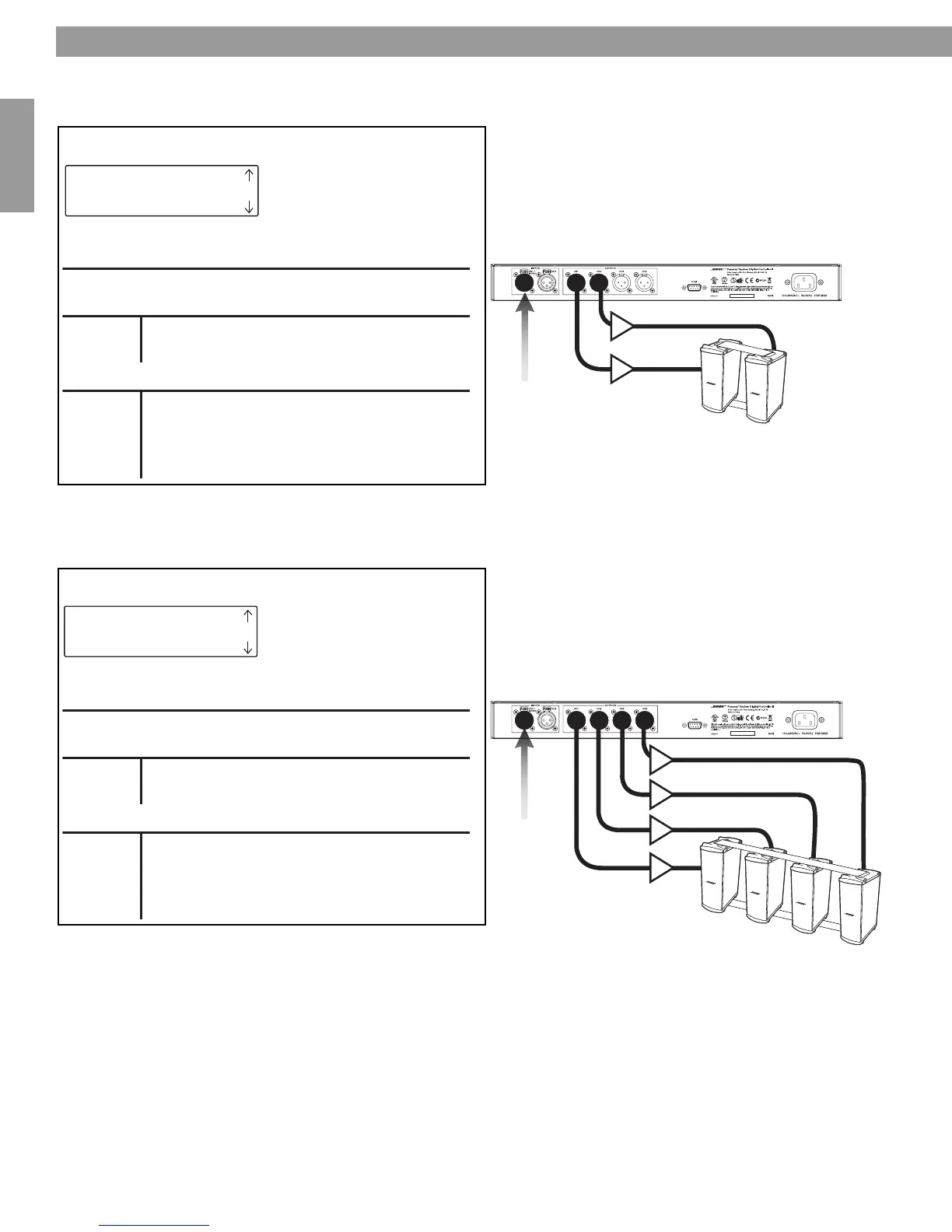

Example 1: 2x Endfire Array
PANARAY
®
System Digital Controller Display
Bass Array
MB4 2XEF180Hz
Mono from
mixer
Preset
Controller Inputs
Controller Default Output Routing
MB4 2X Endfire Bass Array
CH 1/Mono
CH 2
Mono from mixer
No input
Routing
Delay
Ch 1
MB4 (1)
Mono
On
Ch 2
MB4 (2)
Mono
On
Ch 3
N/A
Off
Ch 4
N/A
Off
Example 2: 4x Endfire Array
PANARAY
®
System Digital Controller Display
Bass Array
MB4 4XEF180Hz
Mono from
mixer
Preset
Controller Inputs
Controller Default Output Routing
MB4 2X Endfire Bass Array
CH 1/Mono
CH 2
Mono from mixer
No input
Routing
Delay
Ch 1
MB4 (1)
Mono
On
Ch 2
MB4 (2)
Mono
On
Ch 3
MB4 (3)
Mono
On
Ch 4
MB4 (4)
Mono
On
