Bose Panaray System Digital Controller II User Manual

1 2 3
8
4 5 6
7
1

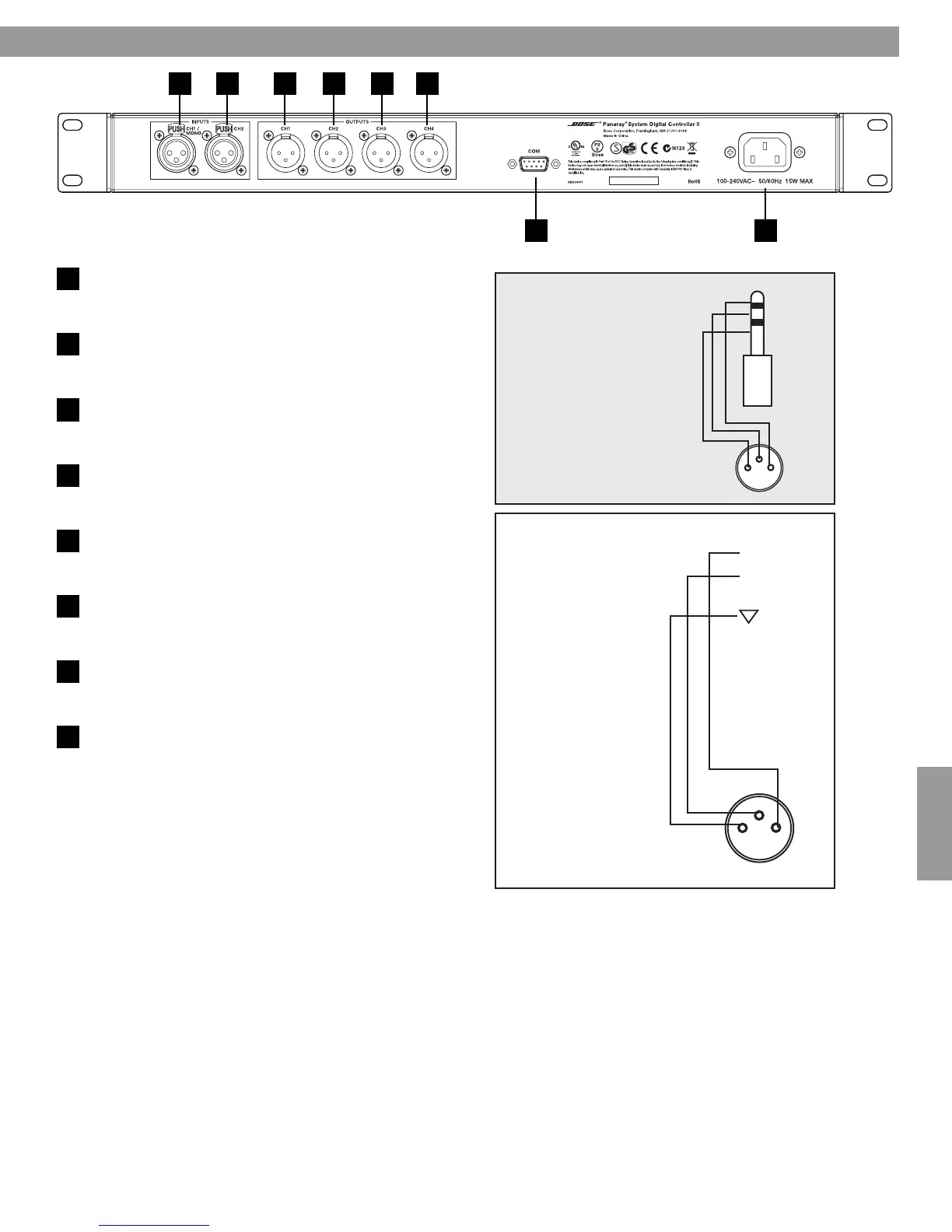

Pannello posteriore
5
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
INPUT Ch1/Mono:
Ingresso XLR bilanciato
2
INPUT Ch2:
Ingresso XLR bilanciato
3
OUTPUT Ch1:
Uscita XLR bilanciata
4
OUTPUT Ch2:
Uscita XLR bilanciata
5
OUTPUT Ch3:
Uscita XLR bilanciata
6
OUTPUT Ch4:
Uscita XLR bilanciata
7
COM:
RS232 - solo per aggiornamenti software
8
IEC Power:
Ingresso cavo di alimentazione IEC
XLR Wiring
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
+ Hot
TIP
RING
GND
- Cold
Ground
12
3
12
3
00_Panaray SDCII-Installation Guide.book Page 5 Wednesday, May 3, 2006 3:58 PM
