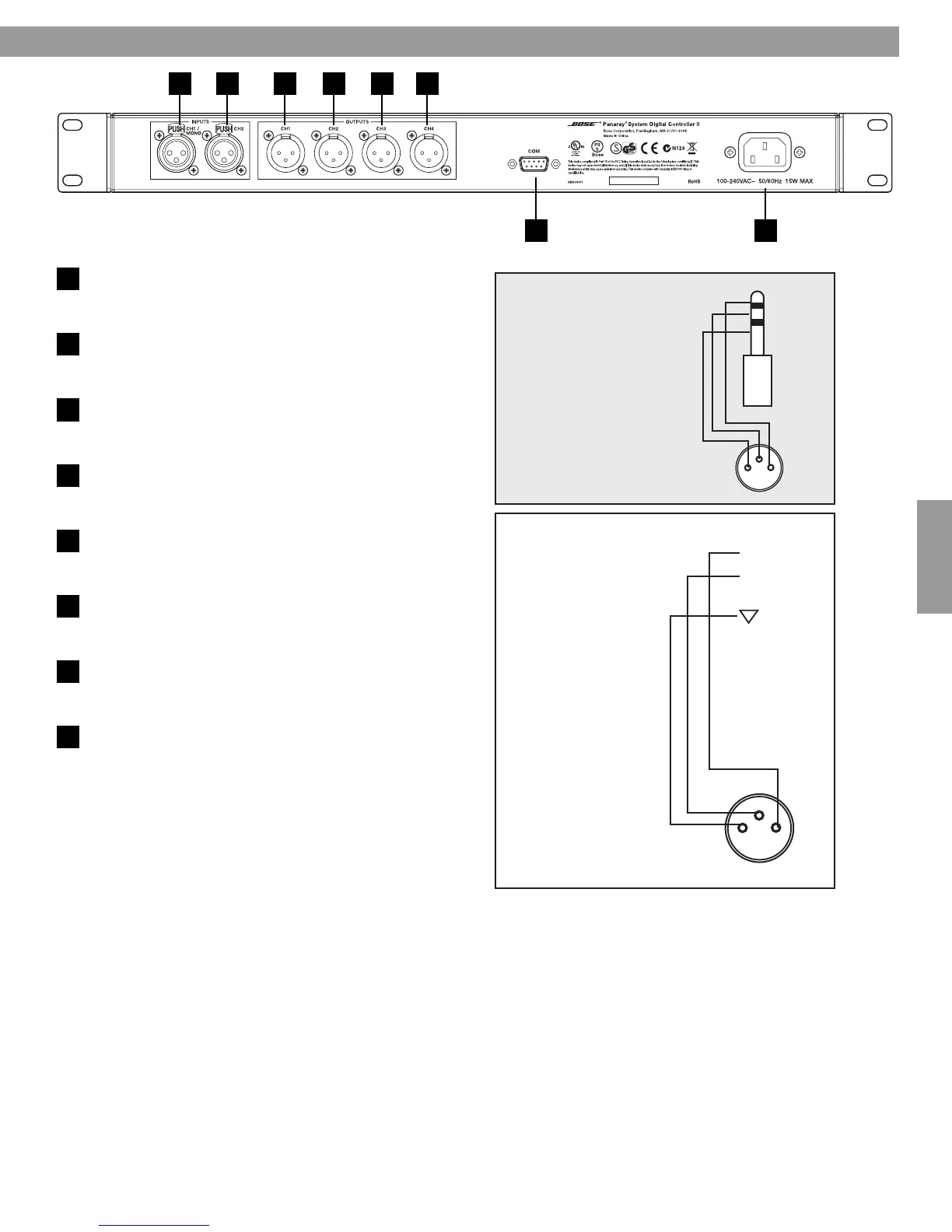

Panel trasero
5
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
INPUT Ch1/Mono:
Entrada XLR balanceada
2
INPUT Ch2:
Entrada XLR balanceada
3
OUTPUT Ch1:
Salida XLR balanceada
4
OUTPUT Ch2:
Salida XLR balanceada
5
OUTPUT Ch3:
Salida XLR balanceada
6
OUTPUT Ch4:
Salida XLR balanceada
7
COM:
RS232 - sólo para actualizaciones de software
8
IEC Power:
Entrada para cable de alimentación IEC
XLR Wiring
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
+ Hot
TIP
RING
GND
- Cold
Ground
12
3
12
3
