Mono Preset Bank: Presets designed for Mono operation

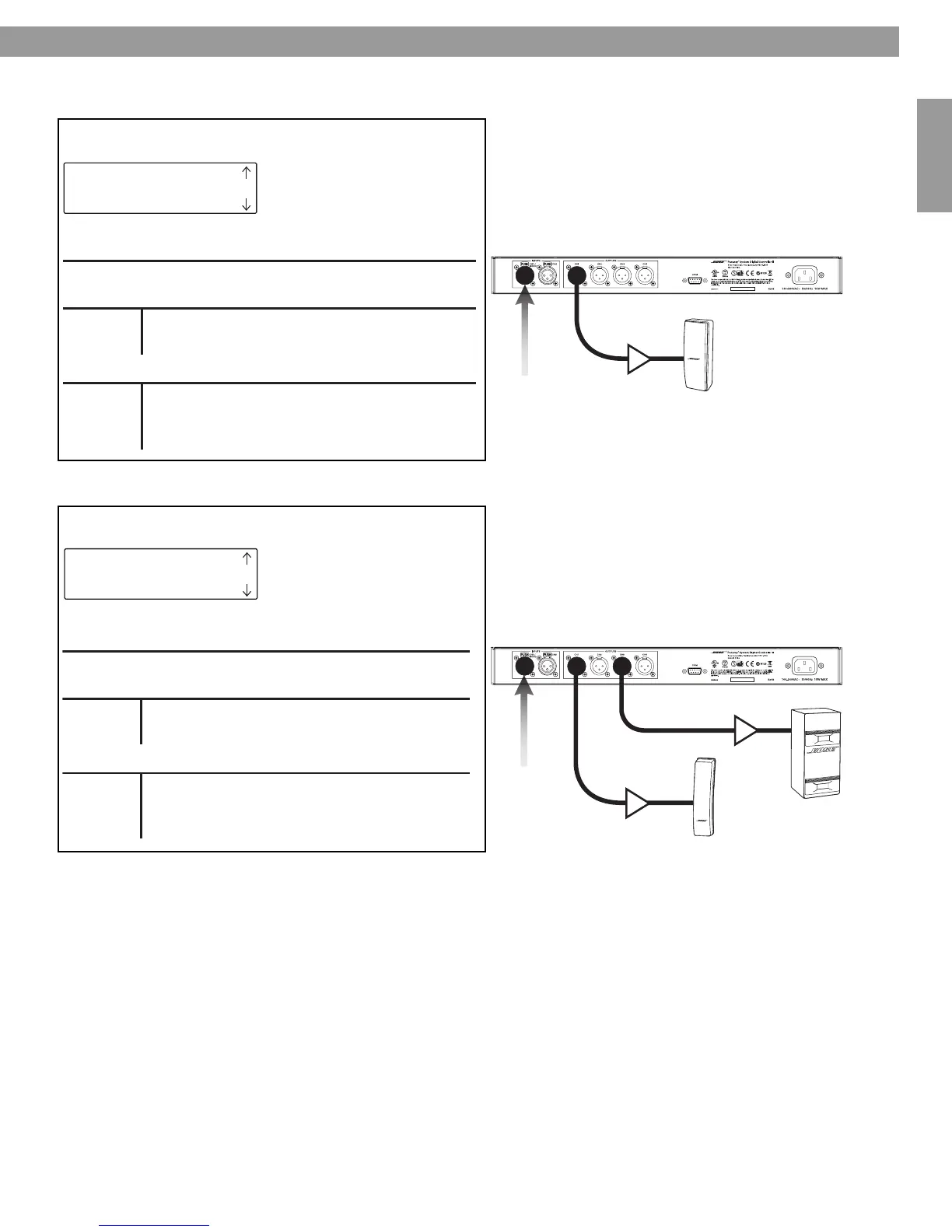

Example 1: Mono Full Range
PANARAY
®
System Digital Controller Display
Mono
402II
Mono from
mixer
Preset
Controller Inputs
Controller Default Output Routing
402
®
II Speaker Mono Full Range
CH 1/Mono
CH 2
Mono from mixer
No input
Routing
Ch 1
402-II Mono
(Full range)
Ch 2
402-II Mono
(Full range)
Ch 3
402-II Mono
(Full range)
Ch 4
402-II Mono
(Full range)
Example 2: Mono Mid-High Device with Mono Bass
®
®
®
PANARAY
®
System Digital Controller Display
Mono
502A+502B
Mono from
mixer
Preset
Controller Inputs
Controller Default Output Routing
502
®
A Speaker Mono with 502 Speaker Mono
CH 1/Mono
CH 2
Mono from mixer
No input
Routing
Ch 1
502A Mono
(High freq)
Ch 2
502A Mono
(High freq)
Ch 3
502B Mono
(Low freq)
Ch 4
502B Mono
(Low freq)
