Bose Panaray System Digital Controller II - Page 15

1 2 3
8
4 5 6
7
1

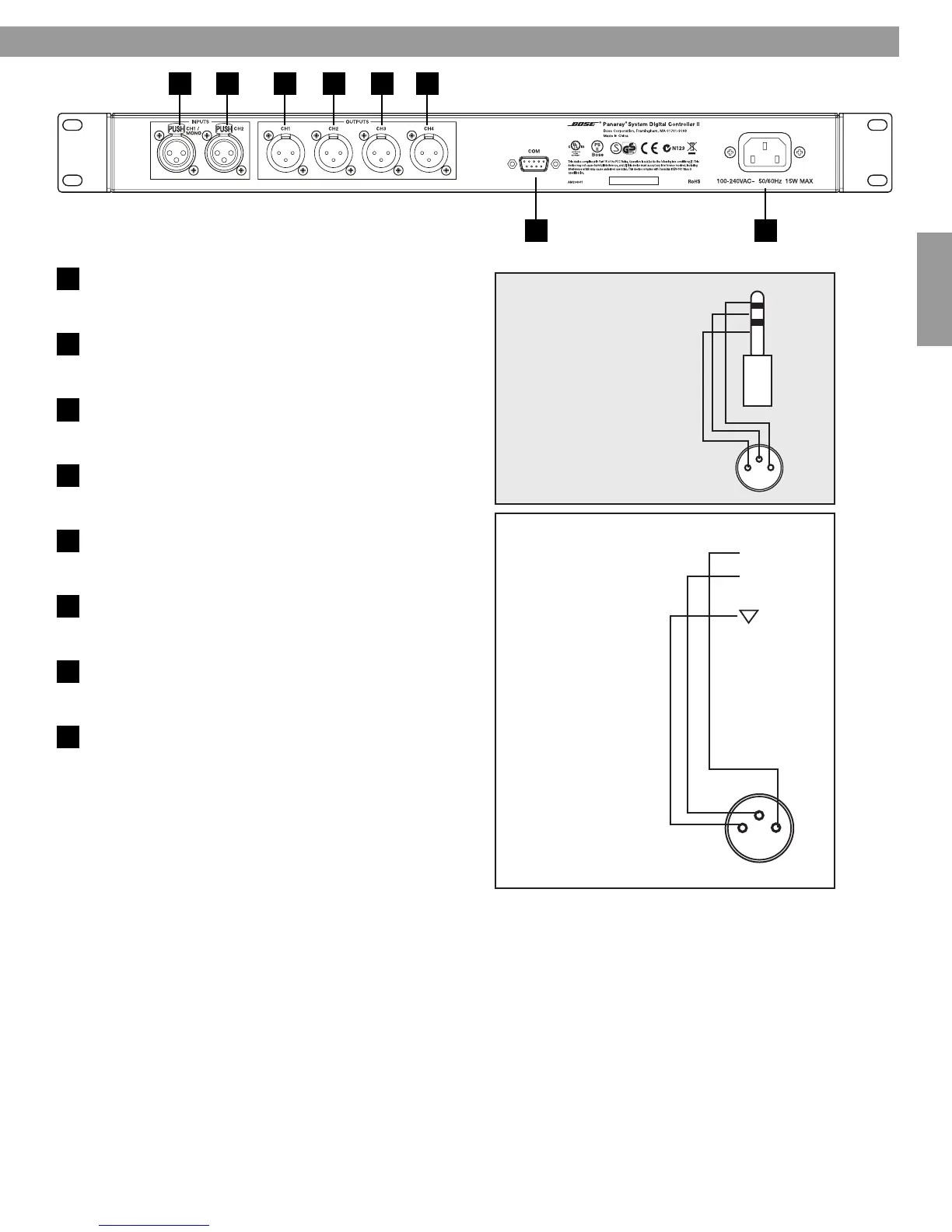

Bagpanel
5
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
INPUT Ch1/Mono:
Balanceret XLR-indgang
2
INPUT Ch2:
Balanceret XLR-indgang
3
OUTPUT Ch1:
Balanceret XLR-udgang
4
OUTPUT Ch2:
Balanceret XLR-udgang
5
OUTPUT Ch3:
Balanceret XLR-udgang
6
OUTPUT Ch4:
Balanceret XLR-udgang
7
COM:
RS232 - kun til softwareopdateringer
8
IEC Power:
Indgang til IEC-netledning
XLR Wiring
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
+ Hot
TIP
RING
GND
- Cold
Ground
12
3
12
3
