Bose Panaray System Digital Controller II User Manual

1 2 3
8
4 5 6
7
1

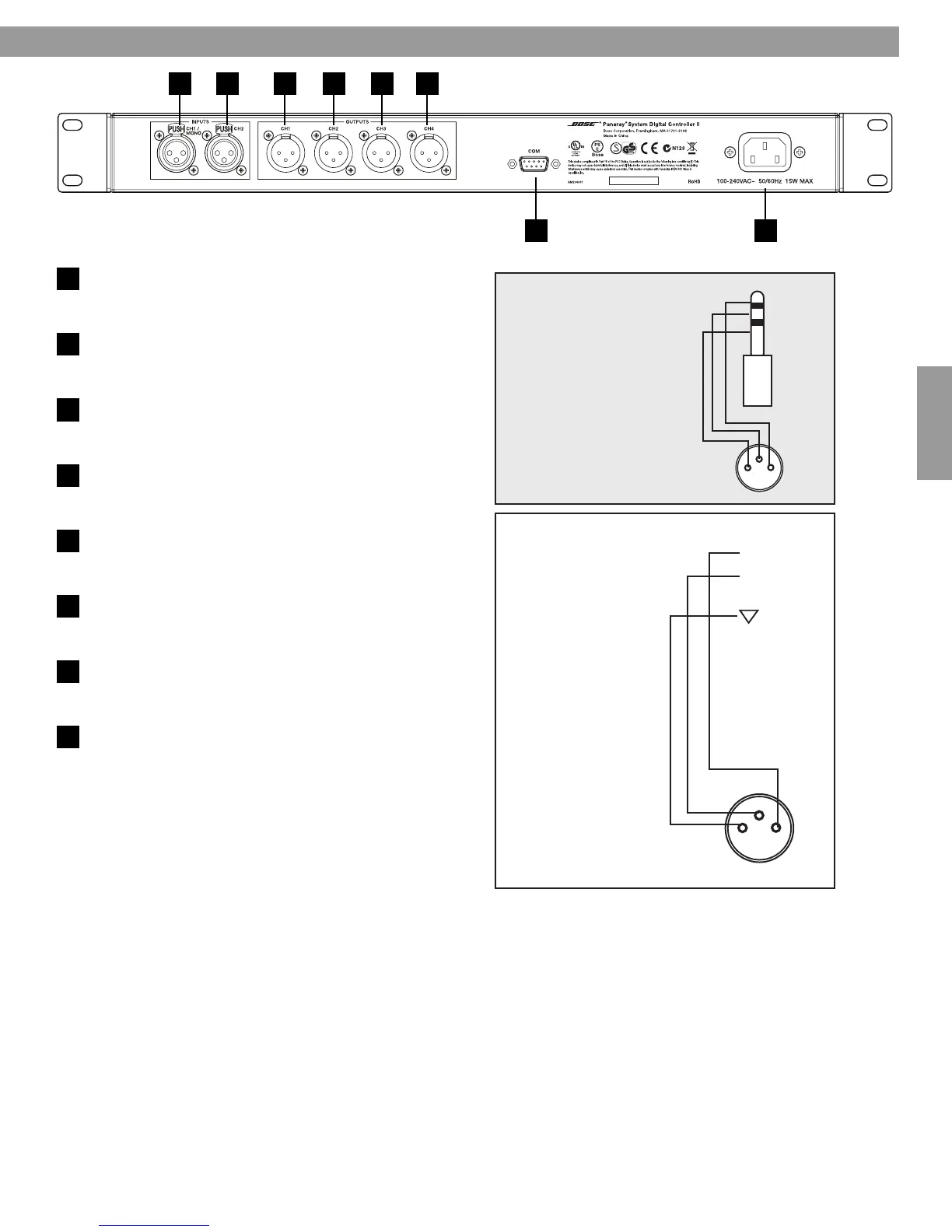

Rückwand
5
English Deutsch FrançaisDansk Español Italiano SvenskaNederlands
INPUT Ch1/Mono:
Symmetrischer XLR-Eingang
2
INPUT Ch2:
Symmetrischer XLR-Eingang
3
OUTPUT Ch1:
Symmetrischer XLR-Ausgang
4
OUTPUT Ch2:
Symmetrischer XLR-Ausgang
5
OUTPUT Ch3:
Symmetrischer XLR-Ausgang
6
OUTPUT Ch4:
Symmetrischer XLR-Ausgang
7
COM:
RS232 - nur für Software-Updates
8
IEC Power:
IEC-Netzkabeleingang
XLR Wiring
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
Jack (balanced) - XLR
Sleeve - Pin 1 (Ground)
Tip - Pin 2 (Hot)
Ring - Pin 3 (Cold)
+ Hot
TIP
RING
GND
- Cold
Ground
12
3
12
3
00_Panaray SDCII-Installation Guide.book Page 5 Wednesday, May 3, 2006 3:54 PM
