Bose SoundTouch SA-5 Owner's Manual

English - 11
Setting up the System
Connecting the speakers to the amplifier
After you place your speakers, connect the speaker wires to the amplifier. See
“Installation guidelines” on page 10.
Speaker wires consist of two insulated wires:
• The marked wire (stripes, ribbing or color) connects to the positive (+) terminal.
• The plain wire connects to the negative (–) terminal.
Connecting one pair of speakers
To connect two pairs of speakers, see page 13.
1. Make sure the amplifier is not plugged into an AC (mains) power source.
2. Remove a terminal block connector from the SPEAKERS OUT
connector.
3. Connect the speaker wires:
A. Insert the left speaker’s marked wire into the
+ L positive terminal and
the plain wire into the
L – negative terminal.
B. Insert the right speaker’s marked wire to the
+ R positive terminal
and the plain wire to the
R – negative terminal.

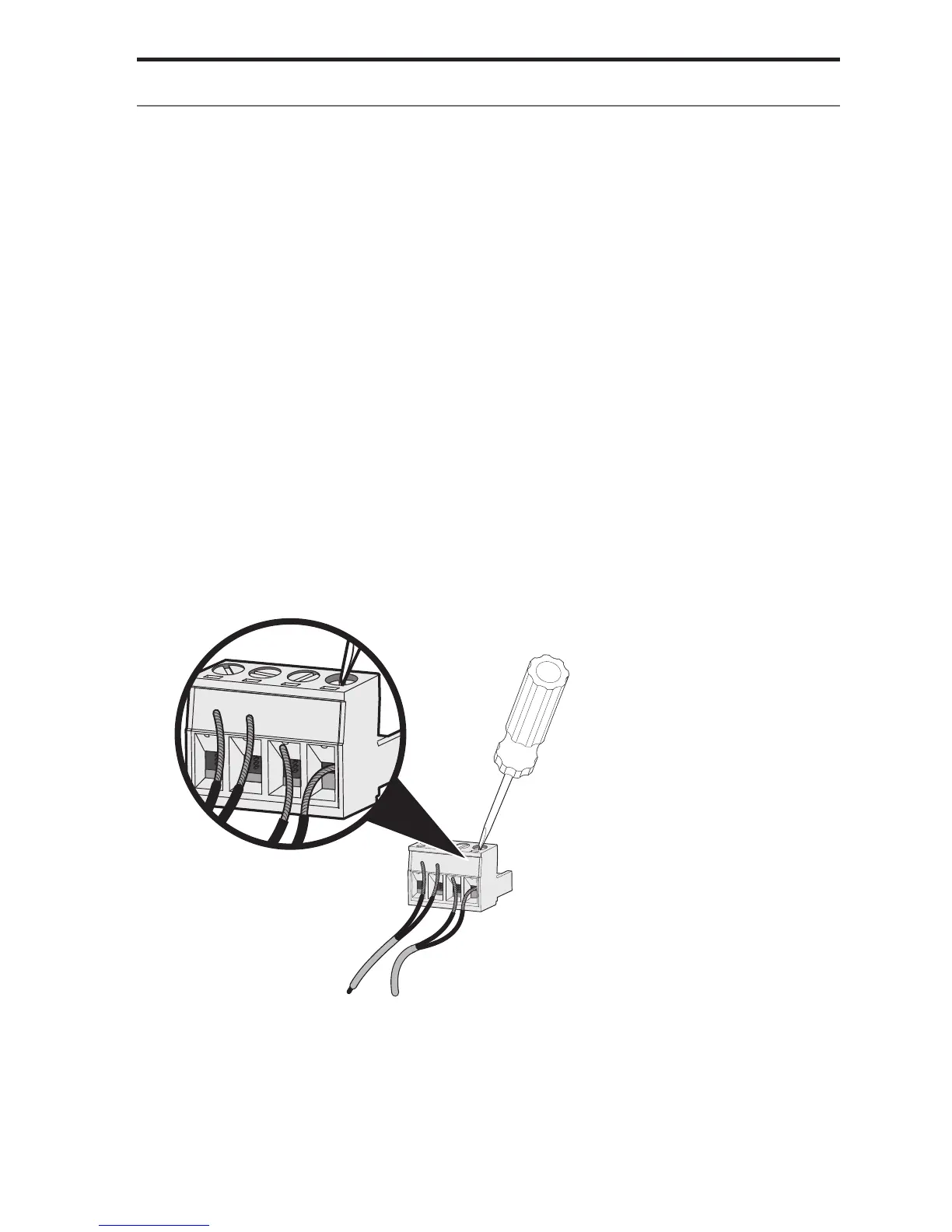

4. Secure the wires into the terminals using a small, flat-head screwdriver to
tighten the screws on the terminals

Bose SoundTouch SA-5 Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
AC (power) in	Yes
USB 2.0 ports quantity	1
Purpose	Home
Product color	Black
Connectivity technology	Wired & Wireless

Weight and Dimensions

Depth	300 mm
Width	184 mm
Height	77 mm
Weight	1500 g
