Bose SoundTouch SA-5 Owner's Manual

24 - English

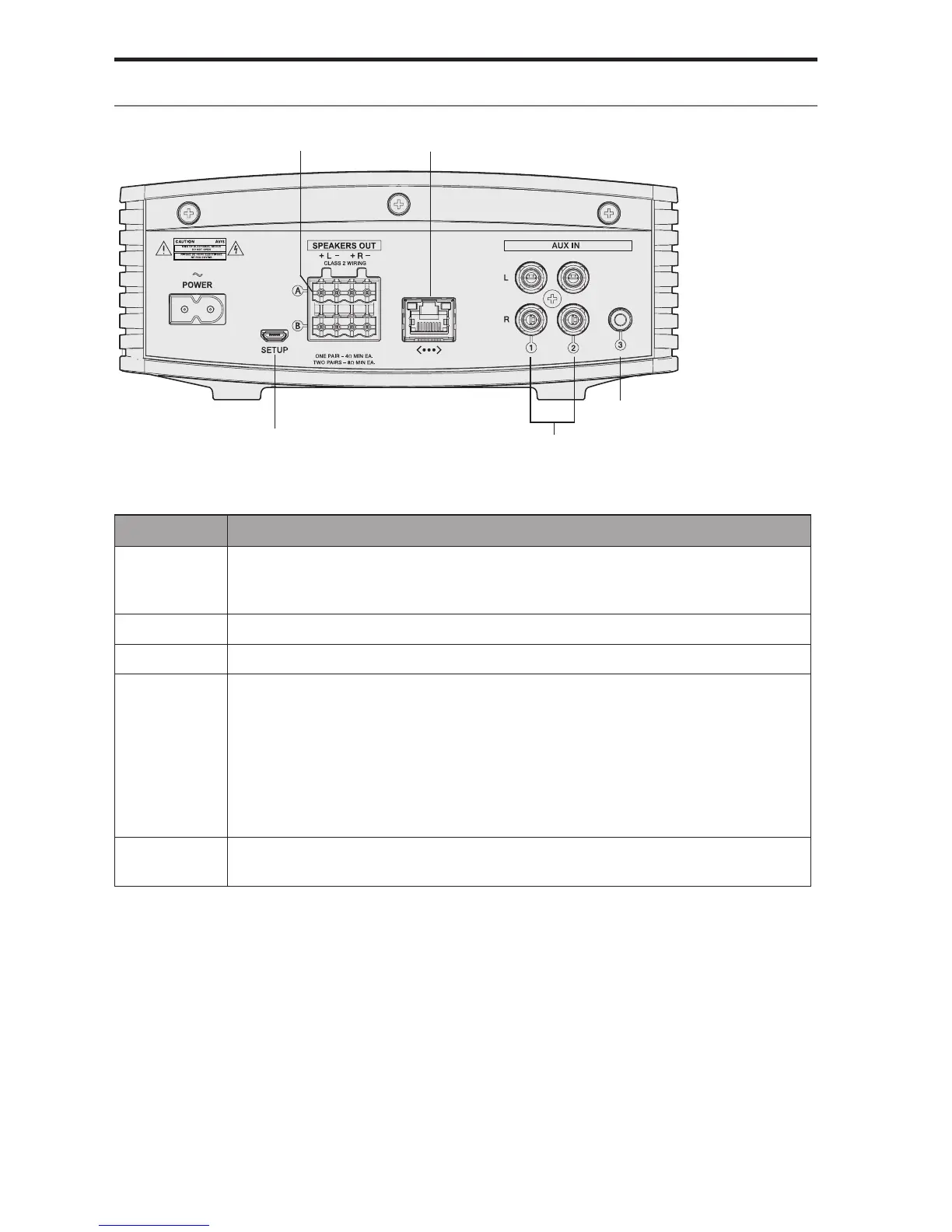

Appendix A: Connector Panel
Connectors
Computer setup
Terminal connectors
Ethernet
RCA stereo
connectors
3.5 mm
connector
Connector Description
POWER
AC power cord connector. Power is applied when the power cord is
inserted and plugged into an AC (mains) outlet. There is no on/off switch
on the SoundTouch
™
amplifier.
SETUP
USB connector for setup using a computer.
Ethernet
Ethernet connector enables wired access to your home network.
SPEAKERS
OUT
Two terminal block connectors enable you to connect two pairs
of speakers.
• Left and right speaker outputs.
• Connect only unpowered speakers.
• One pair of speakers requires 4 ohm minimum each.
• Two pairs of speakers require 8 ohm minimum each.
• To determine the correct speaker wire size, see page 10.
AUX IN
• Three AUX IN connectors enable playback from audio devices and
media players.

Bose SoundTouch SA-5 Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
AC (power) in	Yes
USB 2.0 ports quantity	1
Purpose	Home
Product color	Black
Connectivity technology	Wired & Wireless

Weight and Dimensions

Depth	300 mm
Width	184 mm
Height	77 mm
Weight	1500 g
