Appendix B : Wall Mounting Instructions
Attaching the amplifier to the mounting bracket
You can attach the amplifier to the bracket vertically or horizontally.
• Do not mount the amplifier on the ceiling.
• Do not mount the amplifier with the connector panel at the bottom.

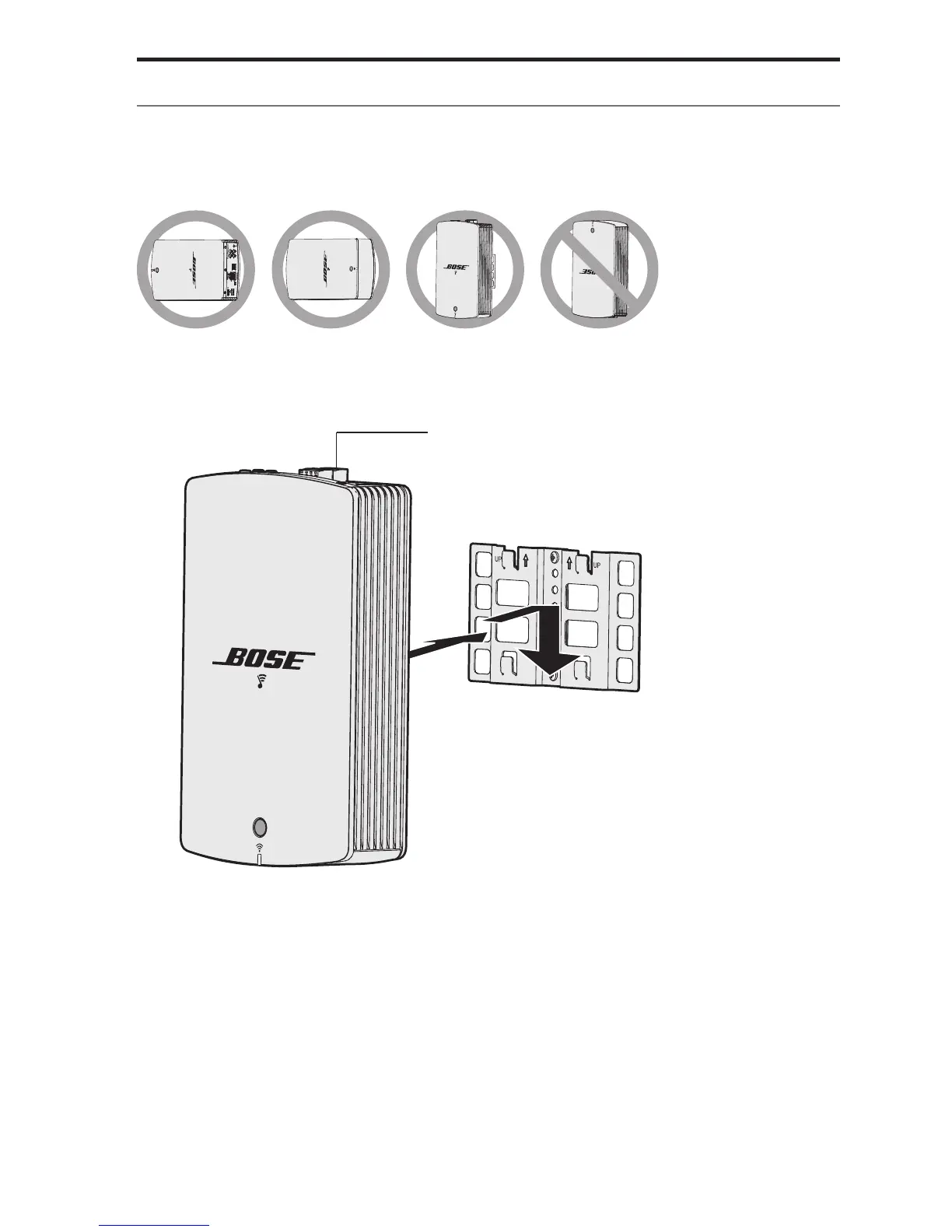

1. Align the four latches on the back of the amplifier with the bracket’s four tabs.
Tip: For vertical mounting, the connector panel must be on top.
Connector panel
2. Gently push the amplifier down onto the bracket’s tabs until the amplifier clicks
into place.
