5
Panel Descriptions

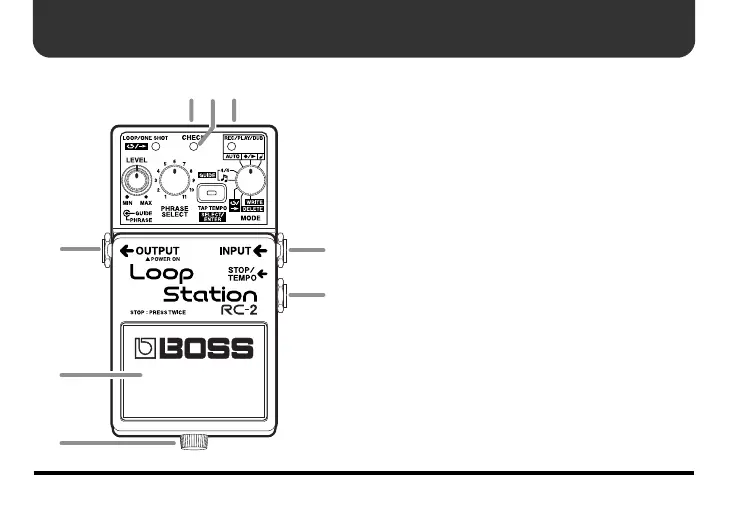

fig.01
1. AC Adaptor Jack
Accepts connection of an AC Adaptor (optionally available BOSS
PSA-series). By using an AC Adaptor, you can play without be-
ing concerned about how much battery power you have left.
* Use only the specified AC adaptor (PSA-series).
*
If there is a battery in the unit while an AC adaptor is being
used, the RC-2 will switch over to battery-powered operation
should the line voltage be interrupted (i.e., power blackout or
power cord disconnection).
2. CHECK Indicator
Use this indicator to check the battery.
*
If the indicator dims or fails to light, it means that the battery is
depleted and needs to be replaced. For instructions, refer to
“Changing the Battery” ; p. 38
.
3. AUX IN Jack
Connect a cable from here to the headphone jack of your CD
player or other digital audio player.
* The input to AUX IN is muted whenever a cable is
connected to the INPUT jack.
* With the factory settings, the RC-2 applies compensation to
the AUX IN signal so that it sounds appropriate when
played through a typical guitar amplifier. If you’re using the
RC-2 with a full-range speaker system, you can defeat this
compensation if desired (“Defeating AUX IN Compen-
sation” ; p. 22).
12
5
4
7
8
3
6
