28

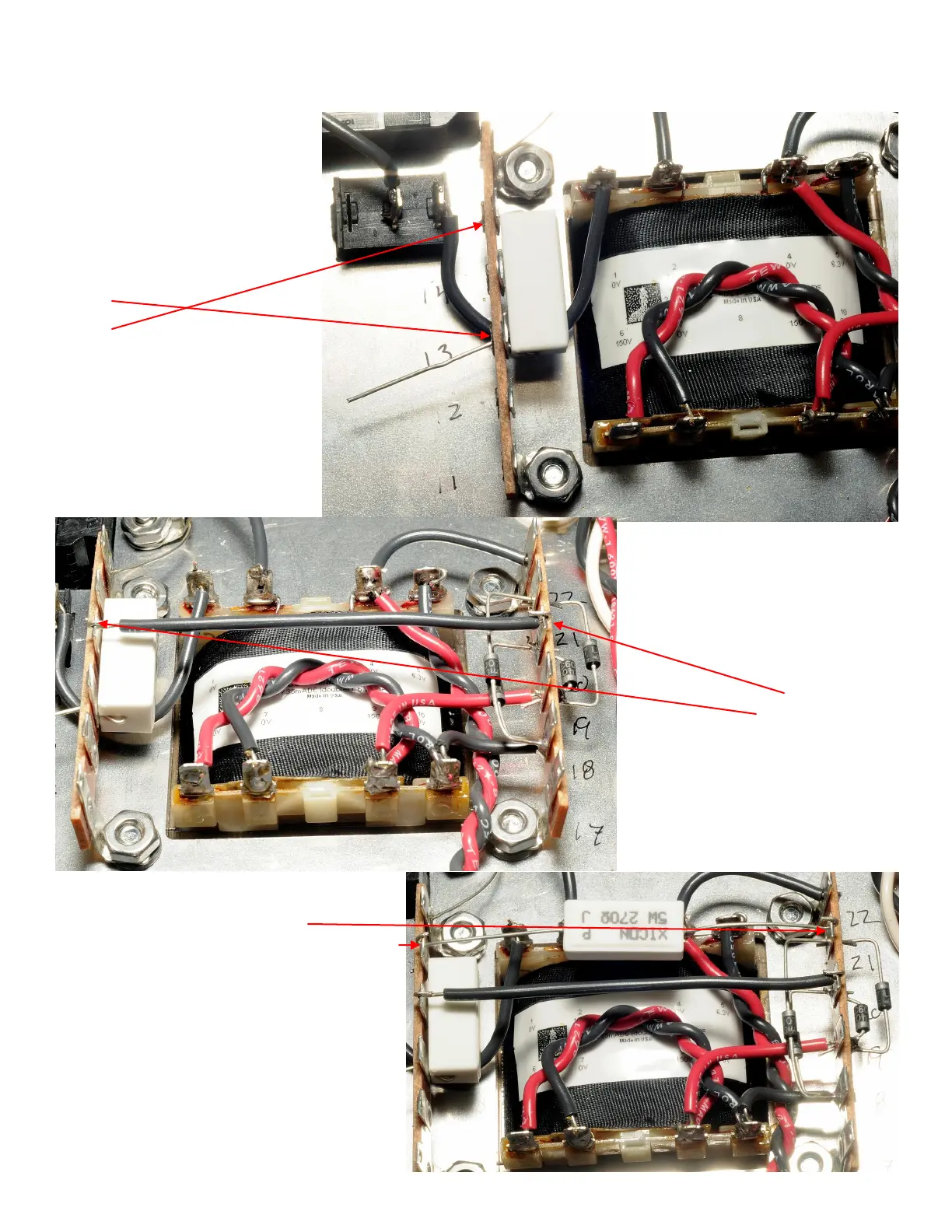

( ) Insert one lead of a 270
ohm 5W resistor into terminal
13L Insert the other lead into
15L. Solder 15L.Trim excess
leads.
( ) Cut piece of black wire
3/12” (87mm) long and strip
both ends back 1/4” (6mm).
Attach one end to 20U. Attach
the other end to 14U.
( ) Attach one end of a second 270 ohm
5W resistor to terminal 21U. Attach the
other end of the resistor to terminal 15U.
