BÖWE M18 - Page 70

62
M12/M15/M18

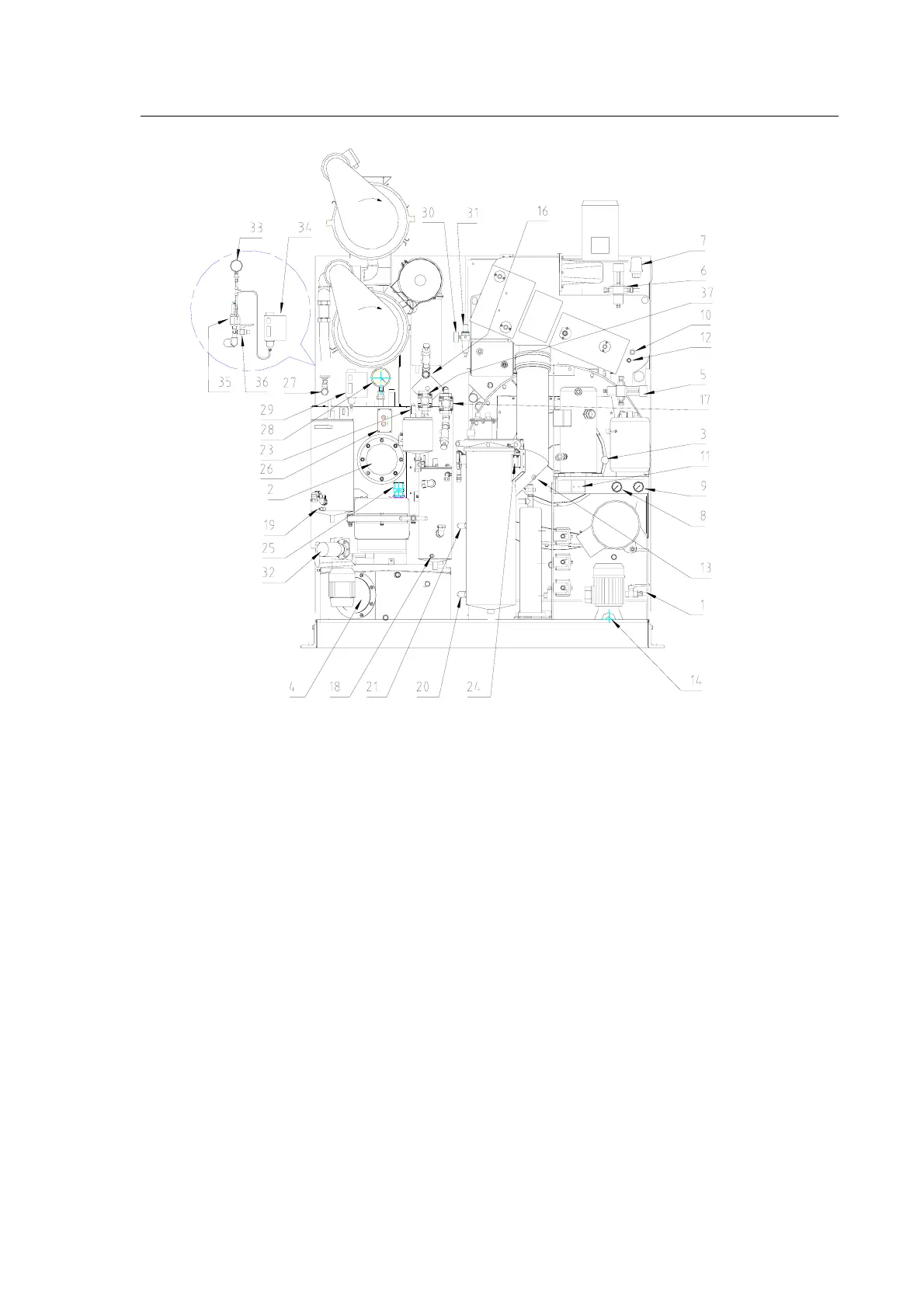

10. Operating and Monitoring Systems 10.
Crossline
707766-16-A
1 Solvent filling valve 20 Sensor, low level
2 Sight-glass, still 21 Sensor, high level
3 Sight-glass, refrigeration unit (22)
Overfill sensor, distillation
4
Sight-glass, tank 3
23
Overfill sensor, level sensor, flash tank
5
Cooling water regulator, refrigeration unit
24
Limit switch, button trap
6
Cooling water regulator, distillation
25
Limit switch, still
7 Low cooling water level switch 26
Lamps green - red
8
Low pressure gauge (refrigerating)
27
Manual valve, distillation steam
9
High pressure gauge (refrigerating)
28
Vacuum pressure gauge
10
Safety temperature limiter after cooler
29
Vacuum control switch, distillation
11 High and low pressure controls, refrigeration unit 30
Pressure gauge, compressed air
12 Thermal sensor, aftercooler 31
Low air pressure switch
13 Thermal sensor, cage housing outlet
32 Heating element, overheating protection (elec)
14 Thermal sensor, solvent
33 Pressure gauge, steam pressure (elec)
(15
)
Thermal sensor, distillation 34 Pressure control switch,steam chest (elec)
16 Thermal sensor, distillation condenser
35
Safety valve, steam heater (elec)
17 Drying time controller 36
Aeration valve, steam heater (elec)
18
Sensor, water-sensitive water separator
37
Sight-glass, distillation
19 Sensor, water-sensitive extraction tank
- Overfill sensor, waste disposal barrel
