10. Operating and Monitoring Systems 10.
Crossline
707766-17-A

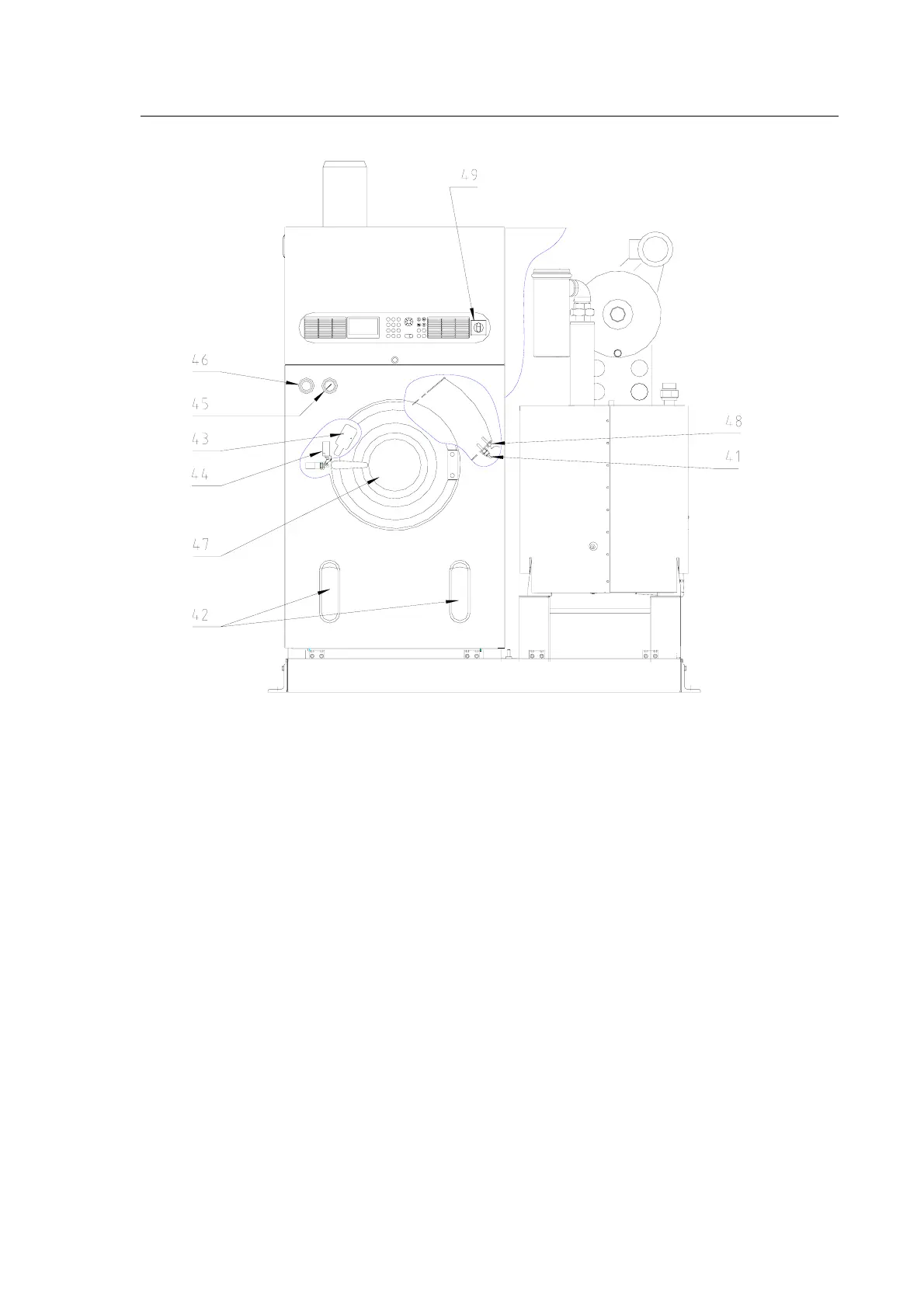

41 Thermal sensor, cage housing inlet
42 Sight-glasses, tanks 1 + 2
43 Limit switch, loading door
44 Limit switch, loading door locking
45 Filter pressure gauge, Economy filter 1
46 Sight-glass, filter circuit
47 Loading door window
48 Safety temperature limiter, cage air inlet
49 Main switch
