Bowflex Max Trainer M6 - Assembly Step 7: Connect Cables and Console; Cable and Console Connection

Assembly / Owner’s Manual
15

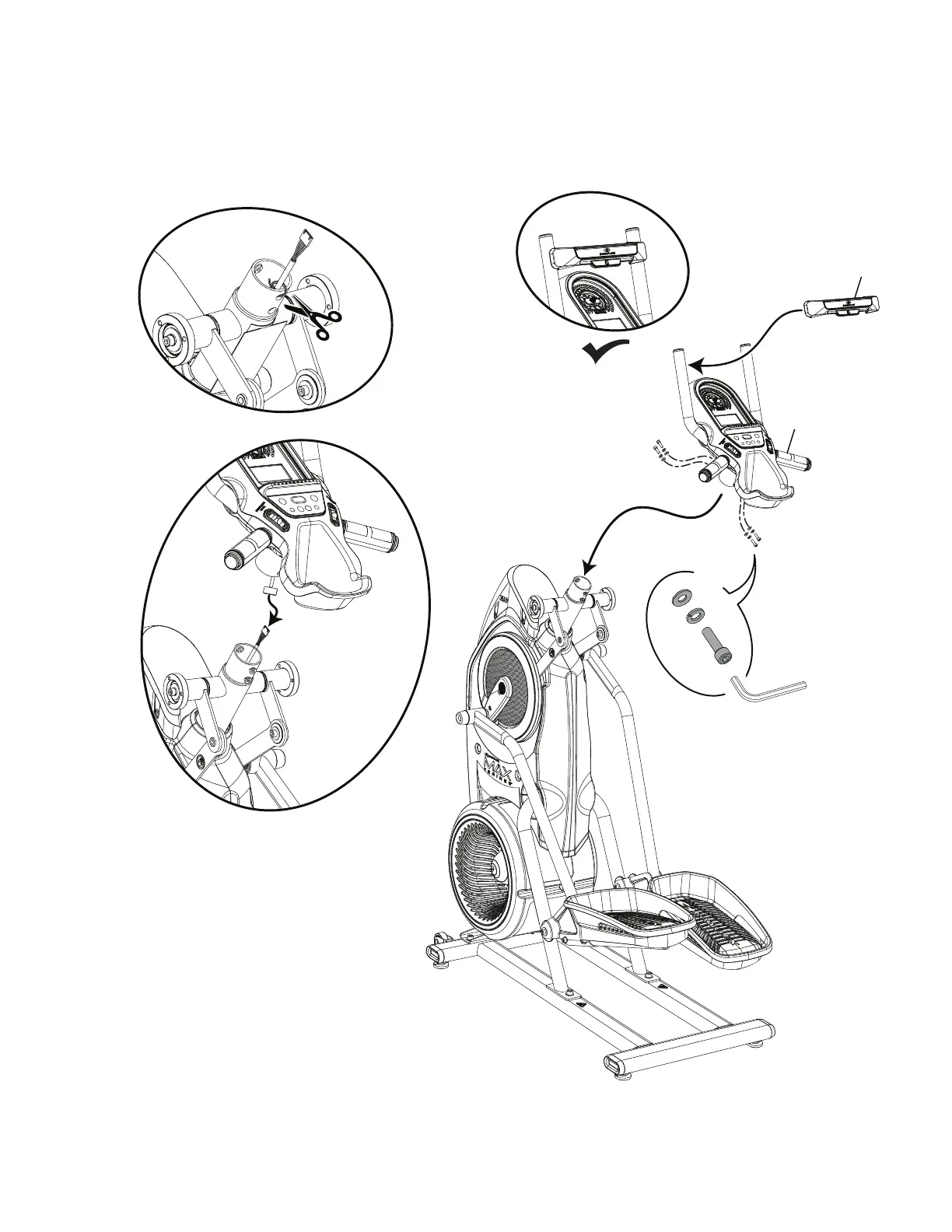

7. Cut the Shipping Zip-Tie that Secures the Cables, Connect the Cables, and Attach the Console Assem-
bly and Media Capture Bar
NOTICE: Do not let the Cables drop into the Frame Assembly. Do not cut or crimp the Console Cables.
6
5mm
X4
P
O
N
16
