Bowflex Max Trainer M6 - Parts Identification; Component Breakdown

Assembly / Owner’s Manual
7
$GHFDOKDVEHHQDSSOLHGWRDOOULJKW³5´DQGOHIW³/´SDUWVWRDVVLVWZLWKDVVHPEO\
Item Qty Description Item Qty Description
 1 Console Assembly (w/Aerobars) 12 2 Cap
7 1 Dynamic Handlebar, Left 13 1 Dynamic Handlebar, Right
8 2 Leg 14 1 AC Adapter
9 2 Pedal 15 1 Manual Kit
10 1 Stabilizer Assembly  1 Media Capture Bar
11 1 Rail Assembly
( 2 Boxes )
Box 1
Item Qty Description
1 1 Frame
2 1 Shroud, Rear
3 2 Foot Platform
4 2 Foot Pad
5 1 Hardware Card
Box 2

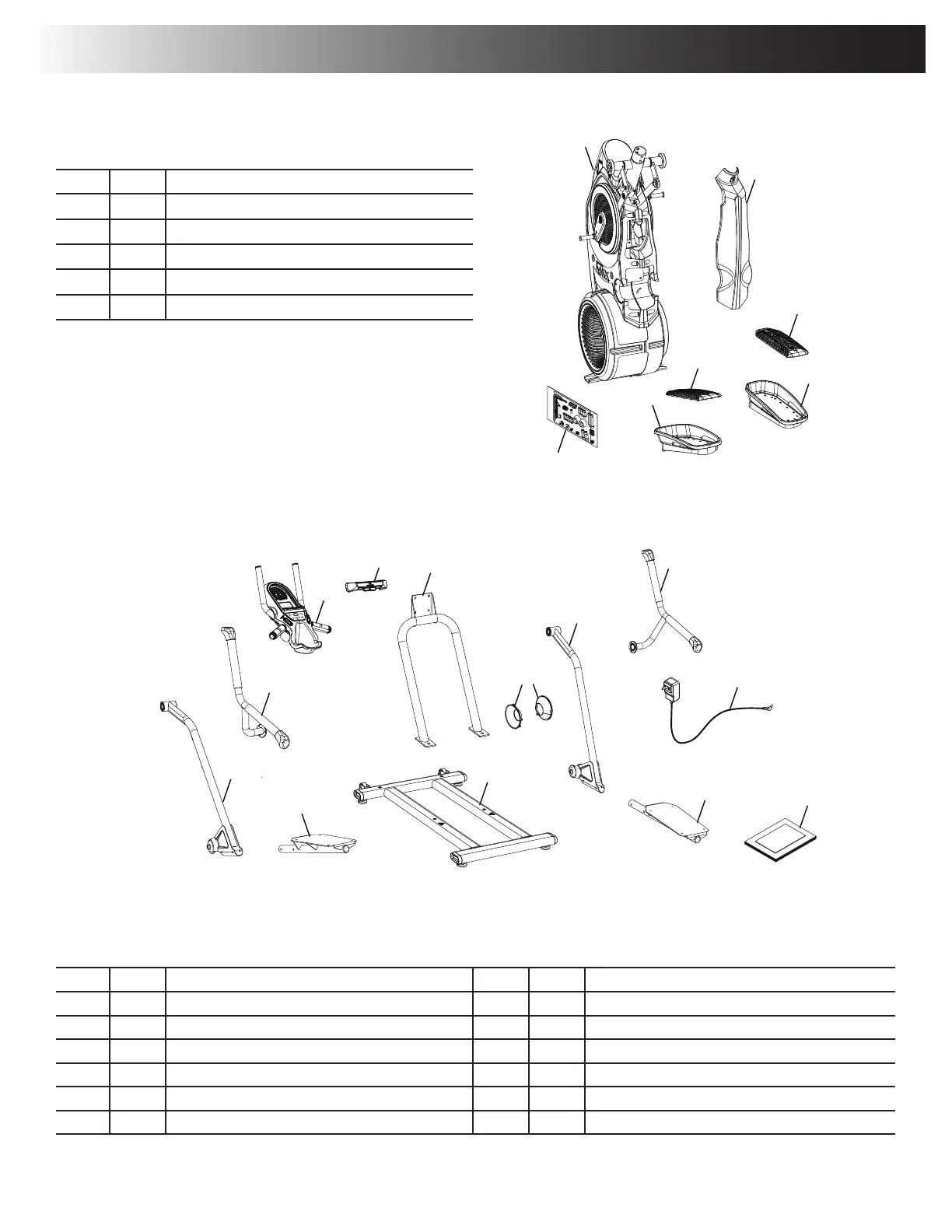

Parts
6
11
7
10
12
8
13
8
9
9
14
15
16
3
2
3
4
1
5
4
