Assembling Your Bowflex Ultimate
®
2

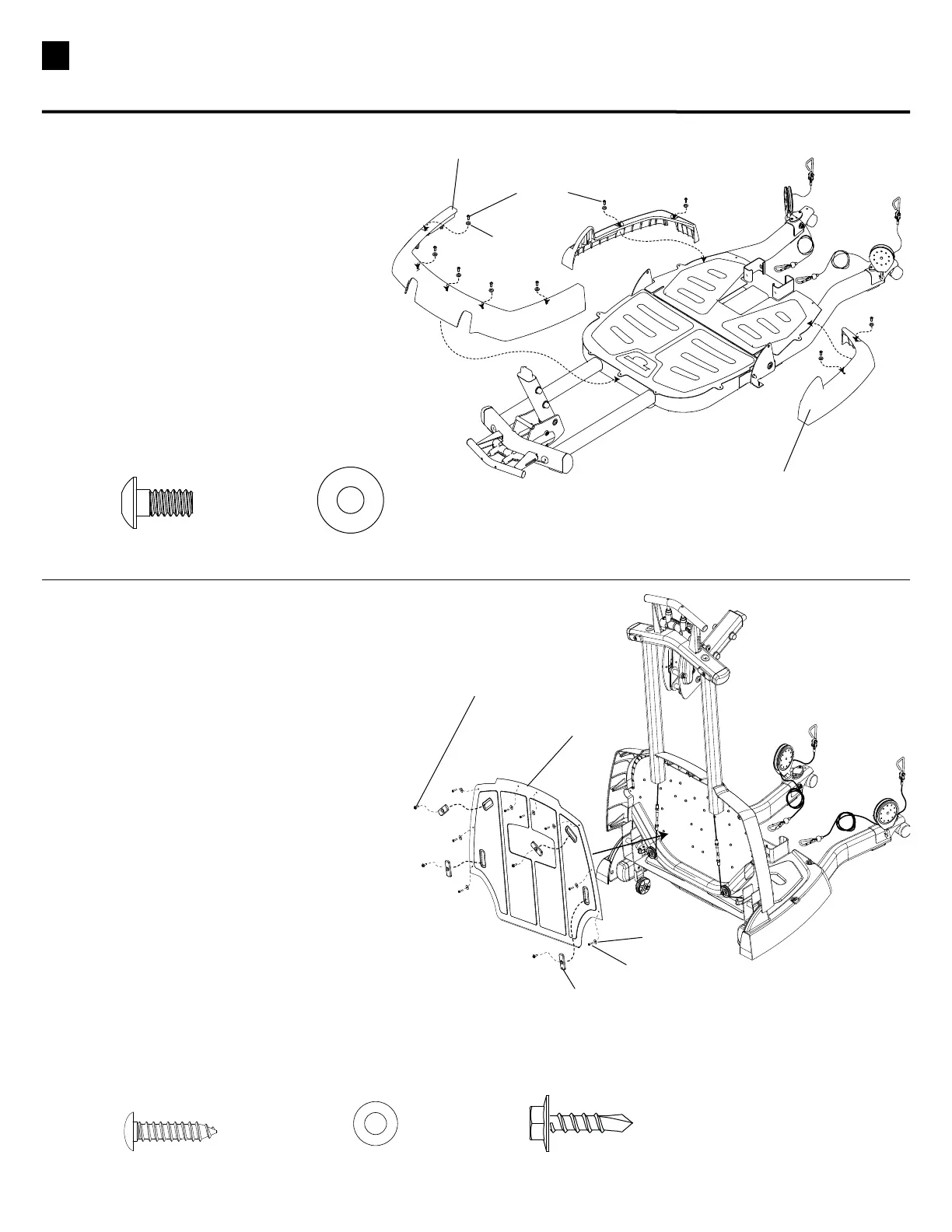

STEP 4
Parts:
 •BaseAssembly(from step 3)
 •Front&RearPlasticBaseCovers(Box2)
Tool:
 •HexKey(7/32”)
4-1 PositionPlasticCoversonFrontand
RearBasePlatforms.
4-2 Installandcompletelytightenthehardware.
9 Pan Head Allen Bolt (1/4” X 1/2”)
9 Washers (1/4”)
Hardware (1:1):
Pan Head Allen Bolt
Washer
Rear Plastic Cover
STEP 5
Parts:
 •BaseAssembly
 •FrontBasePlate(Box3)
 •FrontBaseFeet(4)(Box5)
Tools:
 •Wrench(5/16”) •PhillipsHeadScrewdriver
5-1 Foldthefrontbaseassemblyintothe
upright position.
5-2 PositiontheBasePlateandsecurewith
eightPhillipsHeadScrewsandWashers.
5-3 PositionthefourBaseFeetandsecurewith
HexWasherHeadScrews.Do not over tighten.
Feet could crack with excess pressure!
5-4 CompletelytightentheBasePlatehardware.
Hardware (1:1):
Front Base Plate
Phillips Head Screw
Hex Washer Head Screw
Front Base Foot
Washer
8 Self Tapping Screws (#8 X 3/4”) 8 Washers (#8 ) 4 Coach Screws (#10 X 3/4”)
Front Plastic Cover
