Assembling Your Bowflex Ultimate
®
2

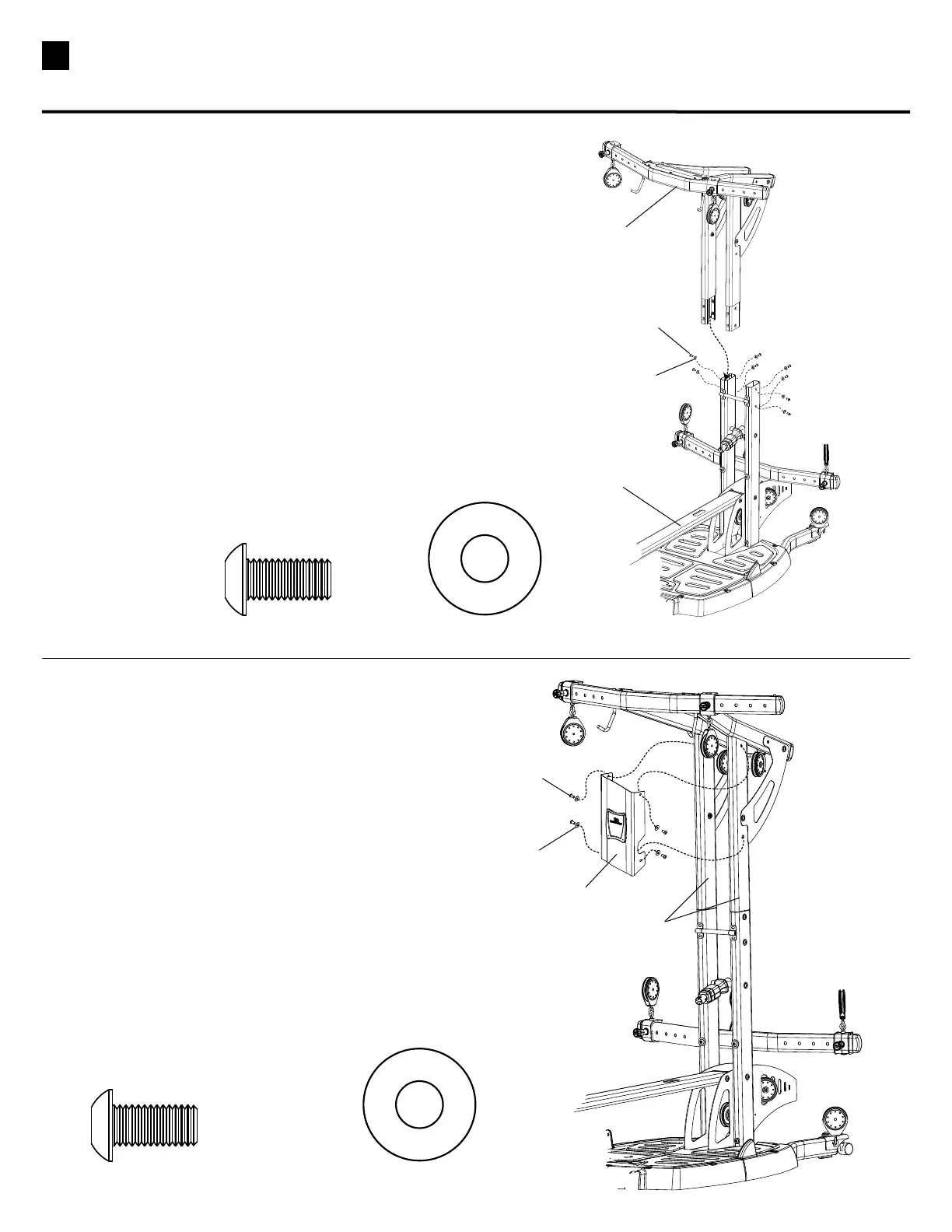

STEP 17 – Upper Assembly is very heavy!
Use two people for this step!
Parts:
 •UpperLatAssembly(from step 16)
 •BaseAssembly(from step 11)
Tool:
 •HexKey(7/32”)
17-1 InsertUpperLatUprightsintoLowerLatUprights.
17-2 Installandcompletelytightenthehardware.
Hardware (1:1):
Upper Lat Assembly
Base Assembly
8 Pan Head Allen Bolt (3/8” X 3/4”) 8 Washers (3/8”)
STEP 18
Parts:
 •FrontFacePlate(Box6)
 •AssembledUnit(from step 17)
Tool:
 •HexKey(7/32”)
18-1 AlignholesinFacePlateandUprights.
18-2 Installandcompletelytightenhardware.
Hardware (1:1):
4 Pan Head Allen Bolt (3/8” X 3/4”) 4 Washers (3/8”)
Pan Head Allen
Bolt
Washer
Lat Tower Uprights
Pan Head Allen
Bolt
Washer
Front Face Plate
(Rod Pack Not Shown
For Clarity)
(Rod Pack Not Shown
For Clarity)
